MAGNETIC PERMANENT EQUIPMENT

Permanent magnetic equipment represents a consolidated technical solution for magnetic clamping, precision positioning and handling of ferromagnetic components in modern production environments. In mechanical workshops, metal fabrication, grinding departments, CNC machining and quality control areas, industrial permanent magnetism ensures a constant holding force without the need for electrical power, guaranteeing operational continuity even during power outages.

Permanent magnetic clamping systems distribute forces uniformly across the entire workpiece surface, limiting localized deformation, vibration and micro-movements. This improves dimensional accuracy, surface finish quality and machining stability while reducing setup time compared to traditional mechanical clamping systems using vises or fixtures.

Measurement and Inspection

In measurement and inspection applications, component stability is essential to ensure reliable dimensional results. Permanent magnetic systems dedicated to quality control stabilize the workpiece during dimensional verification, comparator checks and preparation for machining, reducing the need for bulky mechanical fixtures.

Magnetic prisms with double “V” and 90° grooves, available individually or in matched pairs, allow repeatable positioning of cylindrical or prismatic components while keeping the part firmly in place without introducing unwanted stress. Uniform magnetic holding force improves measurement repeatability and reliability on inspection benches and machine tools.

Grinding

In precision grinding operations, permanent magnetic clamping systems provide homogeneous holding across the entire workpiece surface, eliminating mechanical obstructions and allowing full tool access. Fine-pitch permanent magnetic chucks with NdFeB (Neodymium Iron Boron) magnets are particularly effective on thin or compact parts due to the uniform magnetic field distribution.

The range includes rectangular and circular permanent magnetic chucks, magnetic vises for small components, magnetic transfer parallels in steel and brass to channel the magnetic field to the working area, tilting magnetic chucks with ferrite magnets for controlled angular setups and double-magnet systems used in milling, grinding and sinker EDM applications. Sine tables with integrated permanent magnetic chuck enable high-precision angular machining, while circular magnetic chucks with NdFeB, Alnico or ferrite magnets address different rotational applications. The grinding sector is completed by the 45° laminated magnetic block and matched laminated block pairs with “V” grooves, designed for stable support and orientation of the workpiece.

The use of permanent magnetic clamping in grinding enables tight tolerances, reduced vibration and superior surface finish in automotive, aerospace, mold-making and precision engineering industries.

Welding

In metal fabrication and welding preparation, proper alignment before joining operations is critical for final quality. Permanent magnetic systems dedicated to welding accelerate positioning and improve assembly repeatability.

The magnetic holder with three magnetic V-surfaces provides stable clamping on multiple sides during joint preparation. The round magnetic holder is suitable for quick jigs and fixtures, while the magnetic ball support for toolmakers offers flexible multi-directional positioning. Multi-purpose permanent magnetic positioners facilitate angle welding while maintaining correct alignment, magnetic welding grounds ensure continuous electrical contact and the magnetic square with ferrite magnets maintains controlled angles on sheets and tubes.

The integration of permanent magnetic welding tools reduces preparation time, improves ergonomics and enhances geometric precision in fabricated structures.

Lifting - Positioning

For industrial material handling, permanent magnet technology offers a safe and efficient solution. Permanent magnetic lifting systems enable stable handling of steel plates, sheets and ferrous components without electrical power supply.

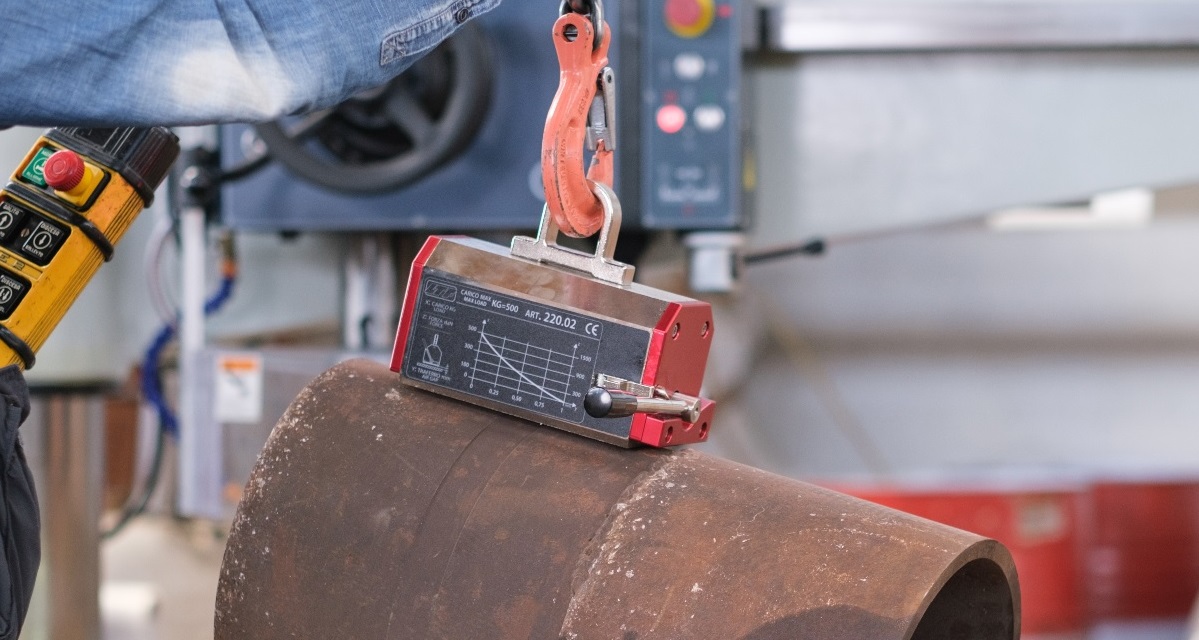

The manual permanent magnetic lifter with NdFeB magnets and the beam-type permanent magnetic lifter ensure balanced load distribution and reduced surface damage risk. The magnetic sheet gripper simplifies handling of thin plates, while the magnetic separator pair allows separation of stacked steel sheets. The magnetic handle and industrial magnetic sweeper improve workplace safety by collecting ferrous debris. The magnetic manhole cover lifter simplifies maintenance operations and the vertical plate handling bracket supports controlled vertical lifting of steel plates.

Industrial permanent magnetic lifting solutions reduce operating time, eliminate complex chain or hook systems and enhance safety in internal logistics processes.
