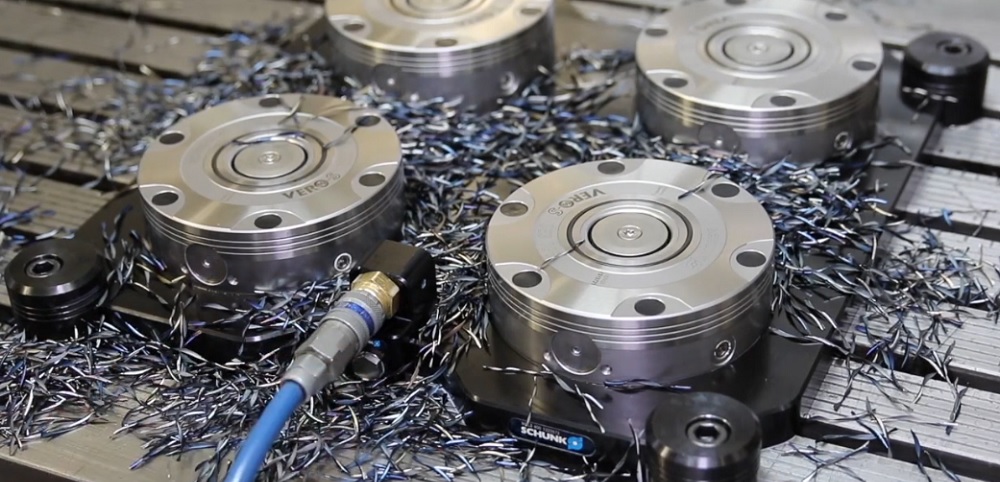

Clamping plate

SCHUNK clamping plates, available in various configurations, enable users to select the ideal solution for their needs with Tadaah’s expert technical support, which provides tailored advice to match each application with the perfect plate. The single-module version, designed for pallet loading/unloading, features 2-way or 4-way anti-rotation clamping to ensure precise pallet alignment during machine fixation. The Turbo variant boosts the clamping pin’s tensile force by up to 3.5 times, delivering rock-solid retention of tools or workpieces during machining. Pin activation relies on 6-bar compressed air, while the Turbo version uses a secondary air channel (also at 6 bar) to lock the pin securely.

For multi-module plates, Tadaah’s team guides customers in selecting between clamping force (Turbo option) and footprint dimensions, recommending optimal setups for vises and self-centering devices. High-force pins simultaneously secure tools and workpieces during operations. With Tadaah’s guidance, the system’s Industry 4.0 integration becomes a turnkey solution: robotic automation handles fixture mounting on machining centers (3, 4, or 5-axis), workpiece loading/unloading, and tool assembly, ensuring unmatched precision and throughput.
