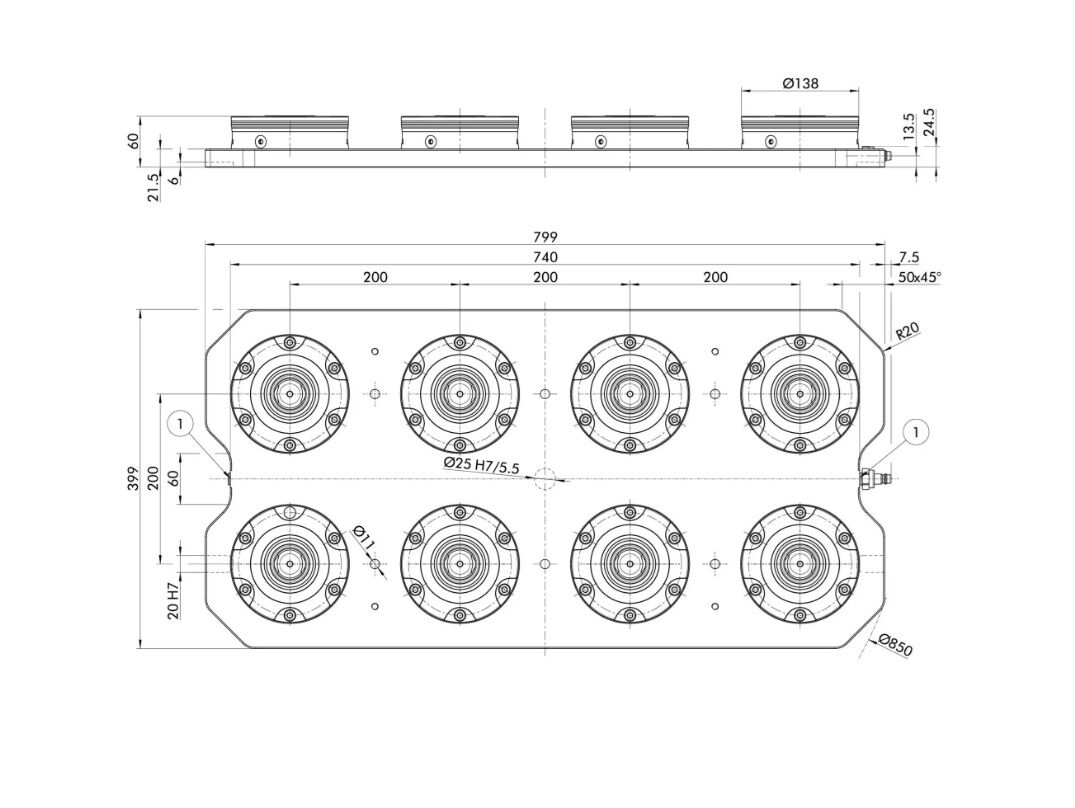

Point legend according to drawing image:

1) G1/8 air connection, open module

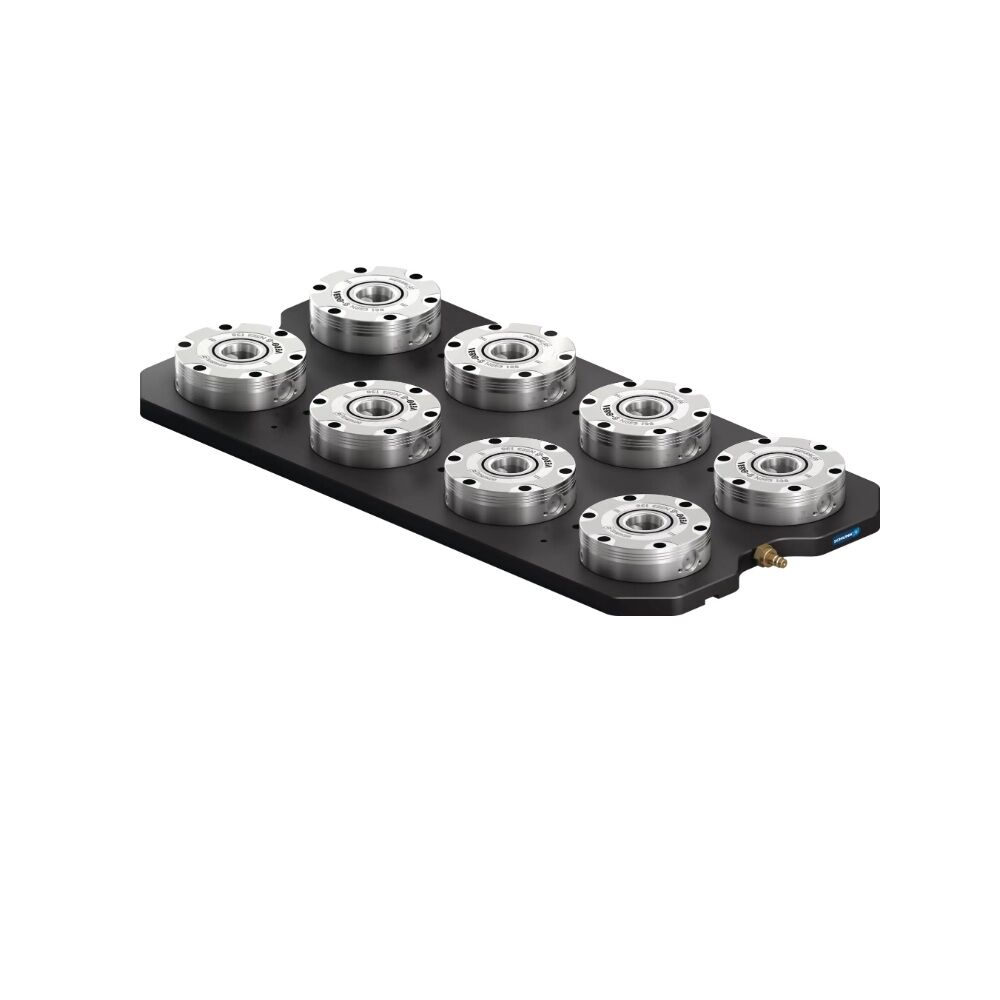

The SCHUNK NSL3 800 standard clamping plate represents the premium solution for industrial applications demanding extreme performance. Measuring 799×399×60 mm and weighing 73.2 kg, this heavy-duty unit delivers an exceptional 64 kN clamping force, making it ideal for securing the heaviest and bulkiest loads with absolute reliability.

The system combines a spring mechanism with 6 bar pneumatic activation for quick, precise pin release. The 8-way anti-rotation protection provides maximum alignment control, ensuring complete stability in all directions - even during the most demanding operations.

Engineered for versatility, the plate functions equally well as either a standalone module or in multi-plate configurations. The ability to combine multiple units enables custom solutions for specialized fixtures like self-centering vises or complex machining setups. Its extraordinary clamping force simultaneously secures both workpiece and fixture with uncompromising grip.

The rugged construction and extreme load capacity make it perfect for production environments where secure fastening is critical. The purely mechanical-pneumatic operation (without electrical components) guarantees unconditional reliability even under continuous, intensive use. Designed for advanced industrial requirements, this plate delivers uncompromising performance in stability, precision and long-term durability.

The supply includes
Clamping station, sealing nipple, pneumatic plug connection, dust protection cap, eye bolts, operating manual

The supply does NOT include
Clamping pins, cylindrical clamps
