Grinding

Grinding with Permanent Magnetic Workholding

In the field of precision grinding, clamping quality directly influences surface finish, dimensional tolerances and repeatability. The category Grinding – Permanent Magnetic Workholding includes professional solutions designed to ensure stable magnetic clamping, uniform field distribution and maximum safety during machining of steel and ferromagnetic materials.

The range includes permanent magnetic chucks, circular magnetic chucks, sine tables with magnetic plate, magnetic mandrels, laminated blocks, magnetic transfer parallels and magnetic vises developed by specialized manufacturers such as LTF Officine Meccaniche and RUPAC. These systems are engineered for use on surface grinders, cylindrical grinders and die-sinking EDM machines, where clamping rigidity directly affects the final machining quality.

Permanent Magnetic Chucks for Grinding

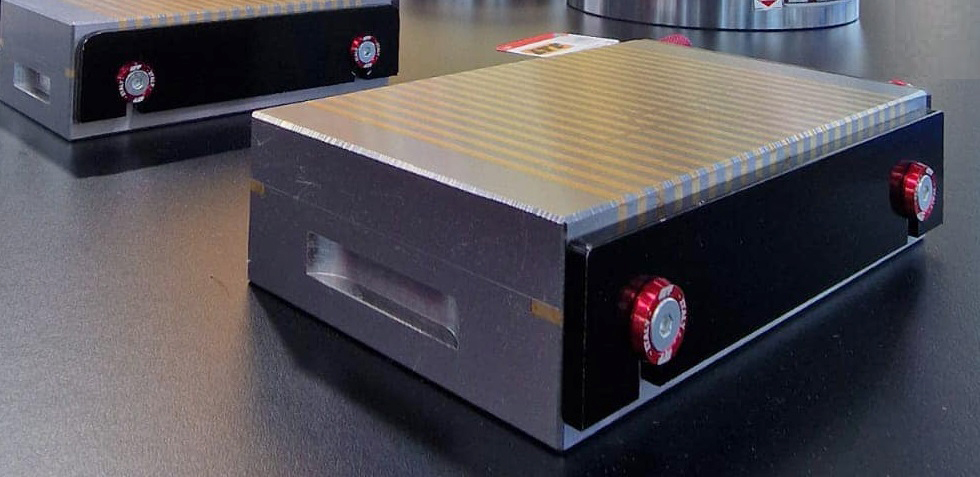

Permanent magnetic chucks with Neodymium (NdFeB) provide high and constant magnetic force without electrical power supply, eliminating the risk of sudden power loss. Versions with fine or super-fine pole pitch are ideal for grinding thin and small workpieces, ensuring uniform holding force and minimizing deformation or vibration.

Ferrite and Alnico V magnetic systems offer enhanced resistance to high operating temperatures, making them suitable for heavy-duty and continuous grinding operations. The optimized pole pitch configuration allows effective clamping even on small surfaces or complex geometries.

Sine Tables and Tilting Magnetic Systems

Sine tables with permanent magnetic plate allow high-precision angular grinding, with adjustable angles up to 50° and extremely tight accuracy values. The clamping remains stable during magnetization and demagnetization, without affecting flatness — a key feature for toolmaking, mold manufacturing and high-precision mechanical components.

Tilting and swiveling magnetic chucks further increase operational flexibility, enabling multi-axis grinding without complex repositioning.

Laminated Blocks and Magnetic Transfer Parallels

Laminated blocks for magnetic chucks are advanced positioning solutions for irregular workpieces. Although not magnetic themselves, they transmit the magnetic field generated by the chuck, eliminating the need for costly mechanical fixtures and increasing production flexibility.

Magnetic transfer parallels in steel and copper, such as the MicroMet series, guide the magnetic flux toward the workpiece, improving clamping efficiency. The laminated structure ensures uniform field distribution, enhancing stability and grinding accuracy.

Magnetic Mandrels and Magnetic Vises

Circular magnetic mandrels with fine pole pitch are designed for machining small and thin components, maintaining consistent magnetization even in demagnetizing environments. Permanent magnetic vises provide compact and precise clamping for parts that are difficult to secure with traditional mechanical systems, ensuring high operational stability and safety.

Choosing permanent magnetic workholding for grinding means investing in dimensional precision, workpiece stability, vibration reduction, energy-independent safety and higher machining efficiency. These solutions are ideal for mechanical workshops, mold makers, automotive, aerospace and subcontract machining companies requiring consistent high-quality standards.

If you operate in precision grinding, this category offers advanced magnetic technology for perfect surfaces, controlled tolerances and reliable clamping performance.
