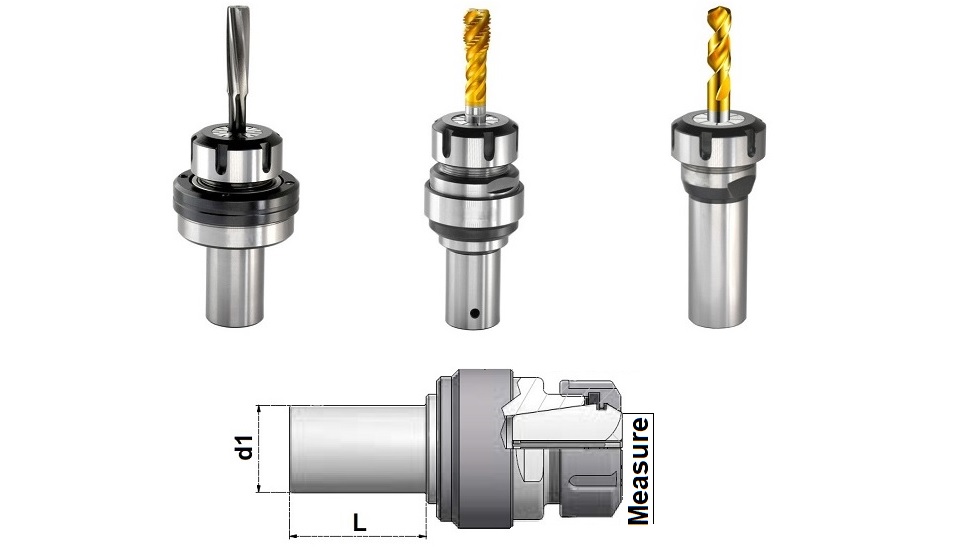

Cylindrical shank

Spindel Chuck with cylindrical shank

ER collet chucks with cylindrical shanks are made of high-quality hardened and ground steel. The grinding of the shank diameter ensures perfect cylindricity and roundness of the gripping surface. In addition, this area is the cylindrical reference band for grinding the taper, in which the ER collet is perfectly positioned, and the machining of the taper in relation to this band is perfectly coaxial to the axis of rotation. These geometric tolerances ensure that the tool is perfectly clamped in the collet, guaranteeing optimum balance of the cutting edges. The ER collet chuck can be used on various joinery machines, conventional and CNC. Suitable for pantographs and manual power tools. Clamping of the ER collet on the tool shank must be done with a torque spanner and the Nm recommended by ER collet manufacturers. The collets have a wide range of choice according to diameter and length of the cylindrical shank. ER collet chucks are made for ER8, ER11, ER16, ER20, ER25, ER32, ER40 collets. The chuck with cylindrical shank for ER collet is also chosen on the basis of the ferrule, which can be MINI (if we have space problems), STANDARD ferrule, HEXAGONAL ferrule with use of a fixed fork spanner. There are also chuck versions with a cylindrical shank for ER collet on both sides, usually used on cnc lathes for front and rear machining of the workpiece (in recovery)

Tapping chuck with cylindrical shank and axial compensation stroke with ER collet. It is commonly used for threading on CNC and automatic machines.
During threading, the tap through this compensation is able to compensate for any pointing errors made during thread insertion. This feature allows spindles with compensation and compression stroke to avoid possible breakage of the male or affect its durability and performance during the tapping of components.
Male tapping spindles with axial compensation only are commonly used to perform threads on CNC and automatic machines. During the execution of the thread, the male through this compensation is able to compensate for any pointing errors made during the thread insertion, being compensated only in tension, the synchronised advance of the male must be slightly less than the pitch of the thread to be executed. To find out more about how this compensation works and what causes it, our technicians are at your disposal.
