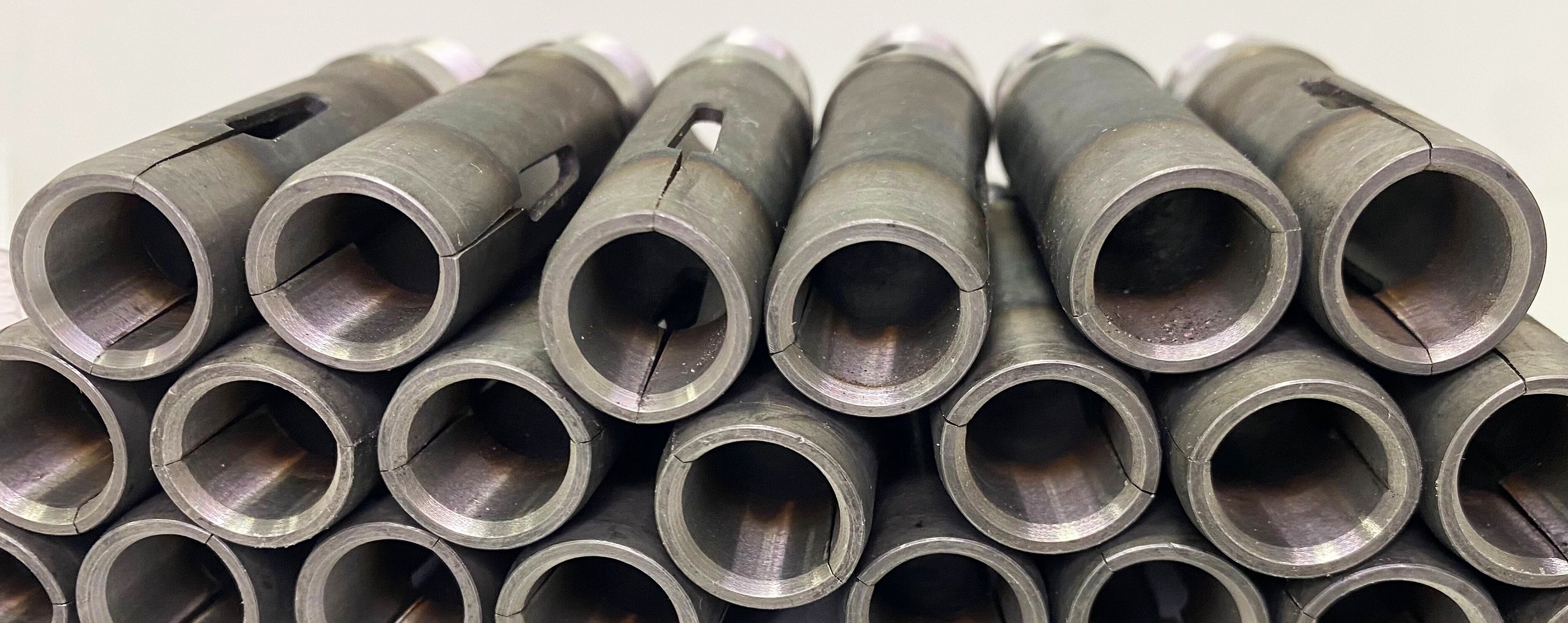

Feed finger

Bar feed finger collet

the counter collet are preloaded in order to be able to carry out a correct advancement of the bar without creating any problems for the single-spindle - multi-spindle lathe and above all guaranteeing precision in the advancement of the bar, in order to avoid the creation of short and defective pieces. The bar feed finger pliers are made with a sliding load calibrated by the manufacturer according to the material used by the pliers which is normally divided into three groups, for steel, for aluminum and for brass. The load is calculated based on the specific weight and the diameter and/or profile of the bar.

Plastic collet for bar feeding

Plastic bar feed finger are used for multi-spindle and single-spindle CNC lathes and has a high wear resistance, the average duration is 5/15 km of bars according to the pressure that develops on them. Excellent vibration absorption, sensitive damping capacity due to the characteristics of the thermoplastic materials. The feed gripper has resistance to centrifugal force. The counter pliers have a cylindrical body without longitudinal cuts, this guarantees high resistance to centrifugal force and therefore to wear (from 4000 to 7000 rpm), the bar feed clamp are compatible with the originals. Available drilled to size or solid to be drilled. It should be taken into consideration that after total wear of the hole, it is possible to regenerate the collet by enlarging the hole itself.

All the collets on display are interchangeable with the original ones suitable for multi-spindle and single-spindle CNC lathes including Gildemeister DMG-Mori, Davenport, Acme - Gridley, Index, Mori-say, Pittler – Drema - Dam, Schutte, Tos, Tornos, Wickmann and many others…
