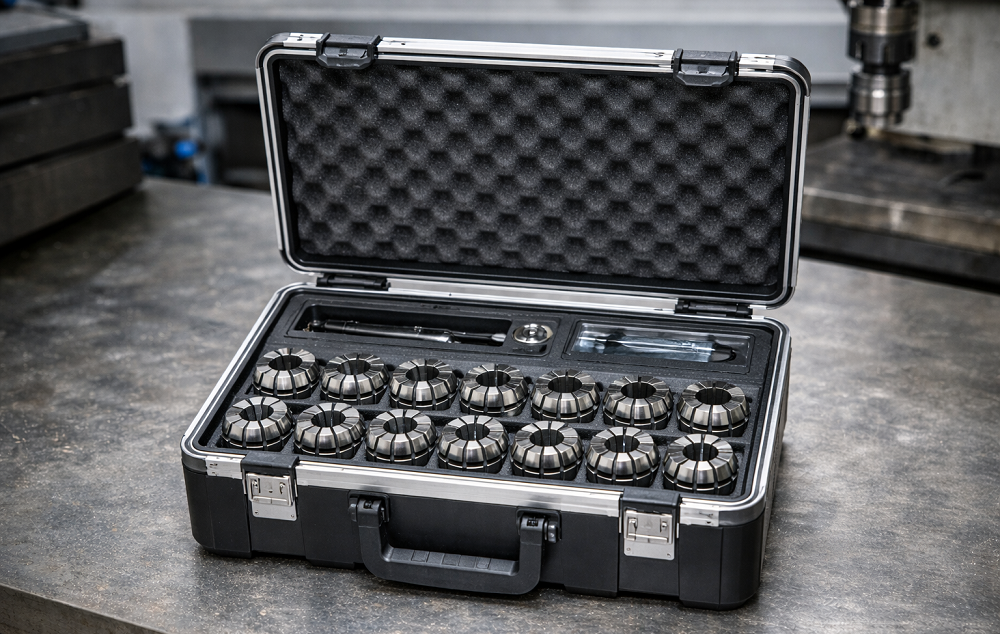

ER Collets for tool clamping

ER collets represent the most widely used and reliable standard for clamping cylindrical shank tools on tool holders used in workshops and industrial production. They are compatible with most machine interfaces and tool holding systems, including ISO, BT, SK, HSK, Morse taper, and modular solutions, enabling flexible machining operations such as milling, drilling, boring, and tapping across sectors like automotive, precision engineering, and industrial maintenance. Their elastic geometry, designed for 360° clamping, ensures uniform and repeatable gripping, reducing run-out and improving finished part quality, especially where concentricity is critical.

One of the key advantages of the ER system is the combination of rigidity and versatility. The collet operates inside the holder taper with controlled elastic deformation, allowing a clamping range while maintaining stability and precision over time. For applications where surface finish, tool life, and dimensional repeatability are critical, selecting the correct precision class is essential. Standard ER collets are suitable for general machining, while high-precision ER HP versions are ground to tighter tolerances and designed for HSC machining, solid carbide tools, micro-machining, and vibration-sensitive operations.

In advanced machining applications, ultra-precision ER collets provide extremely low run-out and superior performance even under demanding cutting conditions. These are complemented by ultra-precision sealed ER collets, specifically designed for high-pressure through-tool coolant applications where fluid leakage must be eliminated and coolant delivery must remain stable and targeted.

When the spindle is equipped for internal coolant supply, ER systems can integrate coolant flow directly through the tool. In this context, sealed ER collets for internal coolant are used, designed as mechanically sealed collets with internal coolant channels along the bore, ensuring optimal coolant distribution directly to the cutting edge. Advanced versions include lubrication holes and neoprene sealing inserts, guaranteeing perfect sealing even at high pressures and preventing coolant loss.

For tapping operations, sealed ER collets with square drive for taps are available, ensuring torque transmission without slippage. These include sealed square ER tap collets, also available with neoprene inserts for enhanced sealing and process stability during repetitive and high-production cycles.

A critical aspect often underestimated is the tightening torque of the clamping nut. To achieve the nominal clamping force and expected concentricity, it is essential to use torque wrenches and controlled tightening procedures. Insufficient tightening may lead to tool slippage, increased run-out, vibration, and premature wear, while excessive tightening may deform the collet and damage both precision and nut threads. Typical torque values vary depending on size, ranging approximately from 10–15 Nm (ER8), 15–20 Nm (ER11), 30–40 Nm (ER16), 50–60 Nm (ER20), 80–100 Nm (ER25), 100–130 Nm (ER32), 130–160 Nm (ER40), up to 180–200 Nm (ER50), with slight variations depending on manufacturer and nut type. Bearing nuts reduce friction during tightening, improving consistency, repeatability, and collet lifespan.

ER collets are also highly effective in offline presetting processes, ensuring reliable measurements and reducing setup time and variability. From a quality control and process optimization perspective, ER collets are not just accessories but critical components of the precision chain: from selecting the correct series and precision class to coolant compatibility and proper nut tightening procedures.

At Tadaah, we support technicians and operators in selecting the optimal solution based on spindle type, working conditions, materials, and tooling, aiming to maximize rigidity, concentricity, tool life, and process stability.
