GAETANO CAPORALI FLB110.ERC50 Flange ER50 Collet chuck with cylindrical flange shank DIN ISO 15488 (DIN6499)
In stock
SKU
CA-FLB110.ERC50
Special Price
€132.96
Regular Price
€166.20
(Incl. Tax: €162.21)
(Incl. Tax: €162.21)
ER 50 Manual collet chucks with standard collet ring nut and cylindrical flange DIN ISO 15488 (DIN6499) are used on machine tools for clamping tools such as drills and milling. Suitable for ER50 collets Ø6÷34mm.
Images shown are indicative and not proportional.
- Brand:
- GAETANO CAPORALI
- Typology:
- Flange ER
- Size:
- ER50 - 477E

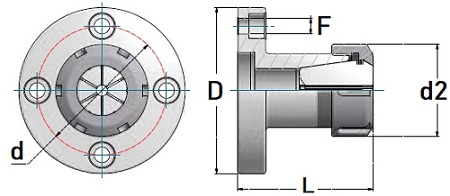

- Diameter "d2":
- 78 mm
- Drilling hole "d":
- 86 mm
- Diameter "D":
- 110 mm
- Lengt "L":
- 106 mm
- Dimension "F":
- 8,5
