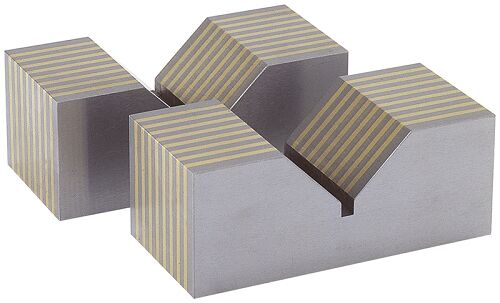

The pair of prismatic laminated chuck blocks with V-groove is designed to assist in positioning and supporting cylindrical or irregularly shaped workpieces during grinding operations on permanent or electromagnetic magnetic chucks. These accessories eliminate the need for expensive custom clamping fixtures, providing a versatile and practical solution for holding complex components.

The laminated structure composed of alternating steel and brass layers allows the magnetic flux generated by the magnetic chuck to extend through the block and toward the workpiece. Although the blocks themselves are not magnetic, their construction allows the magnetic field to be transmitted uniformly, ensuring stable clamping of the component.

The prismatic V-groove is designed to support cylindrical parts, shafts or components with curved surfaces. This geometry allows precise and repeatable positioning during precision grinding or machining operations.

For correct operation, the blocks must be positioned parallel to the polarity of the magnetic chuck. This configuration allows the magnetic flux to pass through the laminated structure and generate effective holding force on the workpiece.

With compact dimensions of 100 × 40 × 50 mm and the integrated V-groove, this pair of laminated blocks represents a reliable solution for precision machining workshops, grinding departments and quality control laboratories that need to hold cylindrical or difficult-to-clamp workpieces on magnetic chucks.
