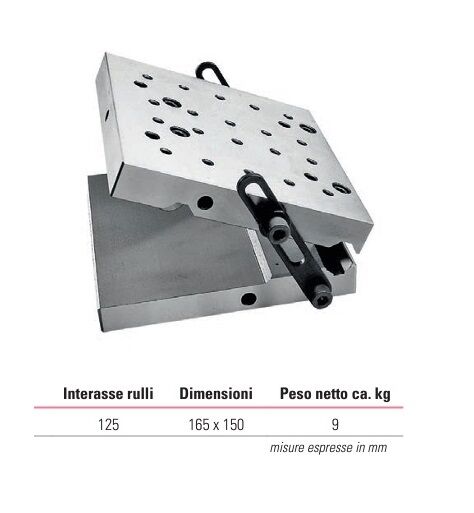

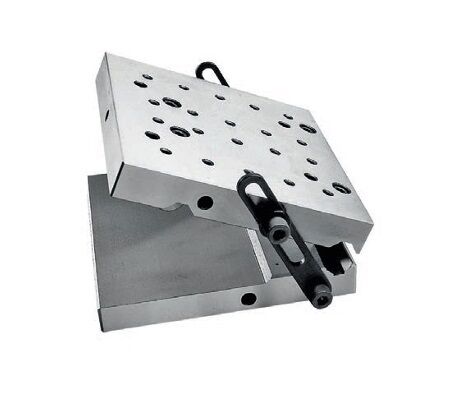

The MicroMet Series precision sine plate 165×150 mm is designed for precision grinding and machining operations on machine tools, where accurate angular positioning and stable workpiece clamping are essential. This device allows highly precise angular adjustments thanks to the sine bar system, enabling angle setting through the use of gauge blocks or other metrological reference tools.

The plate structure is manufactured with high geometric accuracy to ensure excellent workpiece stability during machining operations. The upper surface includes multiple mounting holes, allowing different clamping devices or fixtures to be installed depending on the application.

The sine bar mechanism enables extremely precise angular adjustments, which are particularly important when machining inclined surfaces or performing precision grinding tasks. The angle setting is performed using gauge blocks, ensuring repeatable positioning and reliable results.

This precision sine plate is suitable for use in mechanical workshops, grinding departments, quality control laboratories and high-precision manufacturing environments, where accurate workpiece positioning is essential for achieving precise dimensional results.

The MicroMet series provides tight geometric tolerances designed for precision applications:

• Squareness error: ±0.003 mm / 100 mm

• Parallelism error: ±0.02 mm / 100 mm

• Flatness error: ±0.002 mm

Thanks to the combination of structural rigidity, geometric precision and accurate angular adjustment, the MicroMet sine plate is an ideal solution for precision grinding, geometric inspection and high-accuracy machining operations.
