Point legend according to drawing image:

1) Fastening bores for mounting on the machine tables with star-shaped grooves

2) Visual display of the turbo function

3) Optionally: Short taper size A4 (Z-version)

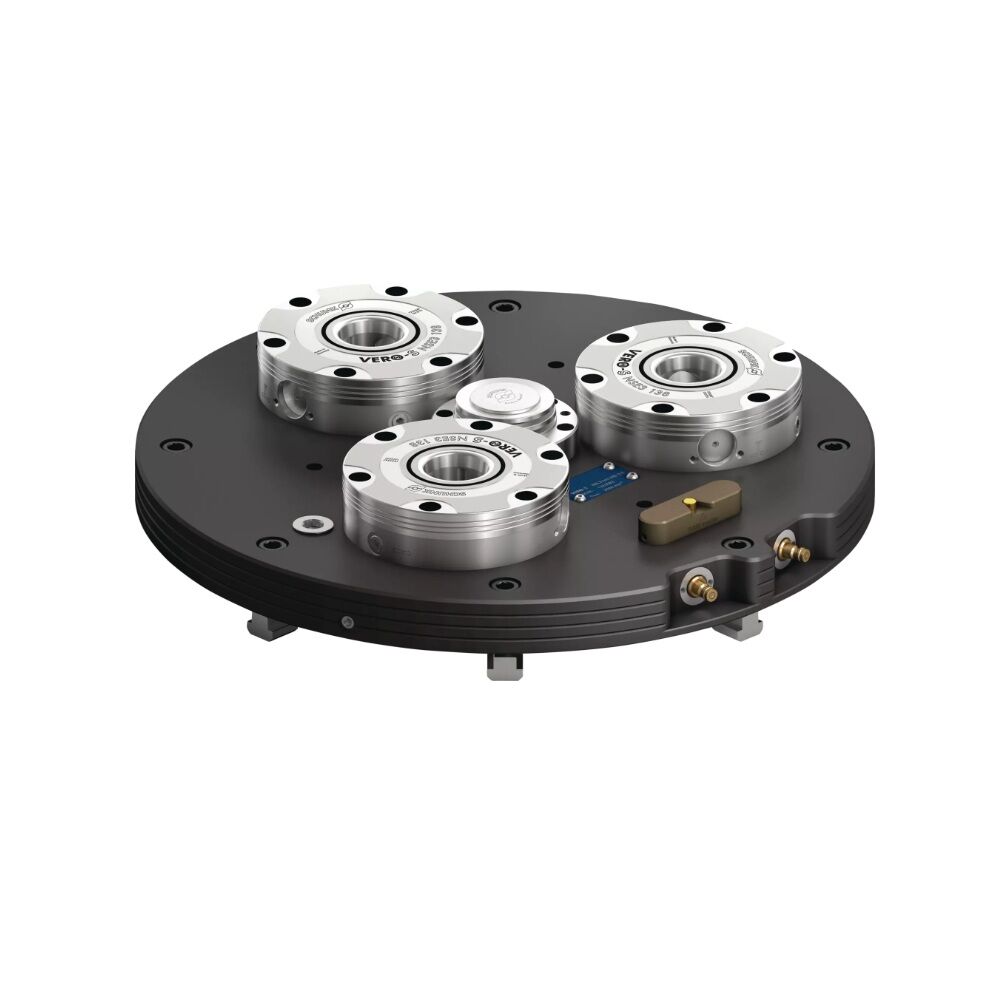

The NSL3 turn 450-3-Z clamping plate is specifically designed for turning operations on mill-turn centers, featuring a short A4 taper for optimal performance. This system incorporates 3-way VERO-S NSE3 modules that enable ultra-fast clamping device changeovers with just 6 bar operating pressure, eliminating the need for additional boosters.

With dimensions of Ø450×75 mm and weighing 52.4 kg, it delivers 24 kN standard clamping force (84 kN with Turbo function), maintaining consistent performance even at maximum speeds of 2000 rpm. The flexible taper shank positioning ensures quick setup with exceptional concentricity (<0.02 mm) and alignment accuracy (<0.01 mm).

The patented rapid-approach and high-force locking mechanism provides vibration-free rigidity, while the irreversible geometric coupling maintains full clamping force during pressure loss. Stainless steel, fully sealed modules ensure long-term durability and process reliability. The integrated Turbo function boosts clamping force by 300% for maximum machine utilization, with monitoring pins ensuring operational safety throughout demanding turning operations.

The supply includes
Clamping station, mounting screws, centering pins, adjustment pins, T-nuts, locking coupling, eye bolts, operating manual

The supply does NOT include
Clamping pins
