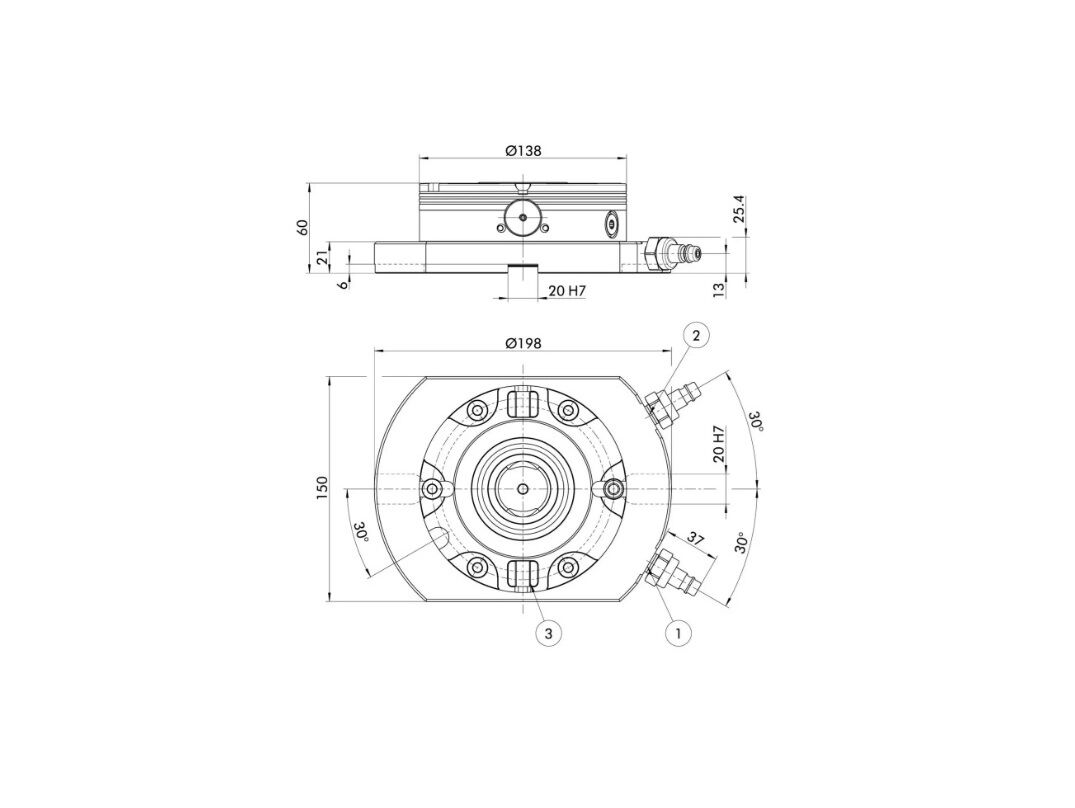

Point legend according to drawing image:

1) G1/8 air connection, open module

2) G1/8 air connection, turbo function

3) Fitting groove for positional alignment of the clamping pallet

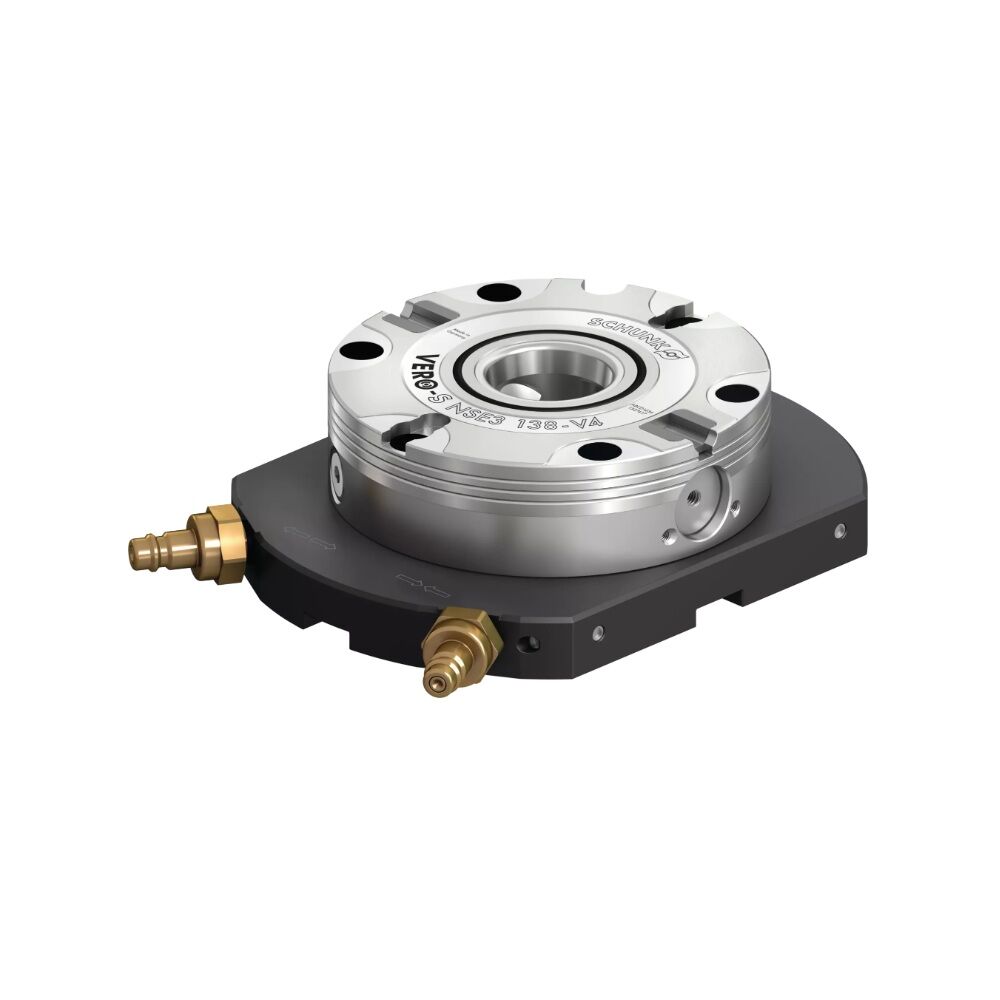

The SCHUNK clamping plates represent advanced technical solutions for precise and secure fastening of pallets and equipment during industrial machining operations. The standard NSL3 150-V4-T model stands out for its high performance and versatility. With compact dimensions (Ø198x150x60 mm) and a weight of just 7.1 kg, this plate delivers 8 kN of clamping force that can reach 28 kN when the Turbo function is activated, ensuring exceptional rigidity even in demanding machining applications.

The operating system combines a spring mechanism with pneumatic activation at 6 bar, while the Turbo version uses a second air channel to maintain the locked position. The 4-way 90° anti-rotation protection guarantees perfect pallet alignment during loading and unloading operations, eliminating any risk of misalignment during machining.

Particularly suitable for applications requiring maximum precision, this plate can be used either as a single module or integrated into multiple configurations. The option to choose between different clamping modes (standard or Turbo) allows perfect adaptation to specific production needs, whether working with standard equipment or special devices like self-centering vices.

The combination of compact size, high clamping force and reliable locking system makes this plate an ideal choice for production environments where precision and safety are fundamental requirements. The advanced anti-rotation protection and ability to triple clamping force with the Turbo function make it particularly suitable for high-speed machining or heavy-load operations.

The supply includes
Clamping station, sealing nipple, pneumatic plug connections, dust protection caps, operating manual

The supply does NOT include
Clamping pin, indexing pin, cylindrical clamps
