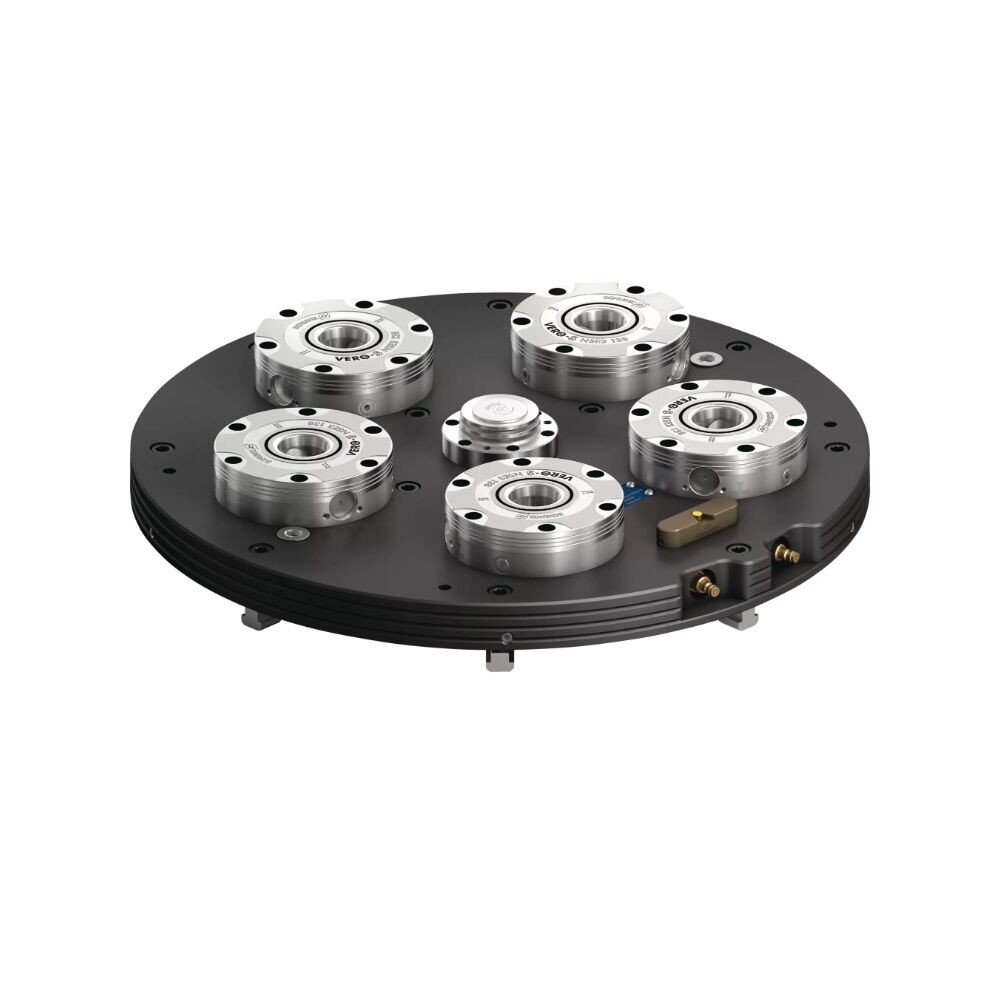

1323585 SCHUNK Clamping station turn Ø570x79mm with triple module NSE3 138 with short taper A4, turbo pull-down force 140 kN, max. rotationsl speed 1400 1/min
(Incl. Tax: €13,792.10)
The SCHUNK NSL3 turn 570-5-Z clamping plate is a device designed for clamping workpieces during machining. It has a diameter of 570 mm and a thickness of 79 mm. It is equipped with a triple module NSE3 138 and has a short A4 taper. It has a pull-down force of 40 kN and a turbo pull-down force is 140 kN, making it effective for applications requiring high clamping forces. In addition, the plate can operate at a maximum speed of 1,400 rpm, offering versatility and precision in machining. This product is ideal for high-intensity work environments and operations that require high efficiency.
Point legend according to drawing image:
1) Fastening bores for mounting on the machine tables with star-shaped grooves
2) Visual display of the turbo function
3) Optionally: Short taper size A4 (Z-version)
The NSL3 turn 570-5 clamping plate with short A4 taper is designed for turning operations on mill-turn centers. Featuring 5-way VERO-S NSE3 modules, it enables ultra-fast tool changes using just 6 bar operating pressure without additional boosters. With generous dimensions (Ø570×79 mm) and contained weight (93 kg), it delivers 40 kN standard clamping force (140 kN with Turbo function) while maintaining stable performance up to 1400 rpm. Precision is ensured by <0.02 mm concentricity and a flexible taper shank positioning system guaranteeing alignment within 0.01 mm.
The patented high-force locking system eliminates vibrations completely, while the irreversible geometric coupling maintains clamping force even during sudden pressure loss. Stainless steel modules provide complete sealing and maximum durability. The standard Turbo function increases available force by 300%, fully utilizing machine power, with integrated monitoring pins ensuring maximum operational safety.
The supply includes
Clamping station, mounting screws, centering pins, adjustment pins, T-nuts, locking coupling, eye bolts, operating manual
The supply does NOT include
Clamping pins
- Brand:
- SCHUNK
- Typology:
- Normal module
- Force :
- 140kN
- Diameter "D":
- 570mm
