VOGEL 527.106 Magnetic V-Blocks (Matched Pair) 150x75x95 mm – Key-Operated Magnet ≈100 kg – DIN 876/1
(Incl. Tax: €814.72)

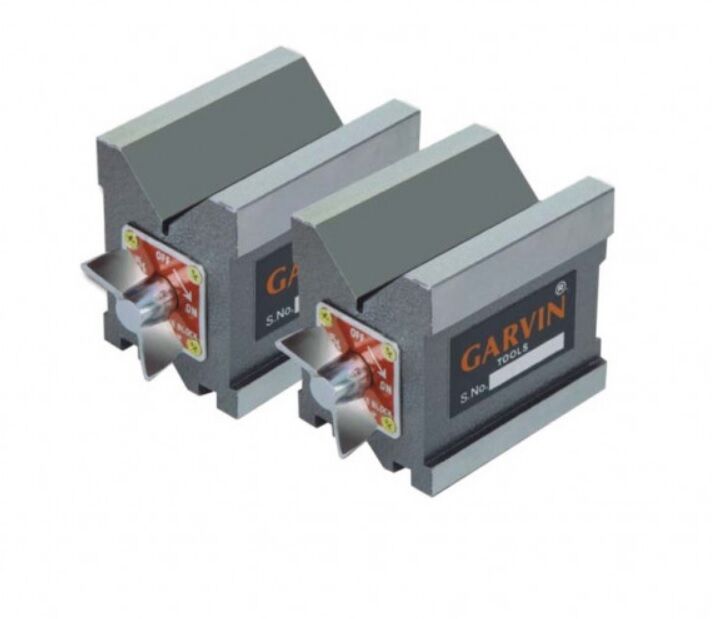

Matched pair of precision-ground magnetic V-blocks to DIN 876/1, featuring a key-operated magnet with approx. 100 kg holding force. Three ground contact surfaces and two 90° V-grooves (55 and 25 mm) ensure stable positioning of cylindrical workpieces. Ideal for grinding, measurement and inspection with accuracy better than 10 µm.
The matched pair of magnetic V-blocks 150x75x95 mm is engineered for high-precision grinding, measurement and inspection applications where stability and repeatability are essential. The contact surfaces are precision ground according to DIN 876/1, providing excellent flatness and parallelism with accuracy better than 10 µm.
The key-operated magnetic system delivers an approximate holding force of 100 kg, allowing each V-block to securely hold itself and the workpiece on any flat ferrous surface. Two 90° V-grooves (55 mm and 25 mm) enable accurate centering and reliable support of shafts, tubes and round components across different diameters.
Supplied as a matched pair and ground together, the V-blocks ensure coplanarity—an essential requirement for precision inspection and grinding operations. Their robust construction and key activation system make them suitable for mechanical workshops, metrology rooms and industrial precision environments.
Technical Data – Magnetic V-Blocks (Matched Pair) 150x75x95 mm
| Specification | Unit | Value |
|---|---|---|
| Code | – | 527.106 |
| Length | mm | 150 |
| Width | mm | 75 |
| Height | mm | 95 |
| V-grooves (90°) | mm | 55 / 25 |
| Magnetic holding force | kg | ≈ 100 |
| Accuracy | – | DIN 876/1 < 10 µm |
| Supply | – | Matched pair, ground together |
- Brand:
- VOGEL
- Typology:
- Magnetic V-blocks
- Force :
- 100Kg
