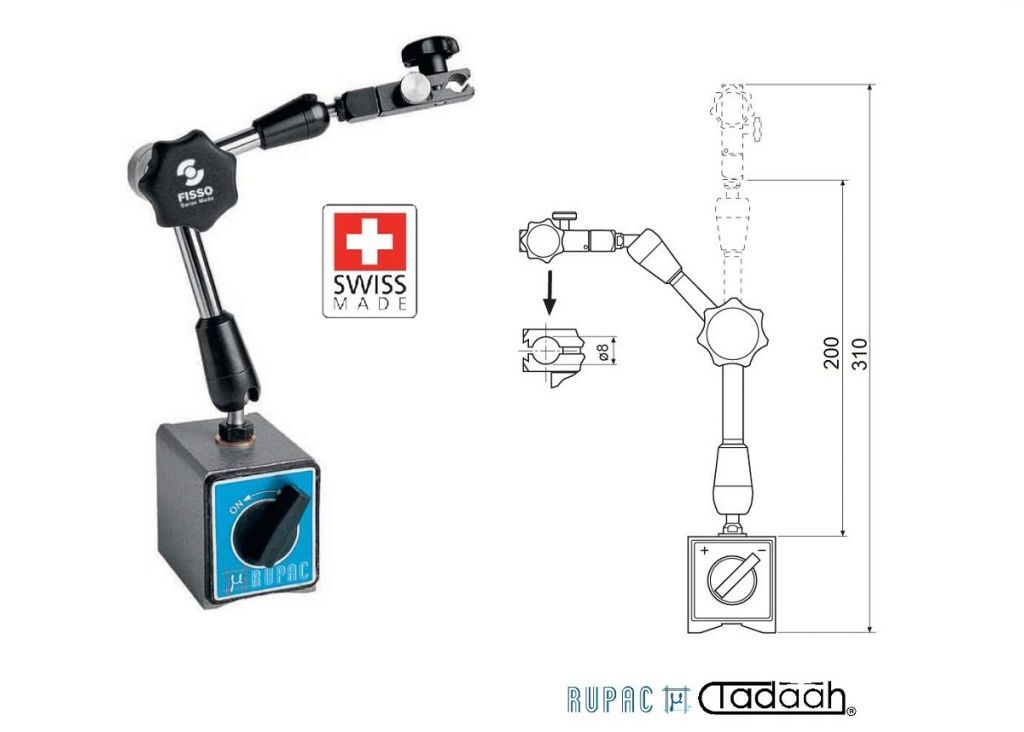

The RUPAC Classic-Line Swiss Made magnetic dial indicator stand model 2005022 is a professional solution designed for dimensional inspection and geometric verification in mechanical workshops, metrology laboratories and industrial quality control departments. Intended for use with Ø8 mm stem analog dial indicators, it enables precise and repeatable measurements for checking flatness, concentricity, run-out, parallelism and form errors on machined components.

This model features a compact structure with a fully articulated arm, designed to provide flexibility and ease of use in confined workspaces. The 200 mm working radius and 310 mm total height make it ideal for small to medium-sized components typically found in turning, milling and grinding processes.

The arm is chrome-plated for high wear resistance, ensuring durability and long-term precision. The fully mechanical locking system secures all joints simultaneously, providing high stability during measurement operations.

The stand is equipped with a fine micrometric adjustment system, allowing extremely precise positioning of the dial indicator. With an adjustment sensitivity of approximately 1.3 mm per revolution, operators can perform fine corrections during setup and zeroing, improving measurement accuracy. This feature is essential for detecting transmission play, dimensional variations, form errors and geometric deviations.

The RUPAC permanent magnetic base with V-groove prism ensures secure mounting on both flat and cylindrical surfaces. The compact base dimensions 50 × 55 × 68 mm allow use in limited spaces, while the 600 N vertical pull-off force guarantees stable magnetic holding during measurements.

The system is compatible with Ø8 mm dial indicators and includes a dovetail mount for test indicators, increasing versatility. Its ergonomic design allows fast and precise adjustments, improving efficiency in inspection processes.

Thanks to its Swiss Made quality, precision adjustment and compact design, this stand is an essential tool for technicians, engineers and industrial professionals.

It enables accurate verification of flatness, run-out, concentricity, parallelism and dimensional deviations, supporting high quality standards in precision engineering and automotive sectors.
