RUPAC 2001803 Dial indicators holder with magnetic base 50×55×62 mm model F03BV - Range 150 mm - Micrometric adjustment
(Incl. Tax: €35.38)

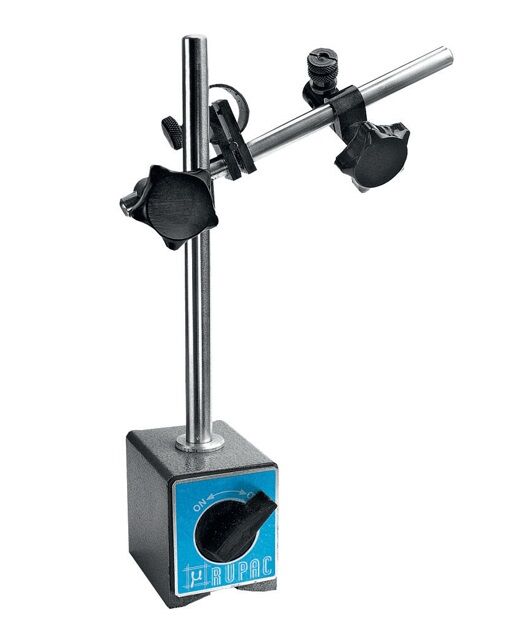

he MicroMet F03BV magnetic stand with micrometric adjustment is designed for precise positioning of dial indicators during dimensional and geometrical inspection operations. The prismatic magnetic base with a 600 N vertical holding force ensures secure attachment on both flat and cylindrical surfaces. The articulated arm with a 150 mm working radius combined with micrometric fine adjustment allows extremely accurate positioning of the indicator tip, making it ideal for runout checks, concentricity measurements, alignment verification and backlash inspection in machine shops and quality control departments.
The MicroMet series F03BV precision magnetic stand is designed to provide stable and highly accurate positioning of dial indicators during dimensional and geometrical inspection tasks in precision mechanical environments and machine tool applications. This support system plays a key role in ensuring reliable and repeatable measurements during quality control, maintenance, and metrological verification of mechanical components.
The structure features a compact magnetic base with a prismatic bottom surface that allows secure attachment to both flat and cylindrical surfaces such as shafts, spindles, or round bars. The vertical pull force of 600 N ensures strong magnetic holding power even when measurements are performed on machine tools subject to vibration or dynamic loads. This structural stability is essential to prevent micro movements that could compromise measurement accuracy.
The articulated support arm provides an operating reach of 150 mm and allows flexible positioning of the dial indicator thanks to the joint and clamping system. A key feature of this model is the integrated micrometric fine adjustment mechanism, which allows extremely precise positioning of the indicator tip on the measured surface. This system enables the operator to perform fine adjustments without disturbing the overall positioning of the stand, improving measurement sensitivity and repeatability.
The stand is compatible with dial indicators equipped with standard Ø8 mm or Ø4 mm stems, making it suitable for most measuring instruments used in mechanical workshops and quality control laboratories. The rigidity of the support structure allows operators to fully utilize the resolution of the measuring instruments while minimizing errors caused by vibration or structural instability.
This magnetic stand is widely used for various metrological inspection tasks including shaft runout control, spindle eccentricity verification, surface flatness inspection, analysis of geometric and form errors, and measurement of mechanical transmission backlash. It is also commonly used during alignment operations and mechanical assembly procedures where fast and accurate measurements are required.
Combining strong magnetic stability, micrometric fine adjustment, and versatile positioning capabilities, the MicroMet F03BV magnetic stand represents a professional solution for precision workshops, quality control departments, automotive manufacturing, and machine tool builders requiring reliable setups for dimensional and geometrical inspection

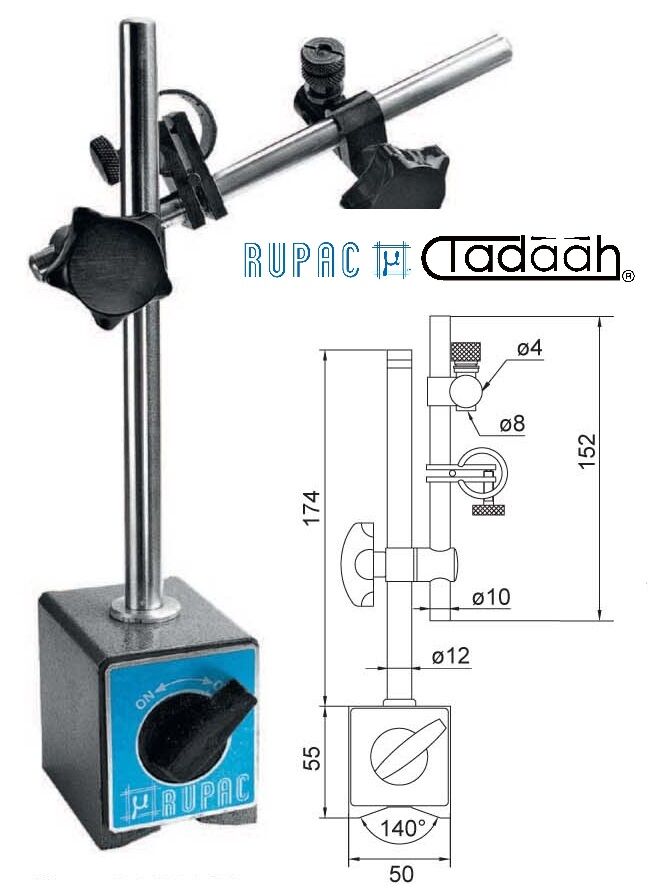

Technical Data Magnetic Base Holder MicroMet F03BV
| Parameter | Value |
|---|---|
| Series | MicroMet |
| Model | F03BV |
| Product code | 2001803 |
| Working radius | 150 mm |
| Comparator stem hole | Ø 8 mm / Ø 4 mm |
| Magnetic base dimensions | 50 × 55 × 62 mm |
| Vertical pull force | 600 N |
| Vertical pull force | 60 kgf |
| Base bottom surface | Prismatic |
| Micrometric adjustment | Yes |
MicroMet Series Comparison Table
| Parameter | F03B | F03BV | F06F | F101BV |
|---|---|---|---|---|
| Product code | 2001800 | 2001803 | 2001806 | 2001809 |
| Type | Magnetic holder | Magnetic holder | Flexible magnetic holder | Dial indicator holder |
| Version | Standard | With micrometric adjustment | Flexible | Heavy Duty |
| Working radius | 150 mm | 150 mm | 265 mm | max 360 mm |
| Column | — | — | — | Ø 20 mm |
| Articulated arms | — | — | — | Ø 12 mm / Ø 10 mm |
| Comparator stem hole | Ø 8 mm / Ø 4 mm | Ø 8 mm / Ø 4 mm | from Ø 6 to Ø 8 mm (adjustable) | Ø 8 mm / Ø 4 mm |
| Magnetic base dimensions | 50 × 55 × 62 mm | 50 × 55 × 62 mm | 50 × 55 × 62 mm | 50 × 55 × 74 mm |
| Vertical pull force | 600 N | 600 N | 700 N | 800 N |
| Vertical pull force in kgf | 60 kgf | 60 kgf | 70 kgf | 81 kgf |
| Maximum load | — | — | 10 N | — |
| Base bottom surface | Prismatic | Prismatic | — | Prismatic |
| Micrometric adjustment | No | Yes | — | Yes |
- Brand:
- RUPAC
- Typology:
- Magnetic stand
- Force :
- 60kgf
