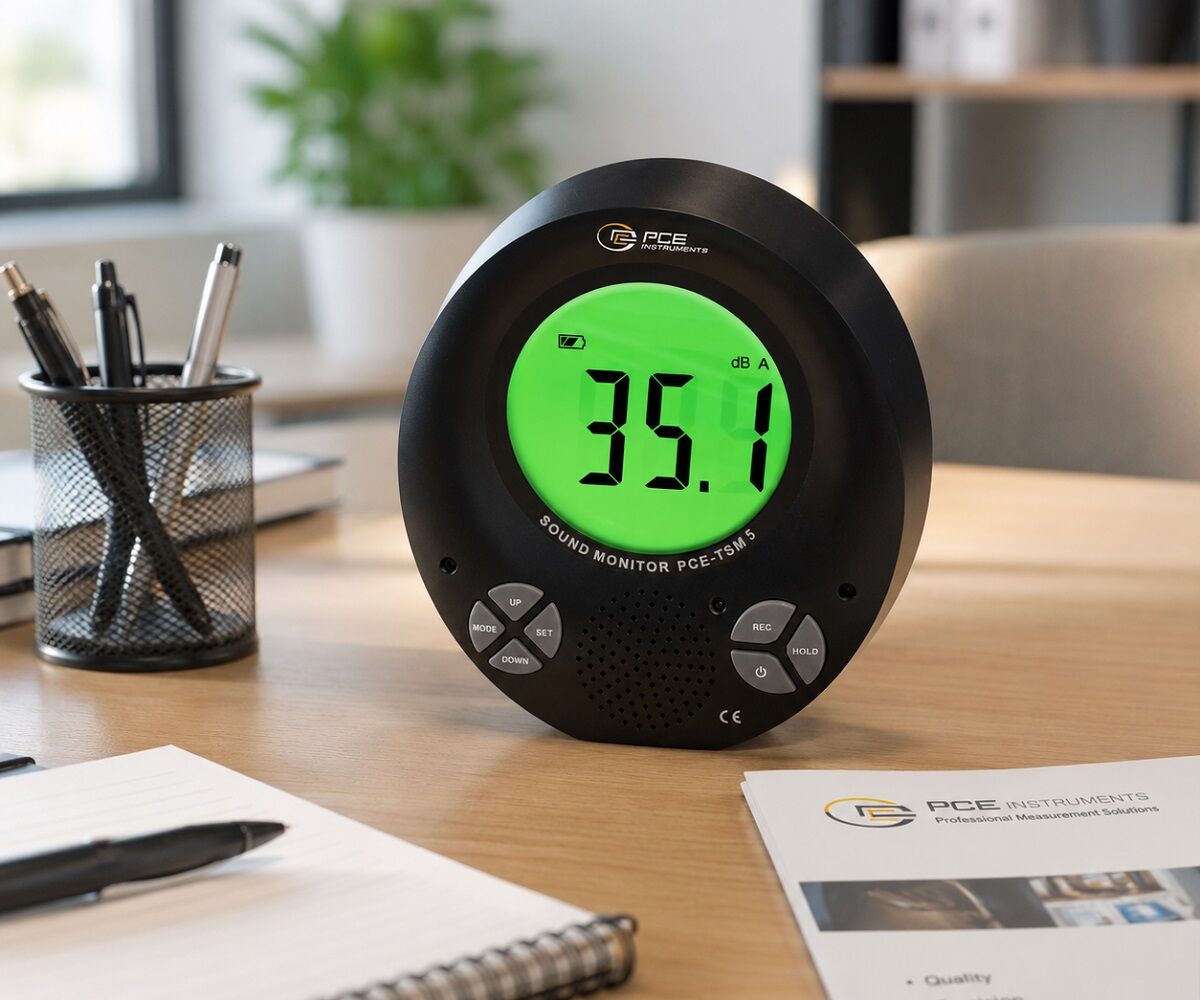

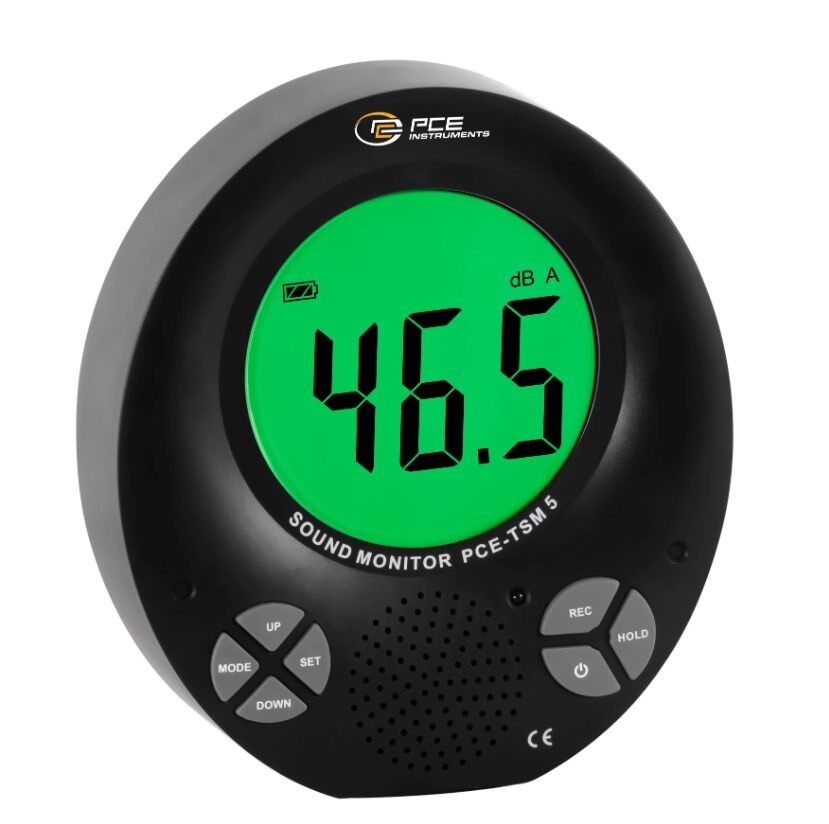

PCE Instruments PCE-TSM 5 Sound level meter with a 3-color LCD screen, multilingual acoustic alarm, audio output, remote control, and options for table or wall placement, ideal for educational spaces and conferences

PCE Instruments PCE-TSM 5 Sound level meter with a 3-color LCD screen, multilingual acoustic alarm, audio output, remote control, and options for table or wall placement, ideal for educational spaces and conferences

In stock
SKU
PCE-TSM-5
€87.20
(Incl. Tax: €106.38)

Sound level meter with an integrated acoustic traffic light, offers precise and reliable sound measurements in real-time. Equipped with a large 3-color LCD display, it provides an immediate visual indication of the current sound level. The green, orange, and red colors signal whether the noise level is acceptable or if action is needed. The device includes a customizable acoustic alarm in six languages, facilitating use in various international contexts. The adjustment of threshold values allows adapting the optical and acoustic alarms to local regulations. With an integrated memory capable of recording 15 seconds of audio and an audio output for external processing, the sound level meter operates both on battery and mains power. An infrared remote control allows managing key functions remotely, making the device practical in hard-to-reach environments. Designed to be placed on a table or mounted on a wall, this sound level meter is ideal for schools, nurseries, and conference rooms, thanks to its versatility and innovative features.

The sound level meter is an advanced measuring instrument designed to monitor and analyze sound levels in various professional and environmental contexts. This versatile device is essential for evaluating noise in different settings, from construction sites to schools, hospitals, and conference rooms. A large LCD display with a three-color background provides users with an immediate visual indication of the current noise level, allowing for quick recognition of whether the sound falls within acceptable parameters or if action is needed to reduce the noise level.

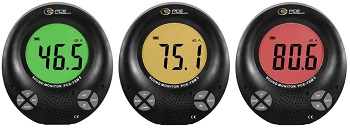

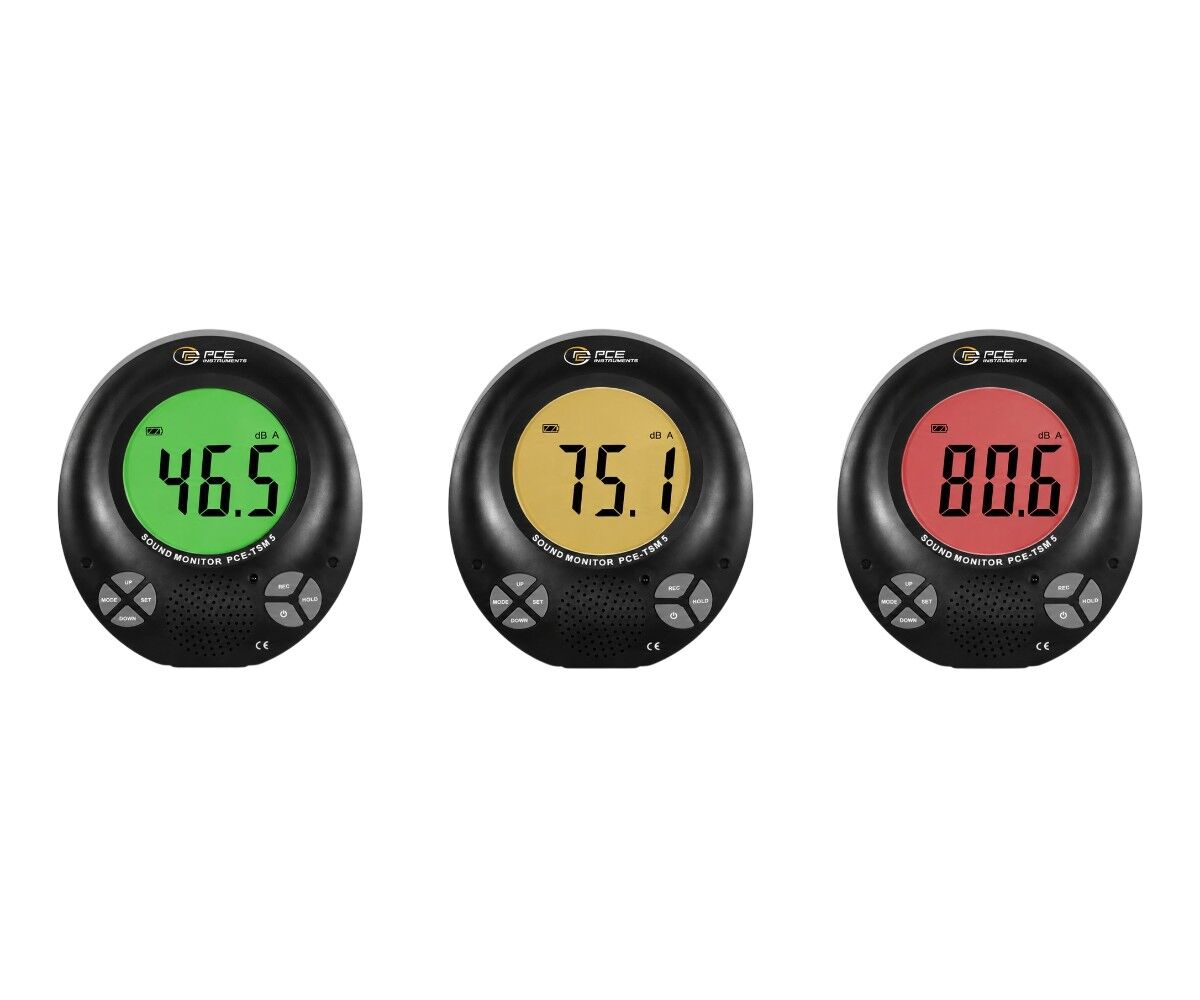

The distinctive feature of the sound level meter is the integrated acoustic traffic light, which uses green, orange, and red colors to signal noise levels. This visual function is particularly useful in environments where attention is focused on other activities, helping to prevent disturbances or uncomfortable situations. In addition to visual indicators, the sound level meter offers a customizable acoustic alarm in six different languages, enhancing its versatility and making it suitable for multilingual and international contexts.

Another important feature of the sound level meter is the ability to customize threshold values for optical and acoustic alarms, allowing users to adapt settings to local regulations or specific needs of their environment. This flexibility is crucial for ensuring monitoring complies with safety and health standards.

The sound level meter is equipped with an integrated memory capable of recording up to 15 seconds of audio, allowing for the storage of significant acoustic events for future analysis. The audio output provides additional possibilities for recording or external processing of measurement data, facilitating integration with other monitoring or analysis systems. This device can operate on both battery and mains power, ensuring flexible usage in various operational situations. The presence of an infrared remote control allows users to manage the most important functions of the sound level meter from a distance, facilitating operations in situations where the device is placed in hard-to-reach locations.

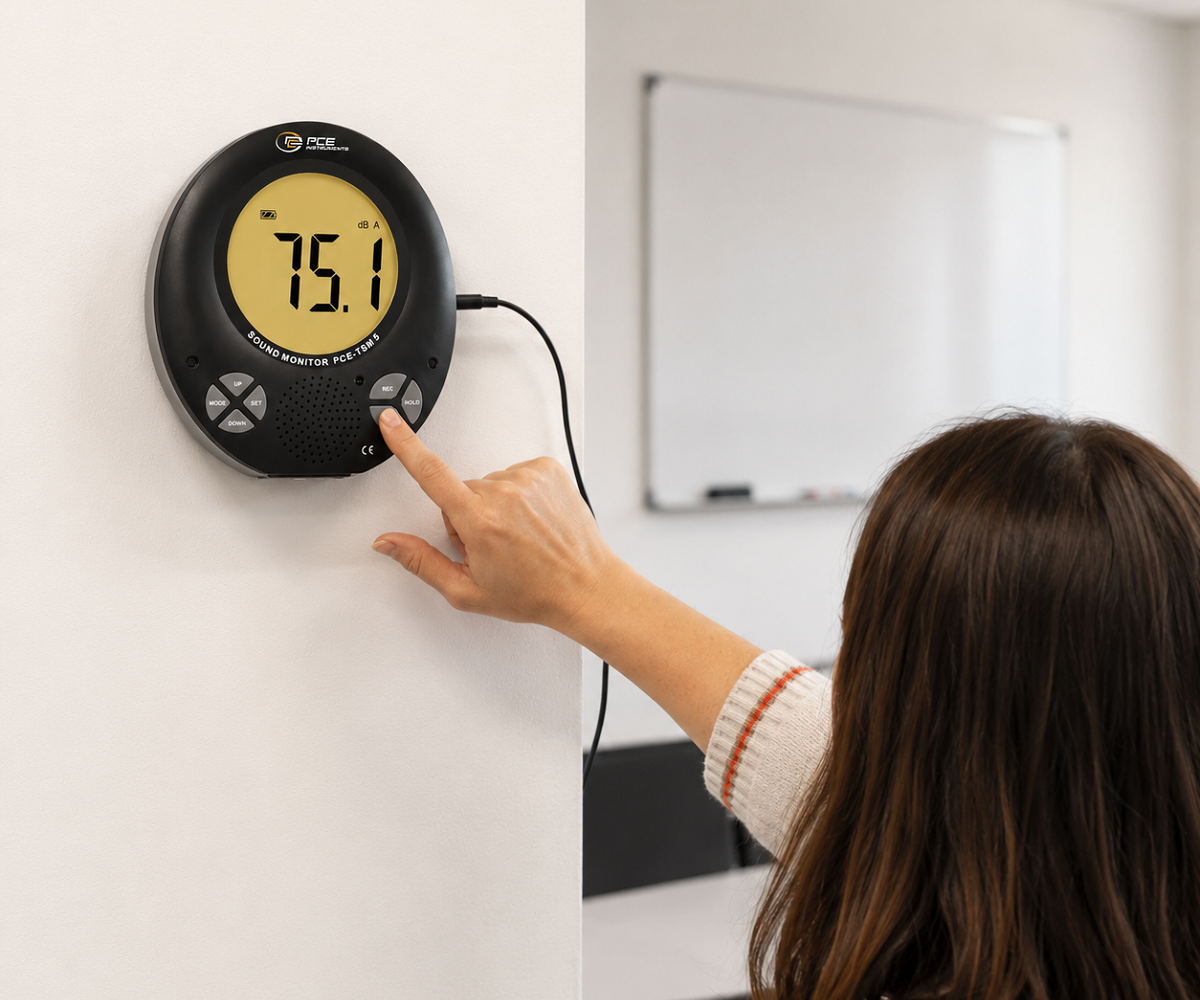

The design of the sound level meter allows it to be placed on a table or mounted on a wall, further increasing its versatility. This feature enables use in a wide range of scenarios, making the sound level meter an ideal tool for monitoring noise in educational, corporate, and entertainment contexts. Its ability to adapt to different needs makes it particularly useful in environments where maintaining a calm and productive work or learning atmosphere is essential.

In summary, the sound level meter represents a technologically advanced solution for managing and monitoring sound levels. Thanks to its innovative functions, intuitive interface, and robustness, the sound level meter stands out as an essential tool for continuous acoustic monitoring, contributing to improving the quality of the sound environment and ensuring an optimal experience for users in any context in which it is used. Whether it's ensuring a healthy work environment or complying with acoustic safety regulations, the sound level meter is an indispensable tool for anyone wishing to monitor and manage noise levels effectively and accurately.

Caratteristichs:
- Large LCD display
- Noise traffic light
- Visual signaling with three-colour display
- Audible alarm in 6 languages
- Freely selectable limit values
- Battery or mains operation
- Audio output
- IR remote control
- Memory function
- Floor-standing or wall-mounted device

Delivery scope:
1 x PCE-TSM 5 decibel meter
1 x 9 V 1 A plug-in power supply
1 x remote control
1 x screwdriver
6 x 1.5 V AA battery
1 x operating instructions
1 x mounting material
PCE Instruments PCE-TSM 5 Sound level meter with a 3-color LCD screen, multilingual acoustic alarm, audio output, remote control, and options for table or wall placement, ideal for educational spaces and conferences

Sound meter technical specifications

Parameter Value
SectionSound
Measuring range35 ... 135 dB
Resolution0,1 dB
Accuracy12 dB
SectionOther technical specifications
FeaturesMIN / MAX / HOLD / ALARM
Frequency31,5 ... 8.000 Hz
Frequency weightingA
DisplayBacklit LCD
Display data refresh rate2 x per second
Memory15 seconds with data recording and voice recording
MicrophoneElectret condenser
Interface3,5 mm jack
Alarm modeAcoustic: voice output in German, Chinese, Spanish, French, English and Japanese
Optical: background in green, yellow and red
Menu languagesEnglish
Protection ratingIP20
Power supply6 x 1,5 V AA batteries or power adapter
Battery lifeApprox. 60 hours
Power adapter9 V DC / 1.000 mA
Connector typeSchuko socket
Operating conditions-20 ... 60 °C / 10 ... 90% U.R.
Storage conditions-20 ... 60 °C / 10 ... 75% U.R.
Dimensions197 x 176 x 49 mm
Weight490 g
EAN Code:
4250348733559
Typology:
Fixed Monitoring
Brand:
PCE INSTRUMENTS
Resolution (mm):
0.1 dB
Measurements range:
35 - 135 dB
