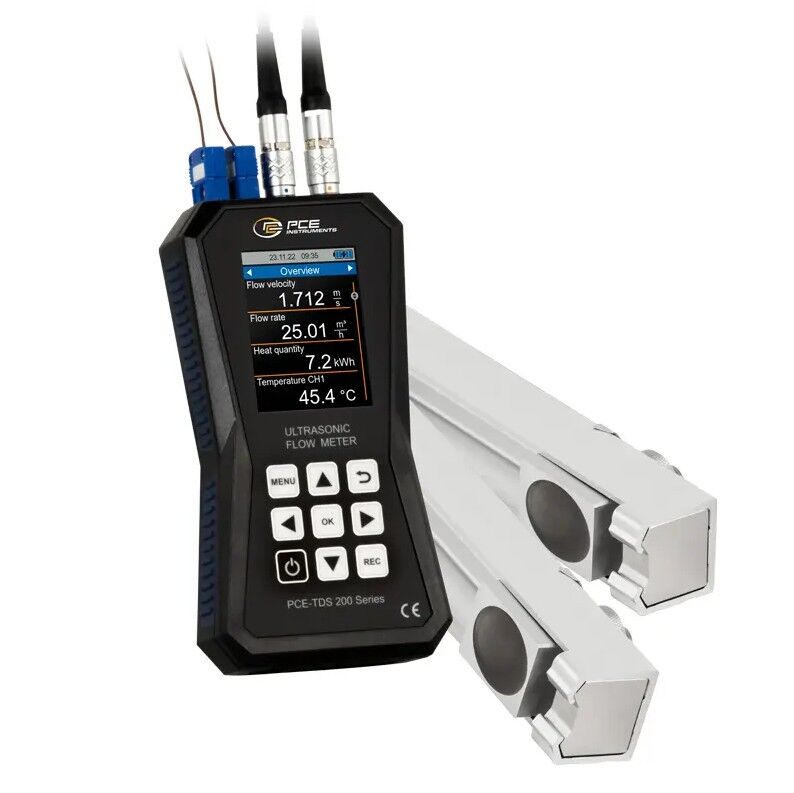

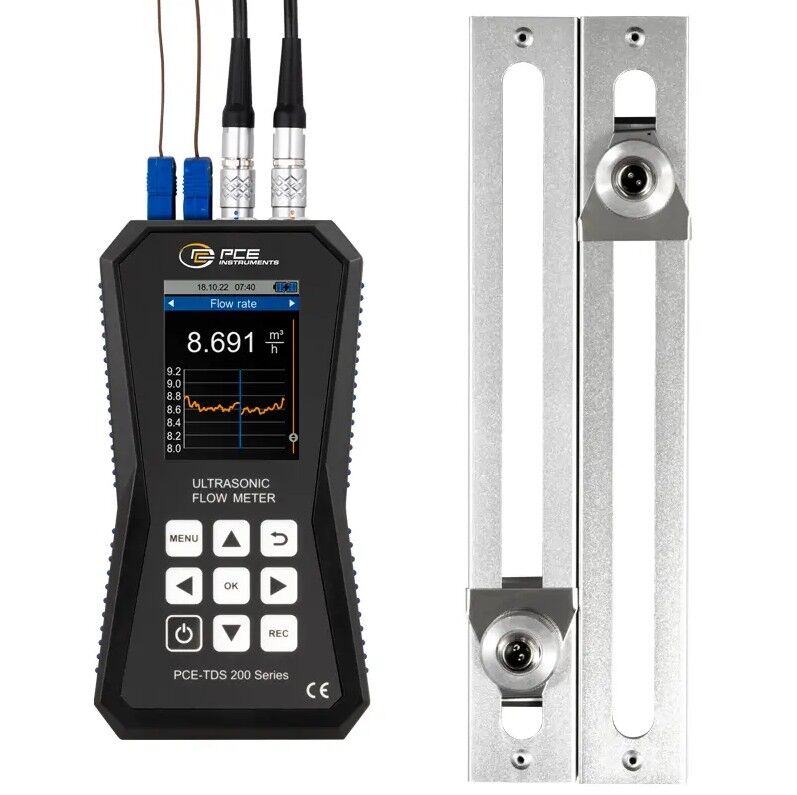

PCE Instruments PCE-TDS 200+ MR Ultrasonic flowmeter for measuring the flow, rate and volume of water or substances in pipes, measuring range of ±32 m/s
(Incl. Tax: €4,260.12)
The PCE-TDS 200+ is an ultrasonic flow meter designed for measuring flow rate and volume of water or other substances in pipes. It has an impressive measurement range of ±32 m/s, making it suitable for a variety of applications. This device is ideal for users seeking accurate and reliable flow measurements in industrial or laboratory settings. Its ultrasonic technology ensures non-invasive measurement without affecting the flow within the pipes.
This advanced ultrasonic flow meter provides a comprehensive solution for measuring flow rate and velocity across a wide operational range (±32 m/s), with exceptional repeatability (±0.5% of measured value). Accuracy ranges from 1.5% for pipes ≥50 mm to 3.5% for smaller diameters, making it suitable for various piping configurations. The system guides installation through an intuitive menu that graphically displays both signal quality and proper sensor positioning, with multiple sensor types available for pipes from DN50 up to 720 mm.
Technical specifications:
| Flow measurement | |
| Measuring range | ±32 m/s |
| Accuracy | 0,001 m/s DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s |
| Reproducibility | ±0.5 % of measured value |
| PCE-TDS 200 MR SENSOR | Sensor pair |
| Pipe diameter | DN 50 - 700 / 57 - 720 mm |
| Temperature resistance | -30 - 160 °C |
| Measuring method | Z, V, N, W |
| Medium | - water - sea water - oil - crude oil - methanol - ethanol - diesel - petrol - petroleum - user defined (manual input of the sound velocity from the medium) |
| All liquids with an impurity | <5 % |
| Pipe material | - copper CU - steel FE - stainless steel VA - aluminium AL - brass ME - cast iron CI - iron FE - nickel NI - titanium TI - zink ZI - acrylic AC - polyethylene PE - polypropylene PP - polyvinyl chloride PVC - nylon NY - user defined (manual input of the transversal sound velocity of the pipe material) |
| Inner pipe lining | - no lining - user defined - epoxy resin - rubber - mortar - polystyrene PS - polyethylene PE - polytetrafluoroethylene PTFE - polyurethane PU - polypropylene PP - user defined (manual input of the longitudinal sound velocity of the inner lining of the pipe) |
| Measurement parameters | flow velocity, volume flow and volume |
| Units (dimensions) | mm, in |
| Units (flow velocity) | m/s, ft/s |
| Units (volume flow) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Time specification | seconds, minutes, hours, days |
| Units (volume) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Temperature measurement | |
| Measuring range | Accuracy |
| Type B: 600 - 1800 °C | Type B: ±(0.5 % + 3 °C) |
| Type E: -100 - +900 °C | Type E: ±(0.4 % + 1 °C) |
| Type J: -100 - 1150 °C | Type J: ±(0.4 % + 1 °C) |
| Type K: -100 - +1370 °C | Type K: ±(0.4 % + 1 °C) |
| Type N: -100 - + 1150 °C | Type N: ±(0.4 % + 1 °C) |
| Type R: 0 - 1700 °C | Type R: ±(0.5 % + 3 °C) |
| Type S: 0 - 1500 °C | Type S: ±(0.5 % + 3 °C) |
| Type T: -100 - +400 °C | Type T: ±(0.4 % + 1 °C) |
| Resolution | 0.1 °C |
| Connectable thermocouples | B, E ,J ,K ,N ,R ,S ,T |
| Measuring parameters | flow rate, volume flow, volume, temperature, Heat output and heat quantity |
| Units (temperature) | °C / °F |
| Units (heat quantity) | K, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu |
| Units (heat output) | W, kW, MW, J/h, kJ/h MJ/h, Btu/h, kBtu/h, MBtu/h |
| Cost display | EUR, Pound, USD, Turkish Lira, Zloty, Yen |
| Further specifications | |
| 2.8" LCD | 2,8“ LCD |
| Menu | metrisch / imperial |
| Menu languages | German, English, French, Spanish, Italian, Dutch, Portuguese, Danish, Turkish, Polish, German, Turkish, Polish, Russian, Chinese, Japanese |
| Operating and storage conditions | Temperature: -20 - +65 °C Humidity: 10 - 95 % r. h., non-condensing |
| Data logger | 32 GB memory capacity / 10 million measuring points |
| Unterface | USB (for online measurement, readout of the internal memory and for recharging the battery) |
| Protection class | IP52 |
| Power supply Internal | Internal: LiPo battery (3.7 V, 2500 mAh) External: USB 5 VDC, 500 mA |
| Operating time | approx. 10 h |
| Dimensions | 165 x 85 x 32 mm |
| Weight | 255 g |
The 2.8" color LCD displays real-time flow, rate and volume measurements, with selectable units. The 32 GB internal memory can store up to 10 million data points with customizable logging intervals from 1 second to 12 hours. The USB-C interface and dedicated software enable advanced data analysis, including graphical visualization, PDF report generation and CSV export for further processing.
A standout feature is the thermal measurement capability (available on PCE-TDS 200+ model), which uses two thermocouples on supply/return pipes to calculate thermal energy exchange based on temperature differential and flow rate - particularly valuable for heating system monitoring. Magnetic sensors easily attach to metal pipes, while the guided version ensures precise positioning from -30 to +160°C.
Complete with configurable alarms and available with ACCREDIA/LAT certification or ISO calibration certificate upon request, this instrument combines metrological precision with operational versatility, making it ideal for applications ranging from industrial process control to thermal plant energy management.
Features:
- Measuring range ±32 m/s
- USB-C interface for data transfer
- Optional software for analysing the measured values
- Reproducibility ±0.5 % of measured value
- Heat quantity measurement
- Data memory for 10 million measuring points
- individually adjustable alarm limits
- optionally with ISO or DAkkS calibration certificate

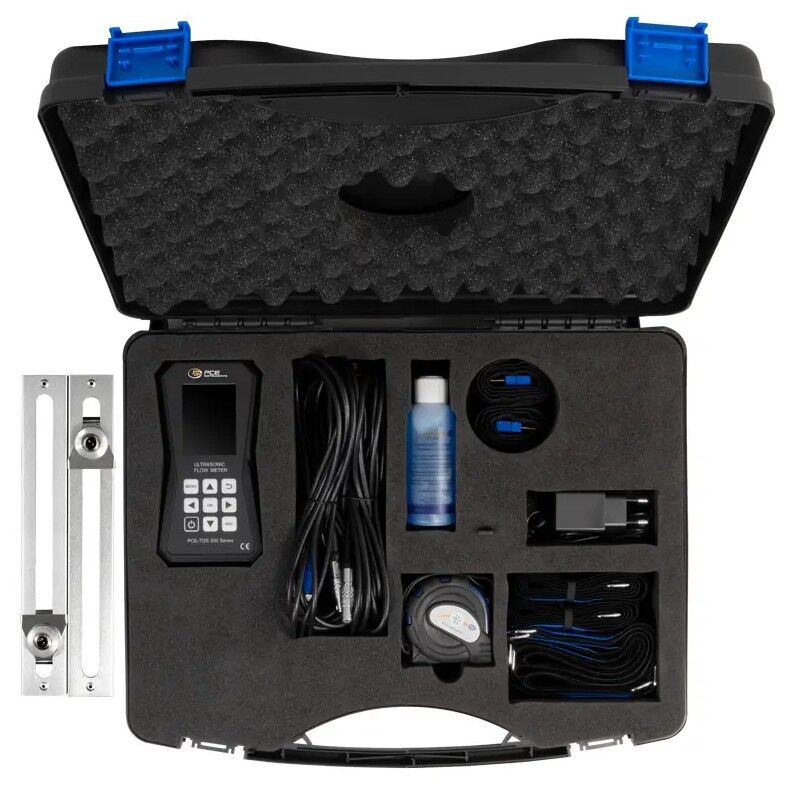

Delivery scope:
1 x Ultrasonic flow meter PCE-TDS 200+ MR

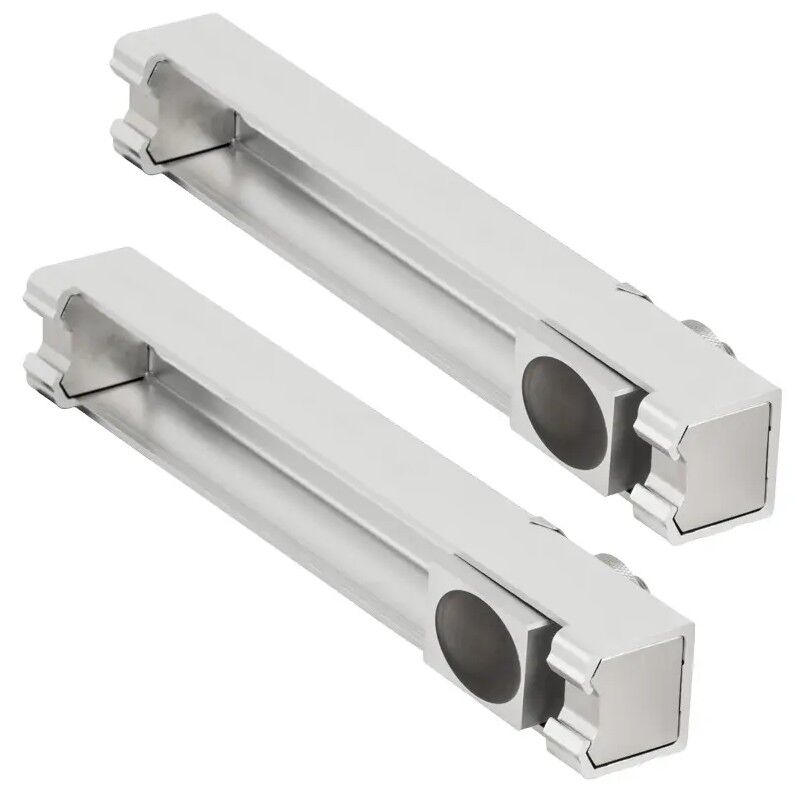

1 x Flow sensor PCE-TDS 200 MR SENSOR (pair)
2 x Temperature sensor TF-RA330
2 x 5 m connection cable
2 x detachable cable ties
1 x power supply unit
1 x USB-C cable
1 x ultrasonic contact gel
1 x PCE measuring tape
1 x plastic case
1 x instruction manual
- EAN Code:
- 4250348731418
- Typology:
- Flowmeter
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.001 m/s
- Measurements range:
- ±32 m/s
