Type	SPL and dose
Measuring range	30 - 130 dB (SPL) / 70 - 130 dB (dose, in 1 dB increments)
Dose rating levels	80, 84, 85, 90 dB
Dose exchange rate	3, 4, 5 or 6 dB
Accuracy (at 23 ± 5 ° C, < 94 dB)	± 3.5 dB (31.5 Hz) ± 2.5 dB (63 Hz) ± 2.0 dB (125 Hz) ± 1.9 dB (250 Hz) ± 1.9 dB (500 Hz) ± 1.4 dB (1000 Hz) ± 2.6 dB (2000 Hz) ± 3.6 dB (4000 Hz) ± 5.6 dB (8000 Hz)
Resolution	0.1 dB
Frequency range	31.5 - 8000 Hz
Frequency weighting	A and C
Time evaluation	125 ms (fast) / 1 s (slow)
Data logging	Manual (interval must be set to "0") or adjustable automatic
Adjustable auto logging interval	1 - 3600 s
Sampling rate	Approx. 1 second
Storage	Internal memory for up to 16,000 readings, SD card slot for 1 - 4 GB SD card (card included)
Interface	RS-232 and USB
Measurement error	≤ 0.1% of the total stored data
Measurement outside range	Display of "----"
Functions	Data hold, min / max, date / time, auto shutdown (on / off), audible alarm (on / off)
Calibration	Internal calibration possible at 94 dB with PCE-SC 42 acoustic calibrator (sold separately - see accessories)
Power supply	6 AAA Batteries or optional power supply
Operating conditions	0 - +50 ° C (+32 - +122 ° F), < 85% RH
Display	Backlit LCD, 50 x 30 mm (1.97 x 1.18")
Microphone	Electric condensation / Ø 12.7 mm (0.5")
Approx. device weight	250 g (0.56 lb)
Approx. device dimensions	132 x 80 x 32 mm (5.20 x 3.15 x 1.26")



The PCE-NDL 10-ICA data logger is a highly specialized portable device designed for measuring the sound level across a wide range of applications. This innovative tool stands out for its precision and versatility, making it ideal for professionals working in industrial, environmental, and research sectors. Thanks to its adjustable sampling frequency, which can vary from 1 to 3,600 seconds, the data logger allows for tailored data recording to meet the specific needs of the analysis, ensuring reliable and detailed results.



The PCE-NDL 10-ICA supports both A and C frequency evaluation, allowing for accurate measurement of various sound components and facilitating acoustic analysis. The Fast and Slow modes provide additional flexibility, enabling users to choose the recording speed that best suits their operational context. This is particularly useful in situations where rapid fluctuations in sound levels need to be monitored or when a slower, more detailed assessment is required.



To optimize result analysis, the data logger features an internal memory capable of recording up to 16,000 values, ensuring ample storage space for collected data. Additionally, an SD memory card slot is available, further expanding the recording capacity and ensuring there are no limits to data collection. This feature is crucial for applications requiring long monitoring sessions or analysis of large data volumes.



Using the PCE-NDL 10-ICA is an intuitive and straightforward process: once measurements are taken, results can be viewed via the RS-232 and USB interface, allowing for quick and efficient data transfer. The ease of connection to computers and other devices enables immediate analysis of collected information, facilitating the generation of detailed reports and integration with other monitoring systems.



Furthermore, this data logger complies with ISO certification standards, ensuring it meets high standards of safety and performance essential for use in professional and industrial settings. Compliance with these standards not only reassures users about the quality of the device but is also crucial for engineers and technicians operating in sectors where exposure to noise poses a health and safety risk.



It is important to note that once the maximum memory capacity is reached, new values will overwrite already stored data, which may result in the loss of valuable information. Therefore, users must pay attention to data management to ensure important information is not accidentally deleted.



The PCE-NDL 10-ICA proves to be an indispensable tool for companies and professionals needing to accurately monitor sound levels. Its applicability in industrial and laboratory environments, where ensuring a safe and compliant work environment is essential, makes it a valuable ally. Additionally, the ability to record both automatically and manually offers great flexibility during measurements, allowing users to choose the method that best suits their specific needs.



The backlit LCD display allows for easy reading of data even in low-light conditions, ensuring that information is always accessible and clear. In situations where measurements must be taken at multiple points or noise sources, this feature becomes particularly useful, simplifying the analysis process.



Thanks to its robustness and precision, the PCE-NDL 10-ICA is an ideal choice for engineers, technicians, and professionals who need to monitor and analyze environmental acoustic conditions. The ability to provide real-time data and its practical design make it an essential element in ensuring a healthy work environment compliant with regulatory standards. By using this tool, operators can identify and manage potential noise exposure sources, contributing to creating safer and more responsible workspaces concerning health and safety. In summary, the PCE-NDL 10-ICA is a valuable ally in the fight against noise exposure, essential for anyone operating in sensitive environments and wishing to maintain high safety and protection standards.



- Low sampling rate
- Automatic or manual storage
- Storage interval selectable
- Backlit LC display
- Dose measurement or SPL measurement
- incl. ISO Calibration Certificate

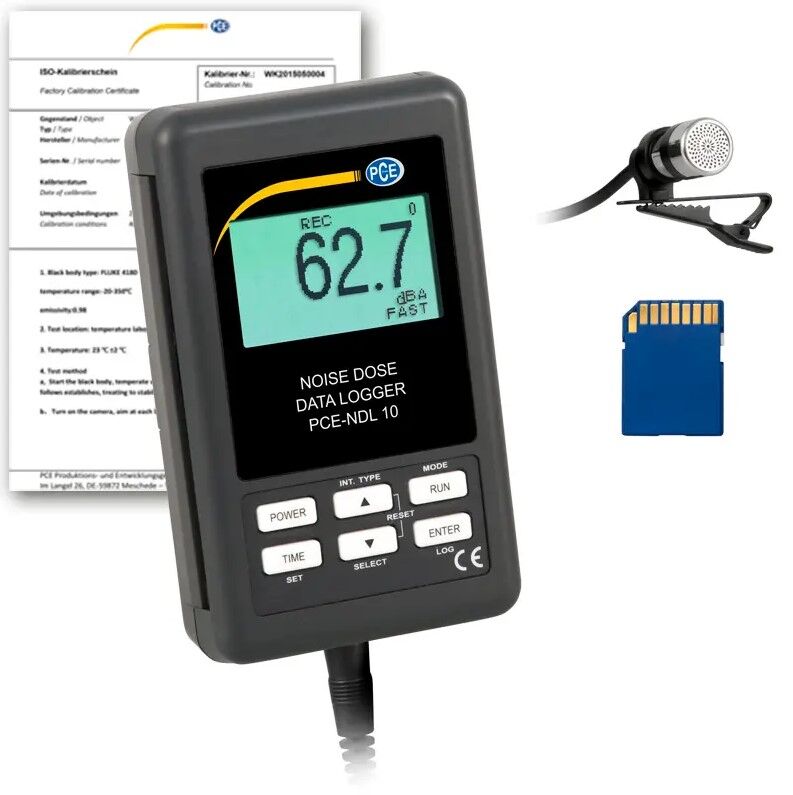

1 x PCE-NDL 10-ICA dB data logger

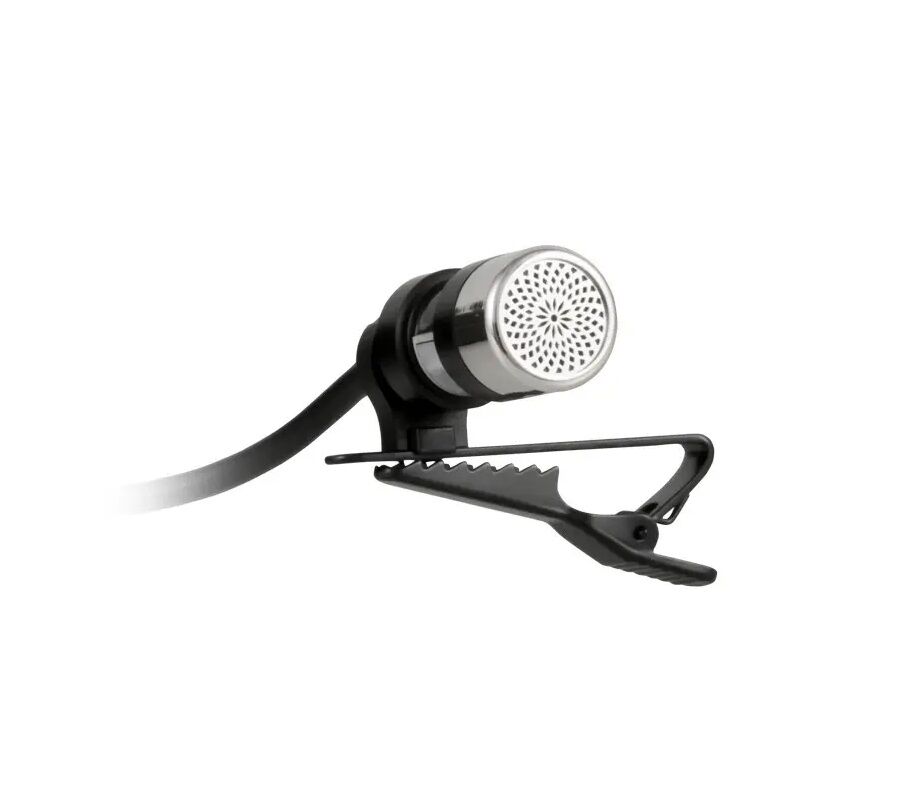

1 x microphone with clip
1 x SD card
1 x carrying case
1 x carrying strap
1 x user manual
1 x ISO Calibration Certificate
