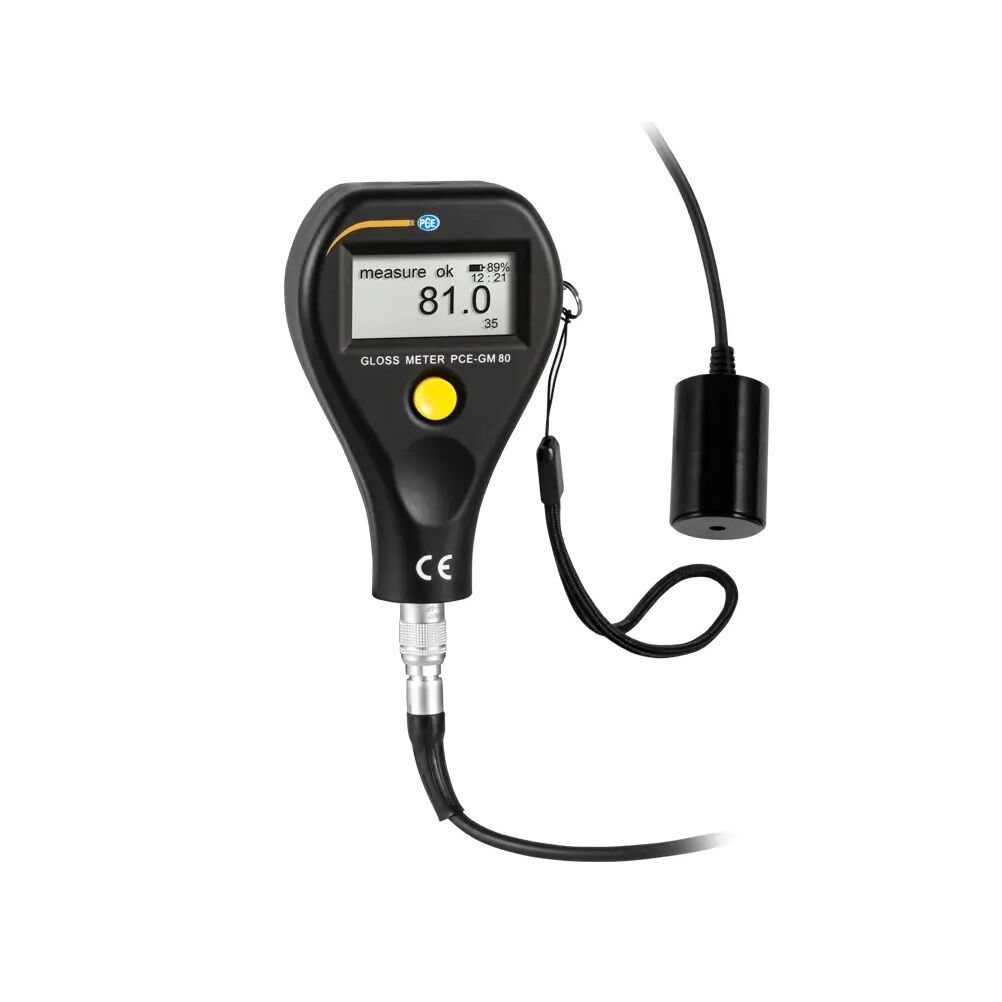

PCE Instruments PCE-GM 80 Gloss meter with external gloss sensor - Measuring surface Ø4.5 mm
In stock
SKU
PCE-GM-80
€630.40
(Incl. Tax: €769.09)
(Incl. Tax: €769.09)
The gloss meter is equipped with an external gloss sensor. The measuring surface of Ø 4.5 mm of the surface Testing also makes a significant contribution to being able to carry out measurements on small surfaces that are difficult to access. With the supplied calibration reference, the gloss meter can be checked at any time. With an accuracy of 1%, the surface Testing is a high-precision measuring device.
The one-button operation enables quick and easy operation of the gloss meter. Another special feature of thesurface Testing is the data storage function. With this data storage function, the measured values are saved. The measured values are then read out from the gloss meter using a PC. For this purpose, a direct USB connection can be established with the surface Testing and a PC. The installation of a driver or software is not required because the data from the gloss meter is saved directly as a text file. In addition to the measured value, a time stamp from the surface Testing is also saved.
- External removable sensor
- Data storage for later analysis
- Measuring range up to 1000 GU
- Micro USB interface for PC connection
- Simple one-button operation
- Precise measurements thanks to high accuracy
- Data storage for later analysis
- Measuring range up to 1000 GU
- Micro USB interface for PC connection
- Simple one-button operation
- Precise measurements thanks to high accuracy
Specification:
| Measuring range | 100 ... 1000 GU |
| Resolution | 1 GU |
| Repeatability | 0.5 % |
| Accuracy | 1 % |
| Measuring range | 0 ... 99.9 GU |
| Resolution | 0.1 GU |
| Repeatability | <0.45 GU |
| Accuracy | <1 GU |
| Measurement geometry | 60° |
| Measuring surface | Ø4.5 mm |
| Data storage | 1245 measured values |
| Interface | Micro USB |
| Power supply | 2 x 1.5 V AAA batteries |
| Environmental conditions | 0 ... 40°C / 32 ... 104°F, <85 % r.H. non condensing |
| Dimensions | ca. 115 x 65 x 25 mm / 4.5 x 2.5 x 1 in |
| Weight | 100 g / 3.5 oz |
| Standards | GB9754-88, GB9966.5, ISO2813, JJG696-2002 |

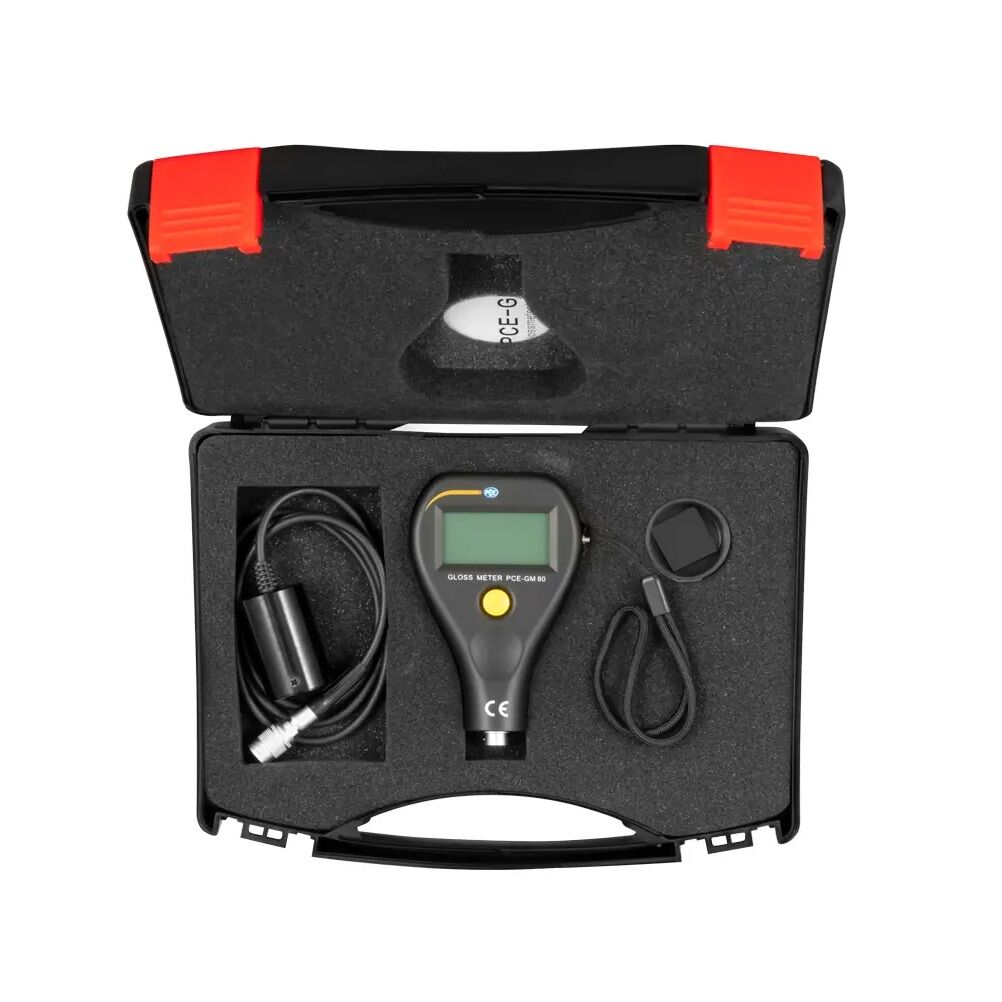

Delivery scope:
1 x Gloss Meter PCE-GM 80
1 x Calibration reference
1 x Cleaning cloth
1 x Transport case
2 x 1.5 V AAA batteries
1 x User manual
1 x Calibration reference
1 x Cleaning cloth
1 x Transport case
2 x 1.5 V AAA batteries
1 x User manual
- EAN Code:
- 4250348722652
- Typology:
- Glossmeters
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 1 GU
- Measurements range:
- 0 - 1000 GU
