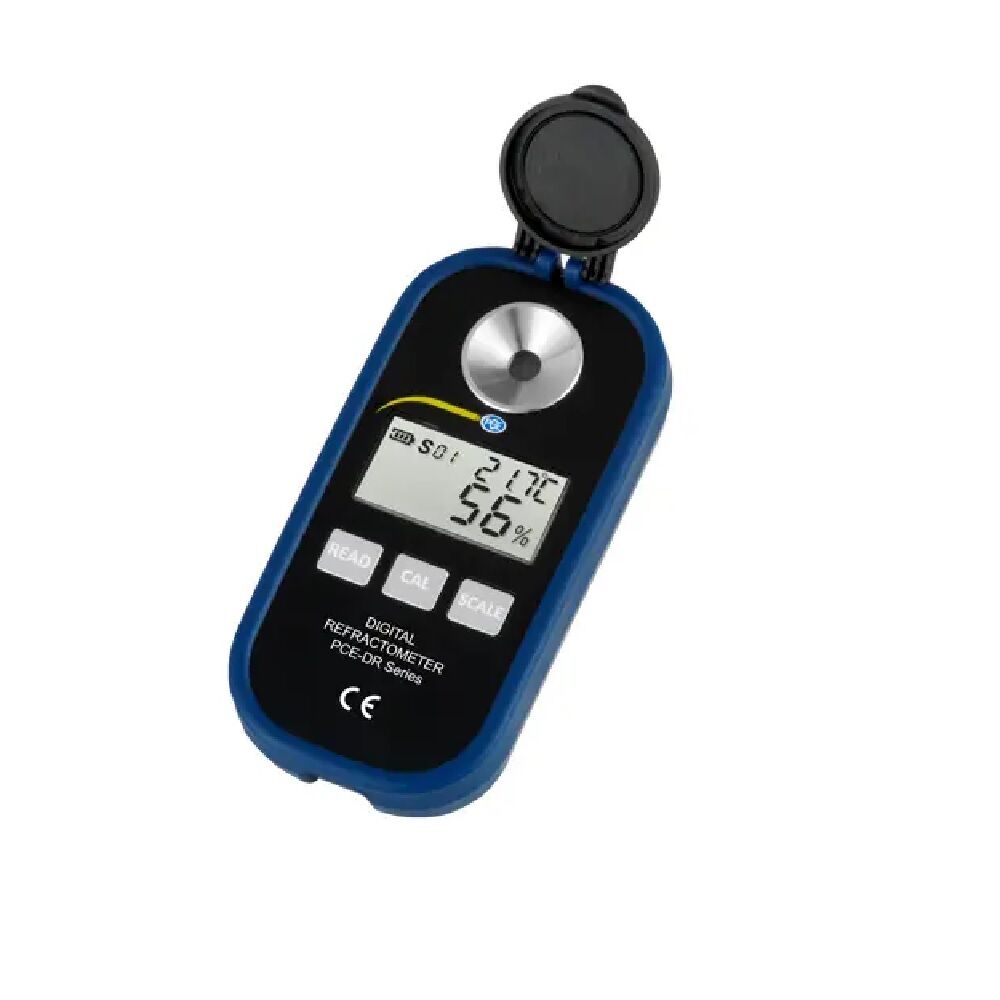

PCE Instruments PCE-DRW 1 Handheld waterproof digital refractometer impermeabile to determine the sugar content of wine
(Incl. Tax: €416.43)
The digital refractometer is specially designed to determine the sugar content of wort using a small amount of sample. It is based on measuring the refractive index of a liquid. To obtain a meaningful result, simply place a few drops of the liquid in the stainless steel well. The built-in light source prevents measurement errors that occur when using an analogue refractometer and that are caused by artificial light, such as fluorescent lamps.
- Fast and accurate measurement in approx. 1 s
- Large LCD display (measured value and temperature)
- ABS housing with IP 65 protection
- Easy to use (only three keys)
- Small sample size
- Easy to calibrate with distilled water
- Automatic temperature compensation
- Stainless steel sample holder with glass prism
- Battery status indicator
- Automatic switch-off after 1 min. of inactivity
After temperature compensation (10-40 °C), the measured value is displayed quickly and accurately on the easy-to-read LCD display. The operator can choose between two different units of measurement: Brix (0-50.00%) and Wort D20/20 or relative density (1,000-1,130). The liquid temperature value can also be shown on the display.
The refractometer has a plastic cap to close it and is designed so that the glass prism is protected from damage. It consists of 3 buttons that ensure convenient and simple operation, virtually ruling out the possibility of a malfunction, and has an automatic switch-off function to prolong battery life. The wine refractometer automatically switches off after 1 minute of inactivity.
The user can calibrate the refractometer at any time by placing a few drops of distilled water in the sample well and pressing the corresponding button to start calibration.
| Specifiche tecniche | |
| Temperature compensation (ATC) | Automatic 10 ... 40 °C |
| Measurement speed | Approx 1 sec |
| Sample size | 4-5 drops of liquid |
| Sample well | Stainless steel ring over glass prism |
| Housing | ABS plastic, IP65 ingress protection rating against water and dust |
| Power supply | 1 x 1.5V AAA battery |
| Automatic switch-off | Dopo 1 min. di inattività |
| Degree of protection | IP 65 |
| Dimensions | Approx. 121 x 58 x 25 mm / 4.76 x 2.28 x 0.98" |
| Weight | Approx. 90 g / 0.2 lb (without battery) |
| Measuring range | |
| Brix | 0 ... 45,00% |
| %VOL AP | 0 ... 22,00% |
| Oechsle | 3 ... 150 |
| KMW | 0 ... 25,00 |
| Resolution | |
| Brix | 0,10% |
| %VOL AP | 0,10% |
| Oechsle | 1 |
| KMW | 0,1 |
| Accuracy | |
| Brix | ±0,2% |
| %VOL AP | ±0,2% |
| Oechsle | ±2% |
| KMW | ±0,2 |
1 x pipette
1 x prism cover
1 x 1.5V AAA battery
1 x user manual
1 x carrying case
- EAN Code:
- 4250348716903
- Typology:
- Refractometer
- Brand:
- PCE INSTRUMENTS
