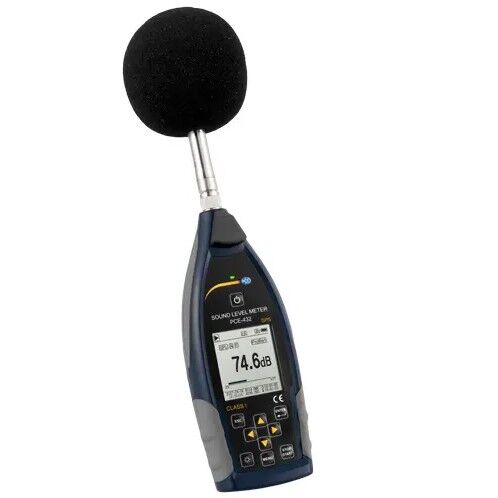

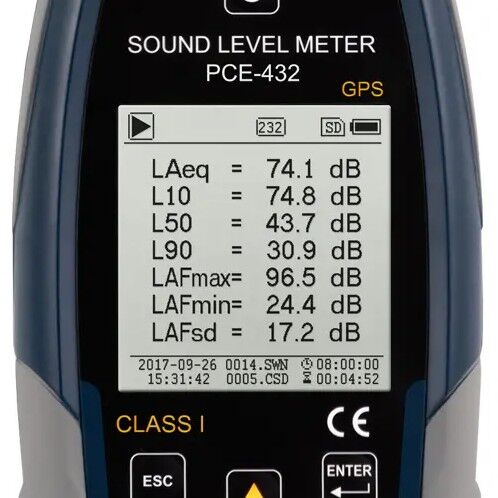

PCE Instruments PCE-432-EKIT Sound level meter with GPS and kit for outdoor measurements, built-in data logger, measuring range from 22 to 136 dB(A)
(Incl. Tax: €6,270.71)
The PCE Instruments PCE-432-EKIT is a Class 1 professional sound level meter with built-in GPS and an outdoor measurement kit for long-term monitoring in harsh weather. Measuring range 22 … 136 dB(A), frequency range 3 Hz … 20 kHz, with octave-band analysis (optional 1/3 octave). It features an integrated data logger to micro SD, graphical display, and USB connectivity for fast download and analysis.
The PCE-432 Class 1 sound level meter is designed for noise measurement and frequency analysis in accordance with major international standards. The integrated GPS receiver allows each measurement to be linked to a precise location—ideal for environmental surveys, site assessments and extended monitoring campaigns.
An internal data logger stores measurements on a micro SD card. Data can be reviewed on a PC via USB connection or by reading the memory directly. The instrument supports frequency weightings A, B, C, Z and time weightings Fast, Slow, Impulse, Peak, with configurable limits and alarms. Octave-band filters help identify small spectral differences; an optional upgrade enables 1/3 octave analysis.

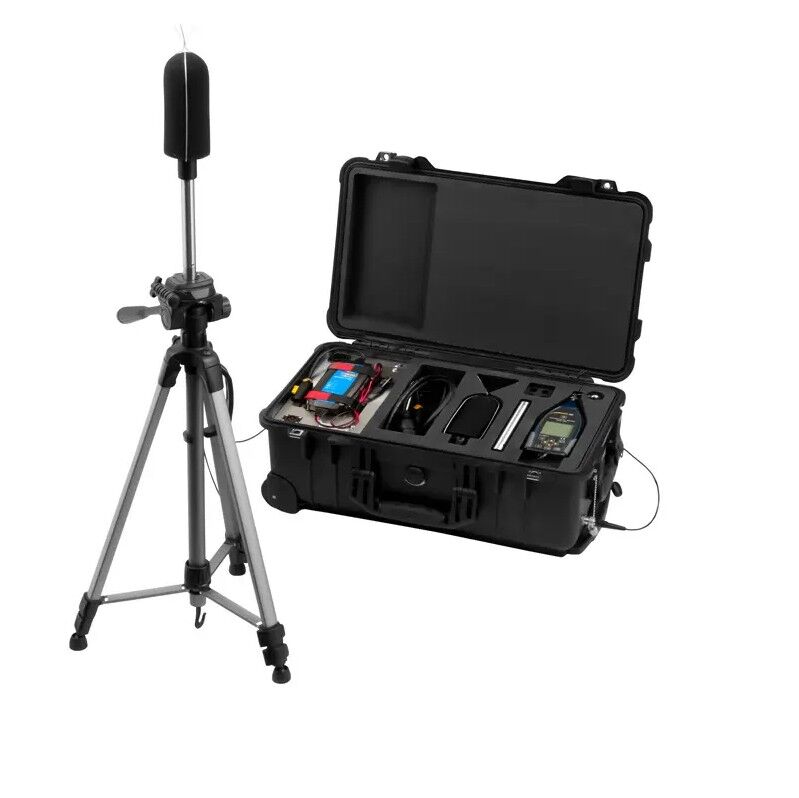

The PCE-4xx-EKIT outdoor kit includes a watertight Peli wheeled case, external microphone/power connections and internal batteries for up to 10 days of autonomous operation. The case can remain closed during outdoor measurements, enabling reliable operation in rain, snow or hail. Accessories include microphone wind/water protection, metal mesh and a tripod for outdoor positioning.
Technical specifications
| Parameter | Value |
|---|---|
| Measuring range | 22 … 136 dB(A) |
| Class / accuracy | Class 1 |
| Frequency range | 3 Hz … 20 kHz |
| Standards | GB/T3785.1-2010; GB/T3785.2-2010; IEC60651:1979; IEC60804:2000; IEC61672-1:2013; ANSI S1.4-1983; ANSI S1.43-1997 |
| Frequency analysis | Octave bands: 8 Hz … 16 kHz; 1/3 octave (opt.): 6.3 Hz … 20 kHz |

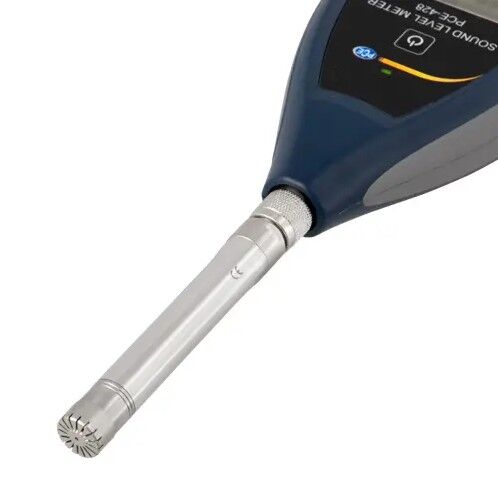

| Microphone | 1/2" Class 1; sensitivity 40 mV/Pa; TNC connection; ICCP standard supply |
| Integration time | 1 s … 24 h (adjustable) |
| Frequency weighting | A, B, C, Z |
| Time weighting | Fast (F), Slow (S), Impulse (I), Peak |
| Functions (values) | LXY(SPL), LXYSD, LXSEL, LXE, LXYmax, LXYmin, LXPeak, LXN |
| Statistics N | 1 … 99% |
| 24 h measurement | Automatic with data logging |
| Self-noise | Microphone: 19 dB(A), 25 dB(C), 31 dB(Z) / Electronics: 13 dB(A), 17 dB(C), 24 dB(Z) |
| A/D converter | 24 Bit |
| Sampling | Standard: 48 kHz / LN mode: 20 ms |

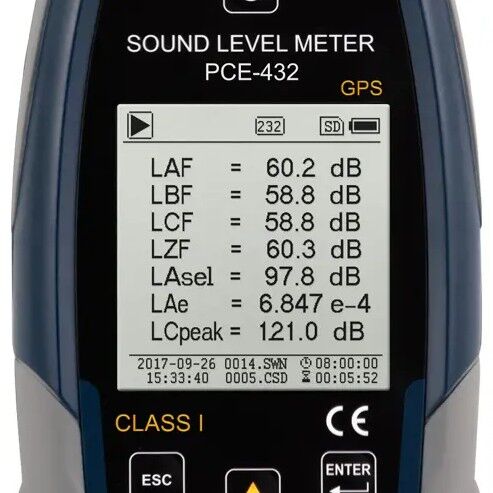

| Value display | Numeric / Bar graph / Graph |
| Display | Backlit LCD, 160 × 160 pixels |
| Memory | 4 GB micro SD card |

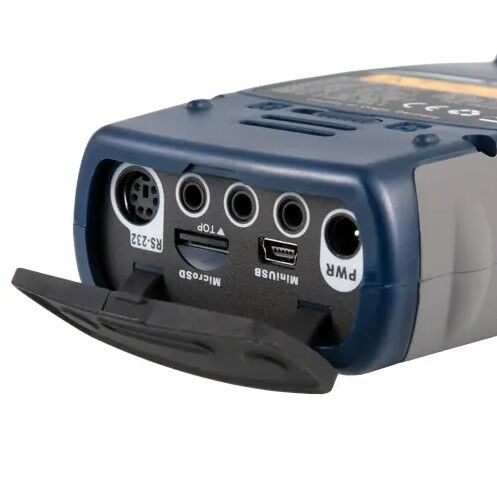

| Interfaces | USB (software readout or mass storage) / RS-232 |
| Voltage output | AC 5 V RMS / DC 10 mV/dB |
| Alarm | Adjustable |

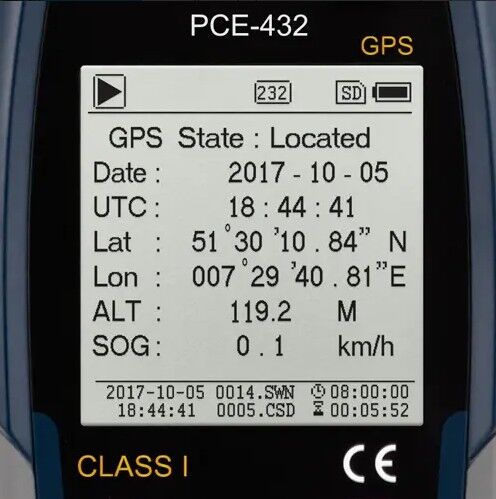

| GPS | Built-in GPS receiver for position tagging |
| Power supply (meter) | 4 × 1.5 V AA batteries / 12 V 1 A adapter / 5 V 1 A USB |
| Battery life (meter) | Minimum 10 h |
| Dimensions (meter) | 70 × 300 × 36 mm (L × H × D) |
| Weight (meter) | Approx. 620 g (incl. batteries) |
| Transport case | PELI 1510 wheeled case |
| Outdoor kit – connections | Microphone: TNC / Power: 12 V XLR / 110–230 V: PowerCon TRU |
| Charger (kit) | Victron Blue Smart 12 V / 4 A – IP65 |
| Internal batteries (kit) | 2 × 12 V / 12 Ah |
| Autonomy (kit) | Minimum 10 days |
| Mains supply (kit) | With charger: 180 … 265 V AC / On battery: 2 × 12 V / 12 Ah |
| Cable lengths (kit) | Mic cable: 2 m (TNC) / Power cable: 2 m (PowerCon TRU) |
| Dimensions (kit) | 56 × 35 × 23 cm |
| Weight (kit) | With batteries: approx. 14 kg / Without batteries: approx. 8 kg |
Features:
- 1/1 octave band included
- 1/3 octave band optional
- Accuracy class 1
- Integrated GPS receiver
- A, B, C & Z frequency rating
- Fast, Slow, Pulse and Peak time weighting
- Statistics function

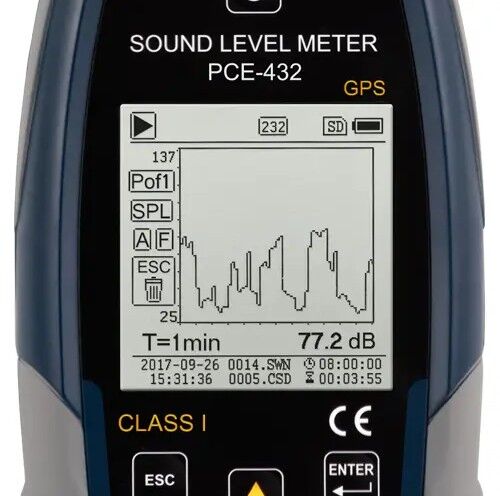

- Display of the sound profile as a graph
- 3 measuring profiles adjustable
- Low inherent noise
- ICCP microphone 40 mV /PA
- Alarm level adjustable
Delivery scope:
1 x IoT Meter PCE-432-EKIT incl. Outdoor Noise Level Meter Kit
1 x 1/2" measurement microphone class 1
1 x Wind noise suppression (foam ball)
1 x USB interface cable
1 x Software is a free download
1 x Power adapter
1 x Suitcase
1 x User manual
1 x Outdoor Noise Level Meter Kit PCE-4xx-EKIT
1 x Waterproof PELI transport case
1 x Wind and rain protection for microphone of the PCE-4xx series
1 x Charger for internal batteries
2 x 12 V lead gel batteries

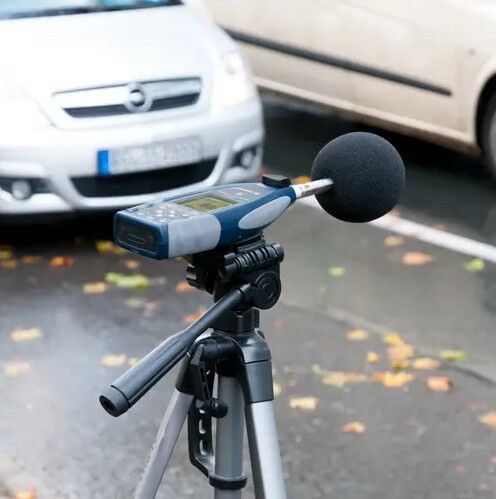

1 x Tripod
1 x 2 m / 6ft 6" microphone cable
1 x Connection cable for power supply (optional Schuko or US connection)
Note: The outdoor SPL meter PCE-432-EKIT comes with octave band filter. Optionally upgrade with a 1/3 octave band filter
- EAN Code:
- 4250348718815
- Typology:
- Octave Bands
- Brand:
- PCE INSTRUMENTS
- Measurements range:
- 22 - 136 dBA
