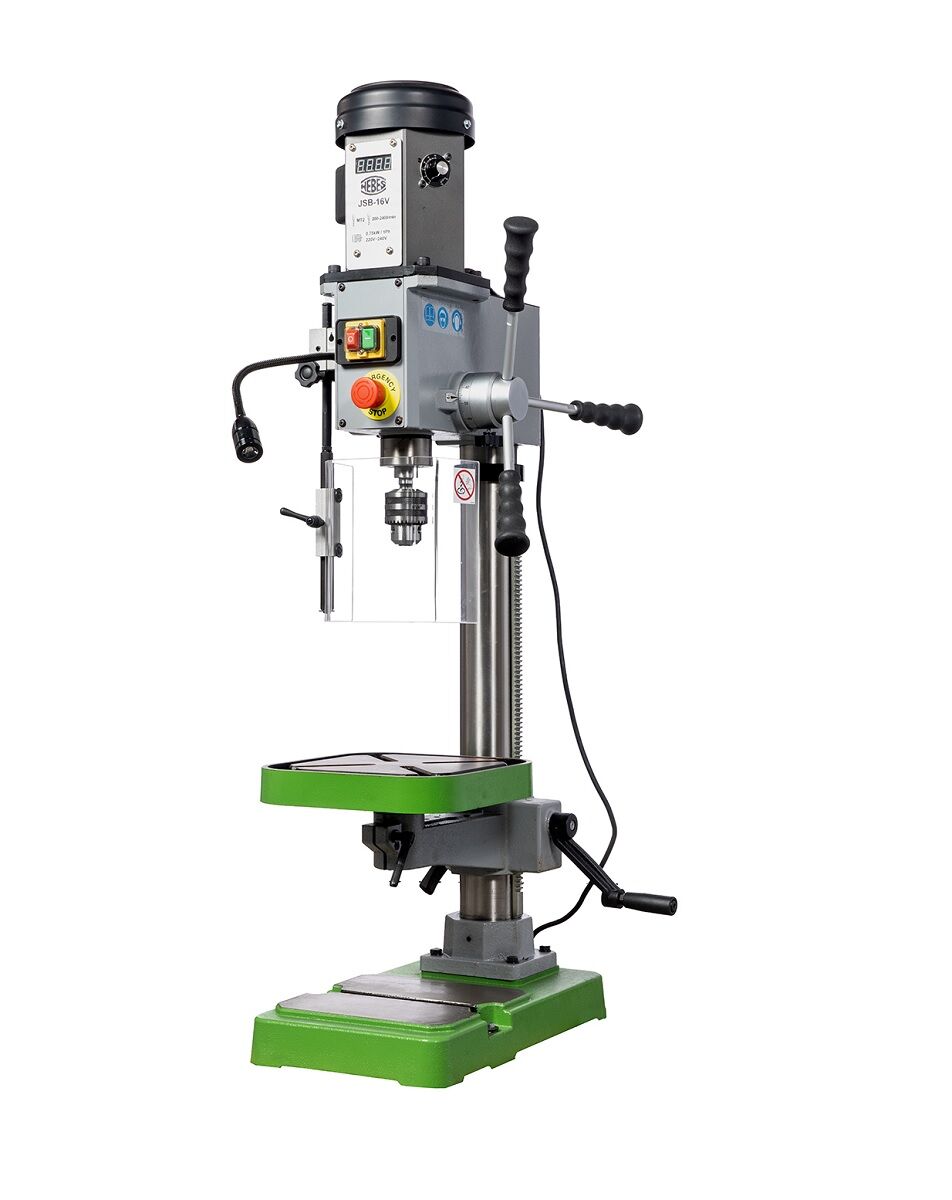

NEBES TC16B Bench drill with brushless direct drive motor, Single phase motor, MT2 spindle taper, Drilling capacity Steel 16mm and Cast iron 16mm
(Incl. Tax: €1,664.08)
The TC16B drill is the first single-phase benchtop drill to be included in Nebes Elettromeccanica's house. The version that is offered is single-phase. The motor is brushless direct-drive DC therefore it results without pulleys or belts. All this makes operation as simple and practical as possible.
The NEBES TC16B single-phase bench drill is an ideal choice for those seeking reliability and convenience in the workshop. Using brushless direct-drive technology, it eliminates the need for belts and pulleys, ensuring smoother and quieter operation. Its solid and compact design makes it perfect for a variety of applications, ensuring precision and ease of use in even the most demanding work. Suitable for professionals and enthusiasts alike, it offers an intuitive and uncomplicated user experience with consistent performance over time.
| TECHNICAL DATA: | |
| Drilling capacity | Steel 16 mm Cast iron 16 mm |
| Spindle taper | MT2 |
| Spindle travel | 92 mm |
| Quill diameter | Ø 52 mm |
| Column diameter | Ø 80 mm |
| Transmission | Direct (no belt, no pulleys) |
| Spindle (rpm) | 200-2.400 RPM |
| Motor | 750 W |
| Table size (L x W) | 280x280mm |
| Width on t-slots | 13 mm |
| Hollow on t-slots | arranged in a cross |
| Drill dimensions | 280×470+1190h (overall dimensions of right-side knobs 410 in protrusion) |
| Packaging dimension | 650x400x1080h |
| Weight | 80 kg |
- Brand:
- NEBES Elettromeccanica
- Application:
- 220-240V Single-phase
- Typology:
- Drill press
- Machine Type:
- TC16B
