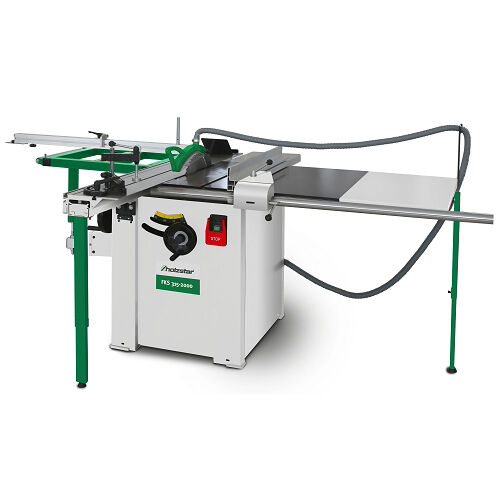

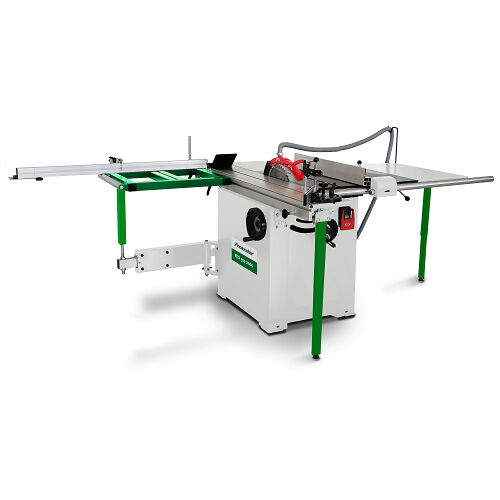

HOLZSTAR 5900317 - Circular saw Model FKS 315-2000 E - complete with accessories - max blade diameter 315 mm
(Incl. Tax: €4,834.49)
The circular saw model FKS 315-2000 E is designed to ensure precision and stability during cutting, thanks to its robust construction with a cast iron sliding table that reduces vibrations. The crosscut guide is removable and can be adjusted from -45° to +45° with a stop position, while the blade, adjustable from 0° to 45°, allows for precise cuts. The powerful motor ensures consistent performance, even with cuts up to 100 mm in height. The saw is equipped with a long table and extension for cuts up to 1350 mm, with an aluminum parallel guide mounted on a round guide rail.
Included:
· Aluminum sliding table
· Sliding rollers on the arm
· Parallel guide on round guide bar
· Front table extension
· Side table extension
· Folding stop
· Eccentric clamping system
The FKS 315-2000 E circular saw is a high-precision tool essential for professional woodworking. Carpenters, joiners, artisans, and workshop operators are the primary users of this powerful device, which is perfectly suited for a wide range of tasks, from simple jobs to more complex ones.
Its extractable and adjustable cross guide, which allows for tilts from -45° to +45°, enables users to make angular cuts with great precision, using preset stop positions. Thanks to the sturdy construction with a cast iron sliding table, the machine significantly reduces vibrations, ensuring smooth and precise operation, which is crucial for obtaining straight cuts and avoiding errors. This makes it ideal for work that requires great attention to detail, such as furniture production or wooden structural components.
Features:
| Maximum blade diameter | 315 mm |
| Maximum cut 90°/45° | 100 / 80 mm |
| Cutting width with stop | 1220 mm |
| Blade tilt | 90° - 45° |
| Maximum cutting length | 2000 mm |
| Table dimensions | 680x580 mm |
| Table height | 870 mm |
| Table extension | 310x500 mm |
| Speed | 4000 rpm |
| Motor power 400 V 50 Hz | 4.0 kW |
| Diameter of suction nozzle (upper-lower) | 38 / 100 mm |
| Dimensions | 4330x4155x1150 mm |
| Weight | 260 kg |

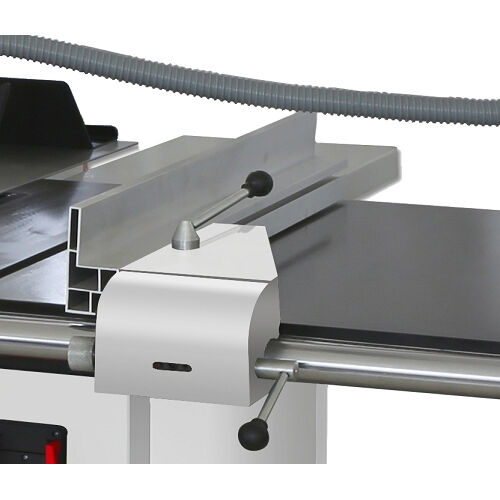

The powerful motor allows the saw to operate effortlessly even during high-depth cuts, up to 100 mm. Additionally, the blade height is easily adjustable via a handwheel, as is the blade tilt, which can be set between 0° and 45°, adapting to various cutting needs. For larger pieces, the table extension allows work on materials up to 1350 mm in length, providing a large parallel guide in aluminum, mounted on a round guide bar with eccentric, ensuring precise and stable material feed.
This saw is designed to provide continuous operation, maintaining high performance even during long working sessions. The heavy base and solid table with extractable arm and rollers offer exceptional stability, while the angular guide and the locking device, which move along the entire length of the carriage, ensure optimal control. For cutting work, the upper and lower dust extraction nozzles efficiently manage chips and debris, keeping the work environment clean and safe.
This saw is used by professionals who require reliable equipment for precise, clean, and safe cuts, capable of handling large materials with ease and versatility. When used in workshop environments, it meets all the demands for more complex tasks, such as furniture making, wooden structure creation, or precision cuts for furniture components.
- Brand:
- HOLZSTAR
- Application:
- 380-400V Three Phase
- EAN Code:
- 8032819348280
- Typology:
- Circular saw
- Power:
- 3.5 kW
