The RUPAC Classic-Line Swiss Made magnetic dial indicator stand is a professional solution designed for dimensional and geometric inspection in industrial environments, mechanical workshops and metrology laboratories. Intended for use with Ø8 mm stem analog dial indicators, the system enables accurate and repeatable measurements on machined components, ensuring reliable control of flatness, concentricity, run-out, parallelism and geometric deviations.

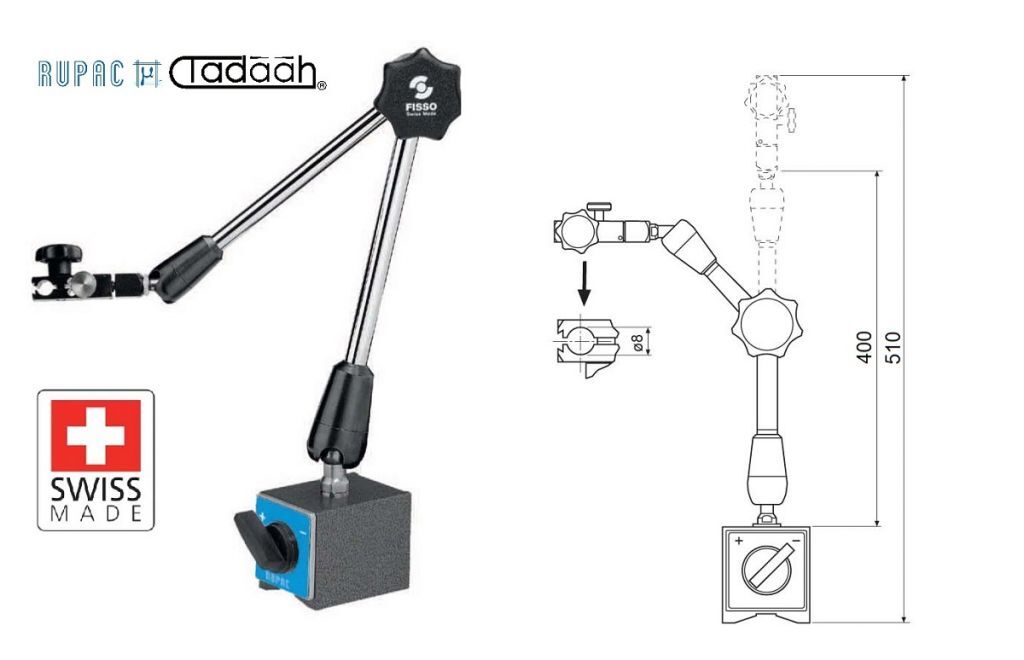

This model features a fully articulated structure with a double jointed arm, providing excellent flexibility and allowing optimal positioning of the measuring instrument even in hard-to-reach areas. The 400 mm working radius and 510 mm total height make it suitable for medium to large components typically found in turning, milling and grinding operations, offering high versatility in industrial applications.

The arms are chrome-plated for high wear resistance, ensuring long-term durability and consistent precision. The fully mechanical central locking system secures all joints simultaneously, maintaining high structural stability during measurement operations and preventing unwanted movement.

The stand includes a fine micrometric adjustment system, allowing extremely precise positioning of the dial indicator relative to the measured surface. With an adjustment sensitivity of approximately 1.3 mm per revolution, operators can perform fine corrections during setup and zeroing, improving measurement accuracy. This feature is essential for detecting transmission play, dimensional variations, form errors and geometric deviations.

The RUPAC permanent magnetic base with V-groove prism ensures secure mounting on both flat and cylindrical surfaces such as shafts or pipes. The base dimensions 50 × 55 × 68 mm allow use in confined spaces, while the 600 N vertical pull-off force guarantees strong magnetic holding during measurement operations.

The system is compatible with Ø8 mm dial indicators and also includes a dovetail mount for test indicators, increasing versatility with different measuring instruments. The ergonomic design allows quick and precise adjustments, improving efficiency in quality control operations.

Thanks to its Swiss Made construction quality, precision adjustment and robust design, this magnetic stand is an essential tool for technicians, engineers, machine tool manufacturers and maintenance specialists. It enables accurate inspection throughout production processes, supporting high quality standards in precision engineering and automotive industries.
