Dimensions	177 x 68 x 45 mm
SD card capacity	8 GB (slot up to 16 GB)
Measurement units	°C/°F - T1, T2, T3, T4, T1-T2
Temperature with Pt 100 Ohm probe	-200/850 °C
Minimum temperature	-100 °C
Maximum temperature	1,300 °C
Accuracy	± 0.4% + 1 °C

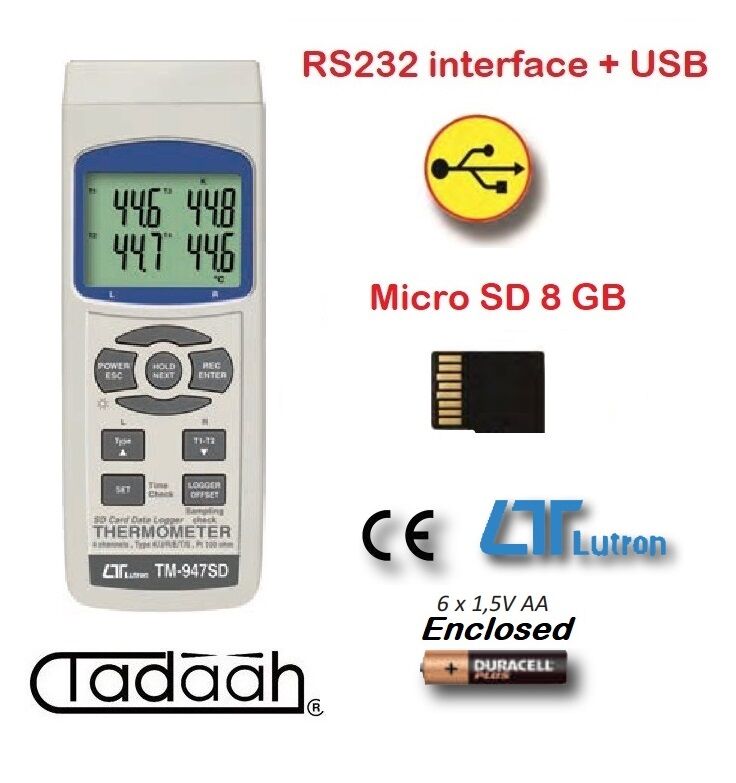

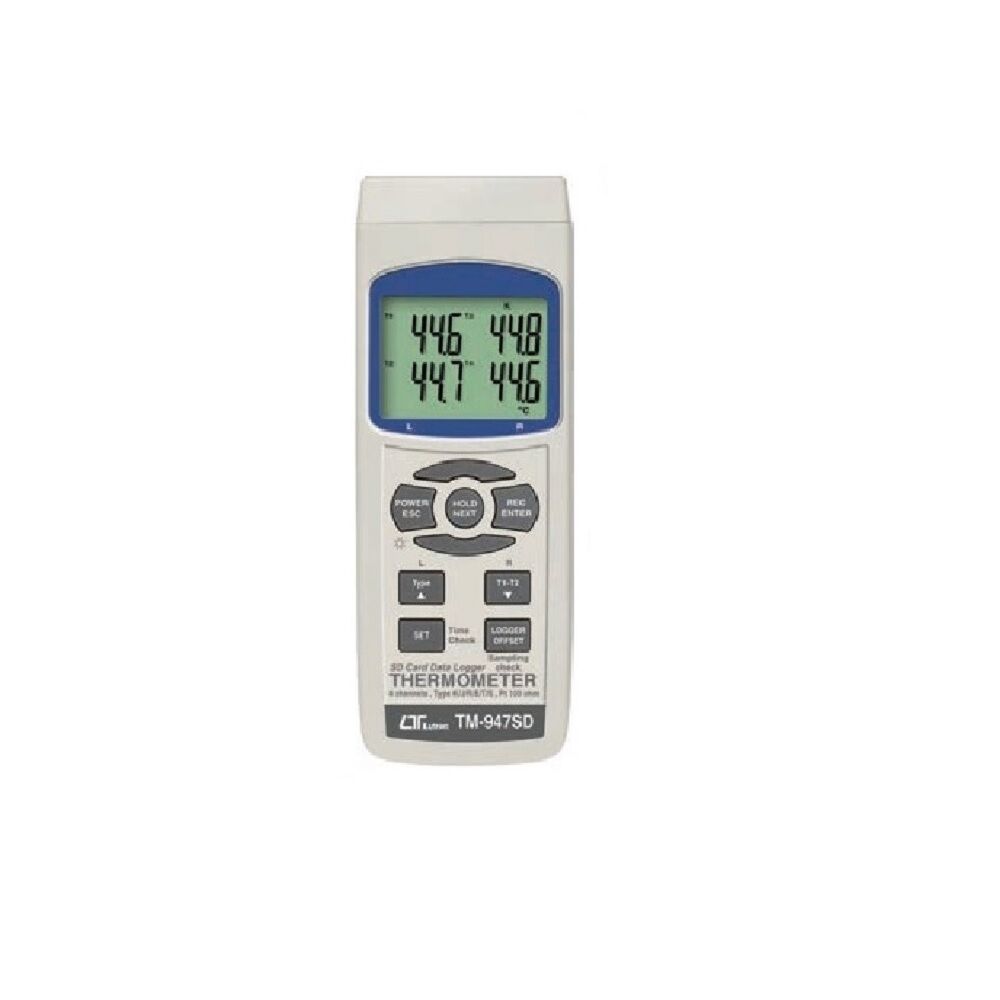

The 4-channel thermometer for K/J/T/E/R/S and Pt 100 Ohm probes is a professional tool designed for precise temperature measurements in various applications. This device can simultaneously monitor up to four probes, allowing precise measurements in different points or in environments with complex thermal variations.

Advanced features such as support for K, J, T, E, R, S, and Pt 100 Ohm probes allow a wide temperature range, from -200°C to 1300°C, with an accuracy of ±0.4% + 1°C. With the ability to work in both Celsius (°C) and Fahrenheit (°F), and comparison functions such as T1-T2, the user can monitor temperature differences between various measurement points, ensuring accurate and reliable readings.

The use of the Pt 100 Ohm probe allows for extremely low temperatures to be detected, down to -200°C, making this thermometer suitable for critical sectors such as cryogenic or industrial applications, where high thermal sensitivity is required. Conversely, K and R type probes can be used for measurements at higher temperatures, up to 1300°C, typical of metallurgical applications or high-temperature industrial processes.



The device is equipped with an SD card slot up to 16 GB, allowing data collection to be saved directly onto the card, thus simplifying long-term monitoring and temperature analysis. This is particularly useful in testing or production environments, where it is important to track thermal variations over time. Additionally, its compact structure, with dimensions of 177 x 68 x 45 mm, makes it easily portable and adaptable to various operational contexts.

Typical applications include manufacturing, research and development, industrial process monitoring, HVAC system thermal regulation, and temperature control in chemical labs or cryogenic environments. Thanks to its versatility, it is an indispensable tool for engineers and technicians requiring accurate temperature measurement in complex situations and across multiple points simultaneously.

The 4-channel thermometer is used by connecting the probes to the respective inputs and selecting the type of probe to be used, ensuring compatibility with various measurement needs. Readings can be displayed in real-time on the display or stored for later analysis. The wide temperature range and precision make this thermometer ideal for those needing continuous and reliable thermal monitoring in sectors where temperature is a critical parameter for process quality and safety.

Probes sold separately:
Type K: 963.001 - 963.002 - 963.003 - 963.004
Pt 100 ohm (Platinum): 964.101
