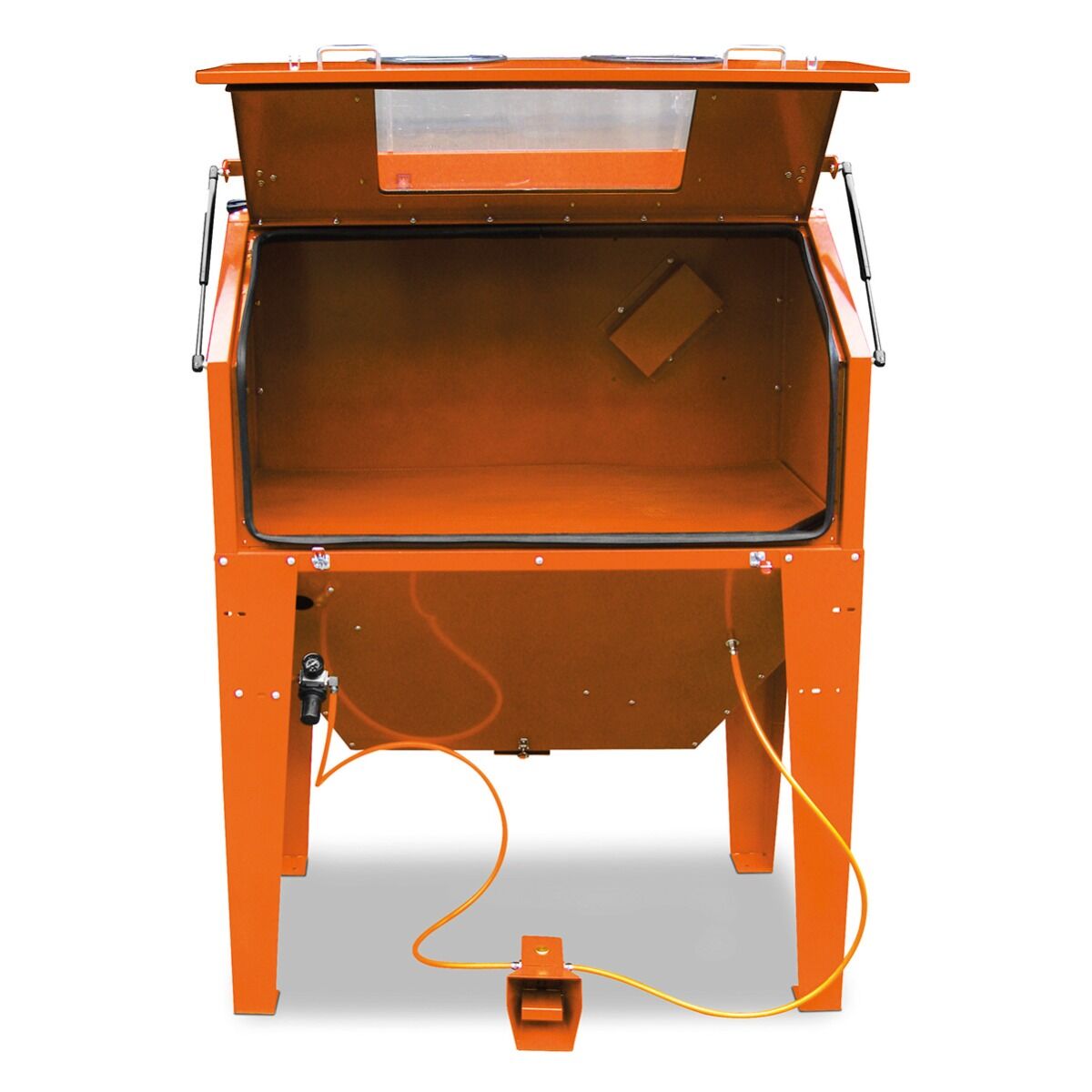

UNICRAFT 6204005 - Cabin blasting machine for cleaning and removal of different types of materials, cabin volume 360 litres, model SSK 3.1
(Incl. Tax: €2,355.03)
- Blasting cabin suitable for different types of materials (e.g. quartz, glass balls, plastic balls, etc)
- Perfect for cleaning or removing rust or paint from metals of all kinds (engine parts, crankcases, crowns
hinges, etc)
- High quality latex gloves firmly attached to the frame
- Equipped with lid with safety window and protective film for excellent visibility and safety while working
- Lid and door fitted with seals to protect the work area from dust
- Sturdy support surface for positioning workpieces inside the cabin
- Drain plug for changing materials and suction pipe with external compressed air connection
- Large front bonnet that can be opened upwards for quick and easy loading and unloading
- Integrated suction system with replaceable air filter
- Trigger-less gun with air flow control via foot control
- Separate 230V lamps with protective cover and replaceable film, including 5 replacement films
(2 lamps for SSK 3.1 and 4 lamps for SSK 4)
. Pressure gauge for pressure regulation
- Built according to CE directives.
ACCESSORIES INCLUDED:
- 1 High-quality spray gun with 4 ceramic nozzles (4/5/6/7 mm)
- 2 12 V lamps with cable and 230 V switch
- 5 window protection films
- 1 pair of gloves
Technical data:
Model: SSK 3.1
Cabin volume l: 360
Air consumption l/min: 400 - 800
Operating pressure bar: 3.4 - 8
Max. pressure bar: 8.6
Air supply hose: 3/8"
Abrasive core size mm: 0.125 - 0.42
Internal dimensions mm: 1160x580
External dimensions mm: 1225x935x1640
Max. weight supported by internal grid kg: 120
Max. weight of blasting agents kg: 75
Weight kg: 115
Max. weight supported by internal grid kg: 120
Max. weight of blasting agents kg: 75
Suction power m³/h: 17,4
Power consumption discharge system W: 1200
Vacuum suction power kPa: 8.5
Volume flow extraction system m³/h: 156
USABLE GRAIN SIZE:
| U.S. mesh | inch | µm |
| 60 | 0,0098 | 250 |
| 70 | 0,0083 | 210 |
| 80 | 0,0070 | 177 |
| 100 | 0,0059 | 149 |
| 120 | 0,0049 | 125 |
Optional accessories:
Gloves, window protection film, window, filter, sandblaster gun, lamp protection window, lighting protection film, neon lamp, ceramic nozzle set 2x6 mm / 2x7 mm, boron carbon nozzle 6 mm, boron carbon nozzle 7 mm.
THE IMAGE IS PURELY INDICATIVE AND MAY DIFFER FROM THE ACTUAL PRODUCT.
- Brand:
- UNICRAFT
- Application:
- Pedal
- EAN Code:
- 8032819377716
- Typology:
- Sandblaster
