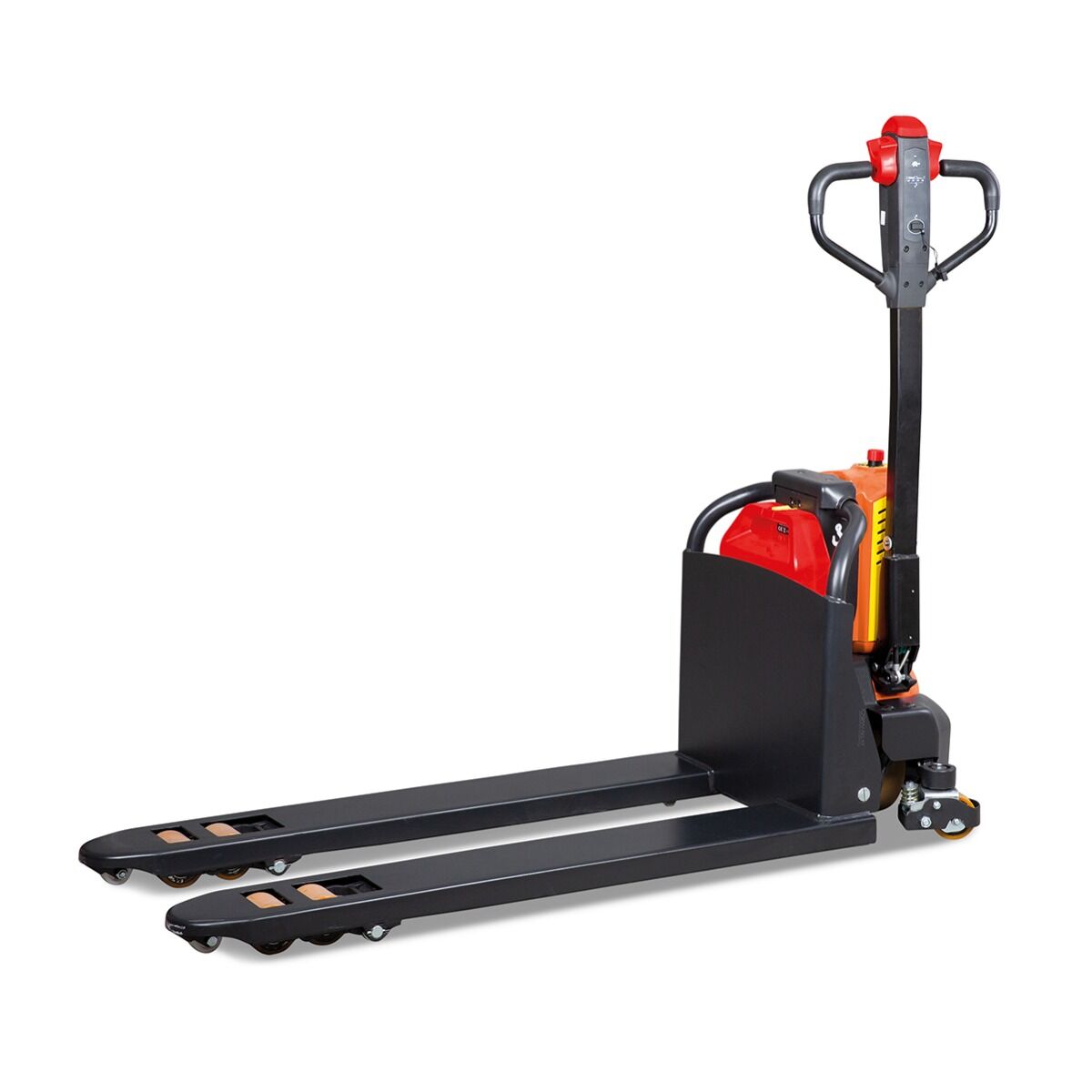

UNICRAFT 6160112 Electric pallet truck with 24V/20Ah lithium-ion battery, vertical Ergonomic drawbar head, capacity 1.2 tonnes, Model EHW 12

UNICRAFT 6160112 Electric pallet truck with 24V/20Ah lithium-ion battery, vertical Ergonomic drawbar head, capacity 1.2 tonnes, Model EHW 12

In stock
SKU
UNI6160112
Special Price €2,294.15 Regular Price €2,699.00
(Incl. Tax: €2,798.86)

Compact, manoeuvrable and lightweight, this device is ideal for use in confined spaces, on hydraulic tailgates or as a truck transport device. Speed control is functional and safe, thanks to the integrated rocker switch. The low-speed function allows precise manoeuvring even with the drawbar in the upright position, improving safety when moving. The ergonomic drawbar ensures a convenient and comfortable operating experience. The powerful lithium-ion battery (Li-ion 24V / 20Ah) ensures high operational availability, supported by short charging cycles. The integrated charge indicator on the tiller allows immediate monitoring of the battery status, which is easy to remove and reinsert.
Standard equipment: battery charger and Li-ion battery 24V / 20Ah.

The UNICRAFT electric pallet truck with lithium-ion battery is a compact, manoeuvrable and high-performance solution designed to improve operational efficiency in various sectors such as logistics, distribution, trade, light industry and transport. Thanks to its compact design and low weight, this pallet truck is particularly suitable for use in confined spaces, on the tailboard of trucks or for loading and unloading operations in environments where space is limited.

Speed control is via a rocker switch, which ensures safe and intuitive operation. The low-speed function allows precise manoeuvring even with the drawbar in the upright position, improving safety and convenience when manoeuvring in critical spaces. The ergonomic drawbar provides a comfortable grip and easy operation even during long shifts, helping to reduce operator fatigue.

One of the main advantages of this model is the 24V / 20Ah Li-ion battery, which guarantees high availability of use thanks to short charging cycles and the possibility of intermediate recharging without compromising the overall service life. Compared to conventional lead-acid batteries, Li-ion technology is maintenance-free, has a longer service life and enables more efficient management of energy resources. The integrated charge indicator on the tiller allows the operator to constantly monitor the battery status, while the easy removal and re-insertion simplifies replacement operations.

A battery charger and 24V / 20Ah lithium-ion battery are included. This pallet truck is the ideal choice for all companies wishing to improve productivity, reduce downtime and optimise internal logistics with a reliable, safe and technologically advanced truck.

Technical Data

Capacity 1.2 t
Overall width 540 mm
Fork width 160 mm
Fork length 1150 mm
Min fork height 80 mm
Max fork height 195 mm
Turning radius 1337 mm
Lifting speed 0.031 m/s
Lowering speed 0.069 m/s
Travel speed 4.6 km/h
Max gradient with load 4%
Max gradient without load 16%
Drive motor power 0.65 kW
Lift motor power 0.5 kW
Battery voltage 24 V
Nominal battery capacity 20 Ah
Dimensions 1537x540x1160 mm
Frame height 628 mm
Weight 124 kg
Battery weight 4.4 kg
Wheel Ø 210x70 mm
Roller Ø 80x93 mm
Sound pressure level 70 dB(A)
Low battery indicator LED
Creep speed function Yes
Unlocking Electronic key
Marking CE
Standard equipment Battery charger; Li-ion battery 24V / 20Ah
Brand:
UNICRAFT
EAN Code:
4036351284062
Typology:
Pallet truck
Capacity :
1.2 t
