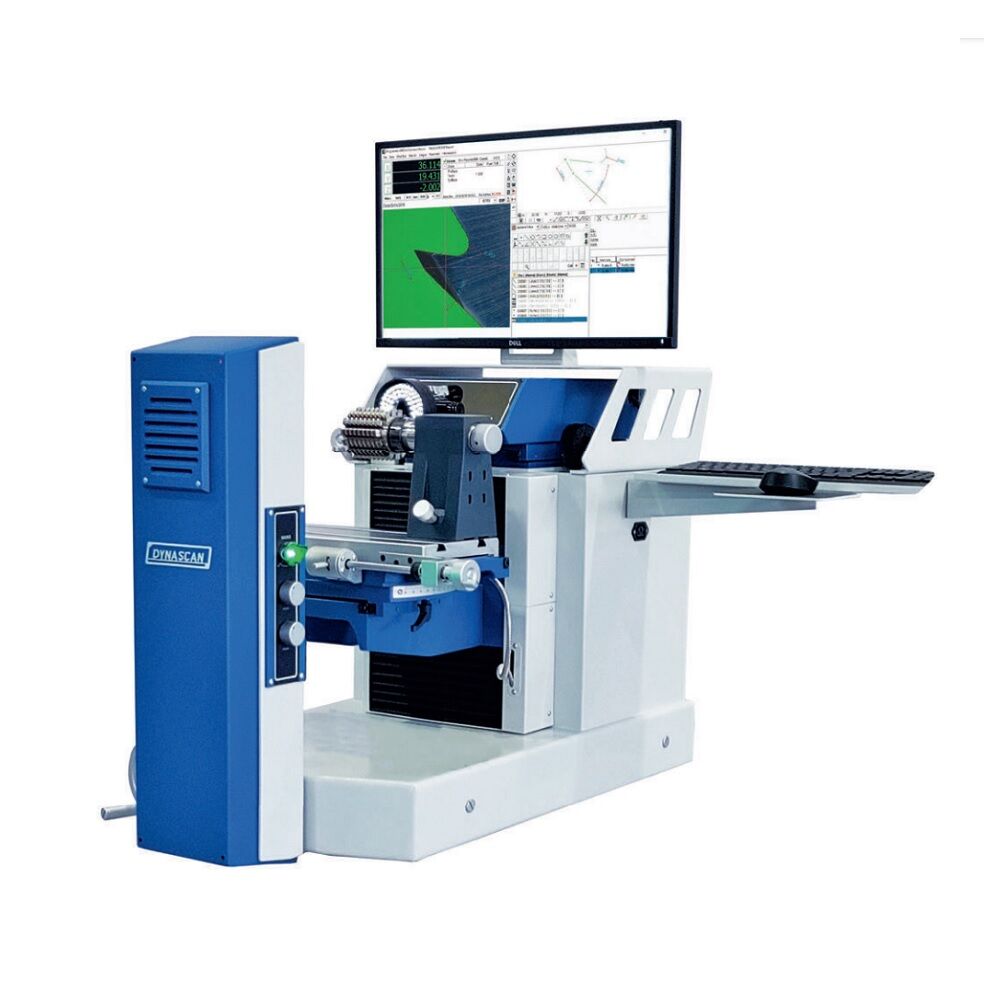

RUPAC 9914012A Manual horizontal optical measuring machine with VP6000 system and SI-101 software
The VP6000 system is a well-established reality in optical measurement, ideal for axially developed components, even large ones.
It is available in a video projector version with a multifunction geometric processor or in a complete software version with an advanced image analysis system.
The machine is built with a robust metal structure that integrates the measuring table with manual movement of the axes, complete with optical scales, and the vertical column on which the Zoom optical unit is installed horizontally. Vision, on a 22" LCD monitor or higher, is provided by a colour camera system complete with reticle generator.
TECHNICAL DATA:
Camera: Full HD colour
Optical zoom: 0.7x to 4.5x
Resolution: 0.5 μm
MPE: (3 + L/150) μm - L in mm
Episcopic illumination: multiring LED with manual control
Diascopic illumination: LED with manual control
Table size: 450 x 160 mm
Table stroke: 300 x 150 mm with displacement
rapid / micrometric
Focusing stroke: 150 mm mechanical, 12 mm optical
Maximum workpiece weight: 30 kg
3D MEASURING SOFTWARE "ARCS SI-101":
Windows®-based metrology programme.
Automatic analysis of workpiece profile.
Self-learning and automatic execution
of control programs.
Possibility of positioning dimensions directly on the image.
Immediate identification of part programs.
Interface with CAD system.
- Brand:
- RUPAC
- Typology:
- 3D
