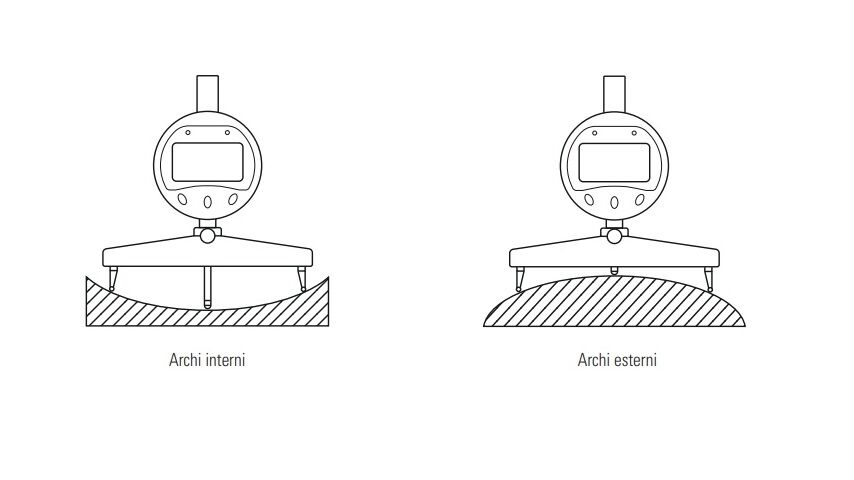

RUPAC 3792500 Digital radius gauge for the direct and immediate measurement of internal and external arc radii, with true radius reading. Digitronic Series, measuring range 450–2500 mm.
(Incl. Tax: €1,073.60)
Digital radius gauge with a measuring range of 450–2500 mm, 0.005 mm resolution and <1% accuracy. Features hardened and lapped contacts, a 6.5 mm LCD display, and a supplied 200 mm base.
The digital radius gauges of the series are designed to perform rapid, precise and repeatable inspections on internal and external radii, even on large components. The robust construction, combined with flat, hardened, ground and lapped contacts, ensures stable support and high metrological quality throughout the entire measurement.
The reading is provided via a 6.5 mm LCD display, clear and easily readable in any operating condition. The integrated functions — ON/OFF, auto power-off, mm/inch conversion, origin setting, key lock, selection of the measuring base and selection of the operating mode — offer versatility and ease of use even in complex applications.
The accuracy is defined according to an internal standard, as specified in the technical tables, and quantisation error is excluded.
Technical Specifications – Code 3792500
| Parameter | Value |
|---|---|
| Measuring range (mm) | 450 – 2500 |
| Resolution (mm) | 0.005 |
| Accuracy | < 1% |
| Indicator stroke (mm) | 50 |
| Included base (mm) | 200 |
| Reading | 6.5 mm LCD display |
| Contacts | Flat, hardened, ground, lapped |
| Functions | ON/OFF, Auto OFF, mm/inch, origin, key lock, base selection, mode selection |
| Unit of measurement | mm |
- Brand:
- RUPAC
- Typology:
- Radius gauge
- Measurements range:
- 450 - 2500mm
- Resolution (mm):
- 0.005 mm
