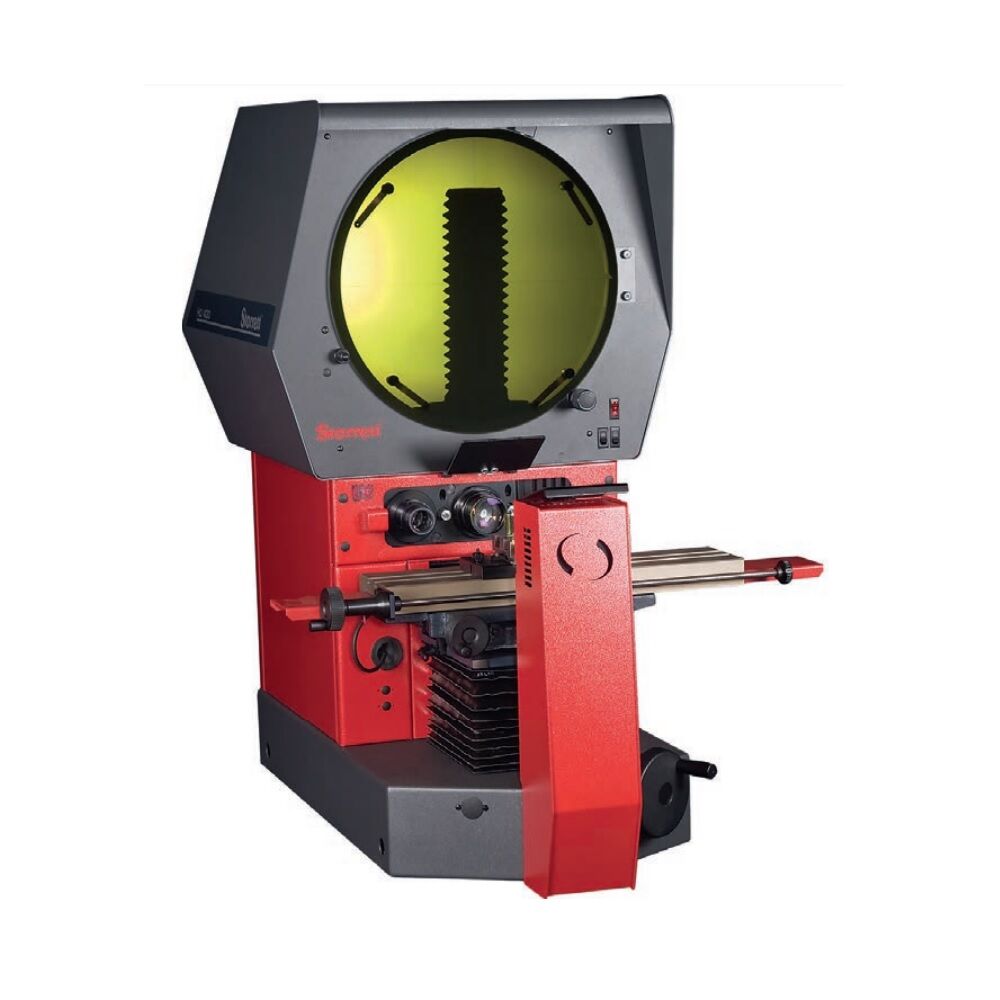

RUPAC 1600401 Bench-mounted profile projector with horizontal optics and inclined vertical screen HD 400 model for large parts or very heavy and with advanced geometric visualiser EL 550 model
SKU
RP-1600401
Contact us by Email info@tadaahshop.com for price
Benchtop model with horizontal optics and vertical screen, excellent for dimensional inspection of large parts such as shafts and moulds. Optical correction in the transverse axis for operator convenience, with 2-position slide and digital angle readout included. LED illumination for diascopy and flexible fibre optic arm for episcopy, ensuring sharpness, low power consumption and long life. Simple to use and robust, also ideal for very heavy workpieces in inspection.
PROJECTOR TECHNICAL DATA:
Revolving screen: Ø 400 mm fully usable with 90° reticle
Table tilt: ± 15° with nonius, 5' resolution
Illumination: diascopic via LED and switch, for high/low intensity selection, episcopic via LED with triple flexible fibre optic arm
Objectives: 5x (special version), 10x, 20x, 25x, 50x, 100x with two-position slide
Condenser: single lens with angle adjustment for thread control etc.
Focusing: 50 mm useful travel
Focusing distance: 80 mm with 10x, 76 mm with 20x, 62 mm with 25x, 50 mm with 50x, 41 mm with 100x
Table size: 540 x 130 mm
Table travel: 400 x 150 mm
Line resolution: 0.001 mm
Maximum workpiece weight: 50 kg without bending
Projector weight: 100 kg
Revolving screen: Ø 400 mm fully usable with 90° reticle
Table tilt: ± 15° with nonius, 5' resolution
Illumination: diascopic via LED and switch, for high/low intensity selection, episcopic via LED with triple flexible fibre optic arm
Objectives: 5x (special version), 10x, 20x, 25x, 50x, 100x with two-position slide
Condenser: single lens with angle adjustment for thread control etc.
Focusing: 50 mm useful travel
Focusing distance: 80 mm with 10x, 76 mm with 20x, 62 mm with 25x, 50 mm with 50x, 41 mm with 100x
Table size: 540 x 130 mm
Table travel: 400 x 150 mm
Line resolution: 0.001 mm
Maximum workpiece weight: 50 kg without bending
Projector weight: 100 kg
DISPLAY TECHNICAL DATA:
Readout: graphic LCD display, backlit
Resolution: 1 / 0.5 / 0.1 μm
Measuring units: mm / inch
Scales: ABS / INC
Compensation: linear measurement error
User keys: touch
Presets: X, Y and angular axes
Input: TTL square wave (5V) 9 pin and sine wave (5V) 9 pin*.
Dimensions: 190 x 290 x 80 mm
Weight: 2.2 kg
* For connection required Converter Box code 4900007 (2 pcs.)
- Brand:
- RUPAC
- Typology:
- Projector
