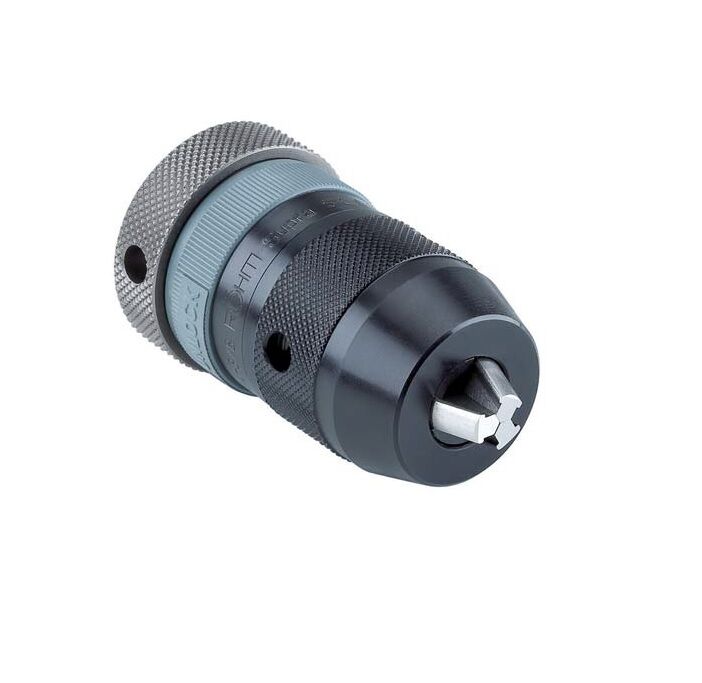

ROEHM 305203 Drill chucks SUPRA-SK for hand-operated percussion drills and drills, clamping capacity 1-13 mm - Conical mount Shortened B16 by 2.5 mm DIN 238/1
(Incl. Tax: €100.65)

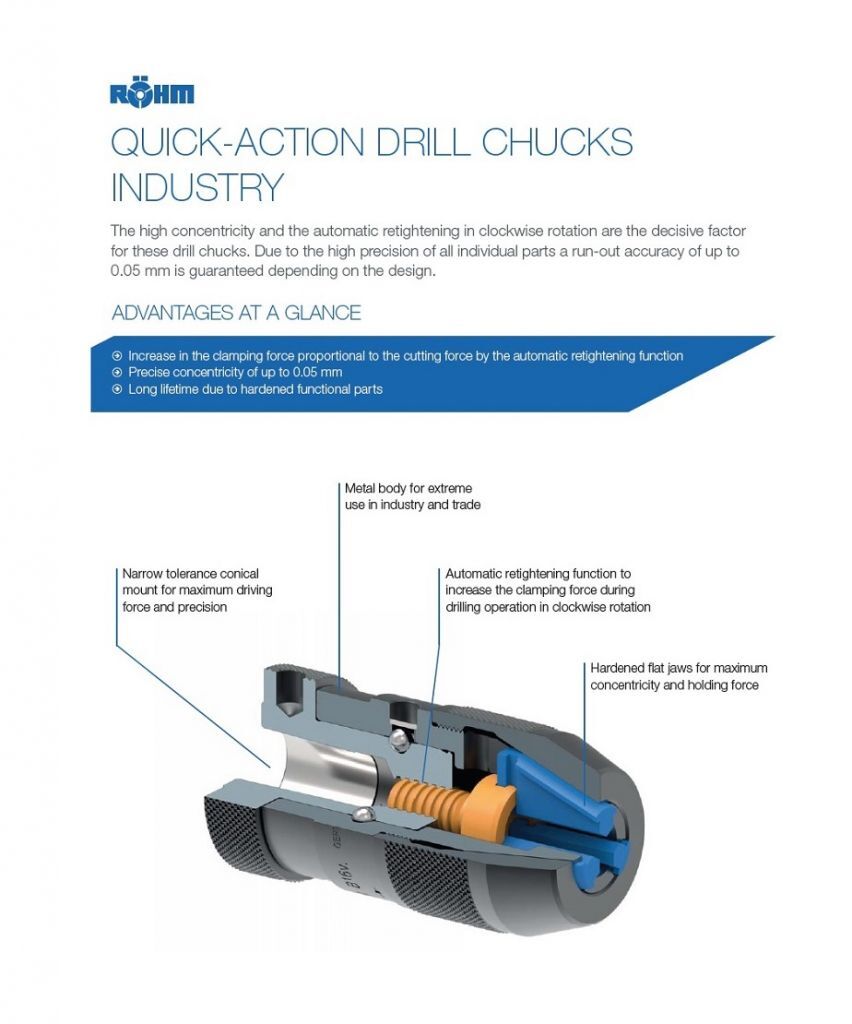

The absolute highlight of the SUPRA drill chucks is the automatic retightening. This function increases the clamping force proportional to the cutting force of the tool during drilling operation. This prevents the drill bit from slipping, even at extreme loads.
APPLICATION:
For extreme use on hand-operated percussion drills and drills up to 1300 watt with conical mount.
TYPE:
Self-tightening flat jaw drill chuck.
CUSTOMER BENEFITS:
- Precise concentricity
-Increase in the clamping force proportional to the cutting force by automatic retightening function and no releasing in counterclockwise rotation
- Impact-resistant by radial locking for universal use
TECHNICAL FEATURES:
- Strong retaining ring
- Hardened and superfinished
- Suitable for counterclockwise rotation up to maximal 15 Nm
- Brand:
- ROHM
- EAN Code:
- 4019208069036
- Typology:
- Drill chucks both rotations (LH-RH)
- Size:
- 1 - 13mm
- Shank Type:
- B16 DIN 238/1
- Concentricity error max (mm):
- 0,25 mm
- Diameter "D":
- 42,8 mm
- Lengt "L":
- 89,3 mm
