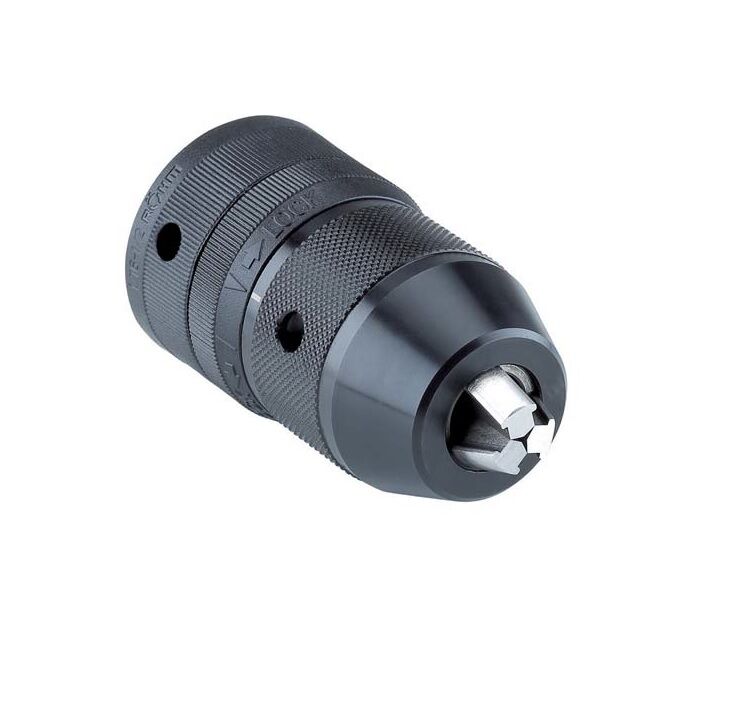

ROEHM 1193005 Quick-action drill chucks SUPRA-SK E with retaining ring for hand-operated percussion drills, drills and cordless drills, clamping capacity 1.5-13 mm - Thread mount 1/2“-20
(Incl. Tax: €92.42)

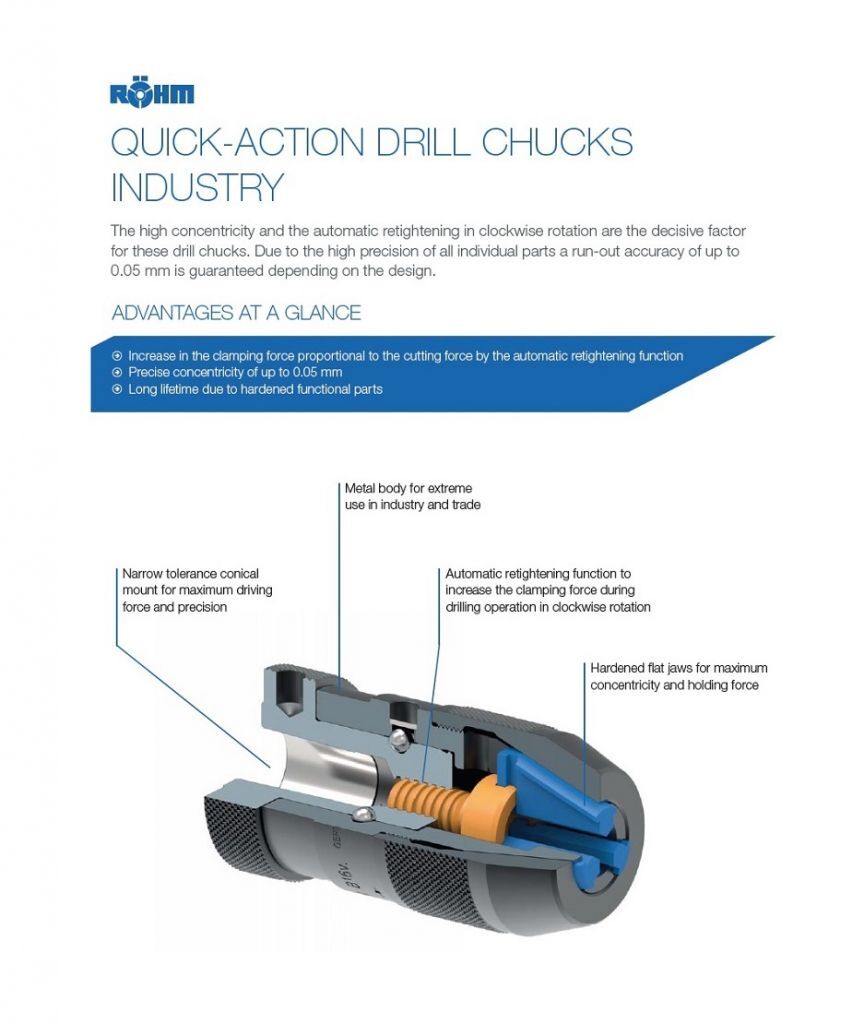

The absolute highlight of the SUPRA drill chucks is the automatic retightening. This function increases the clamping force proportional to the cutting force of the tool during drilling operation. This prevents the drill bit from slipping, even at extreme loads. SUPRA-SK E with retaining ring for hand-operated percussion drills and drills up to 1000 watt and cordless drills with up to 70 Nm of torque
APPLICATION:
Especially suited for hand-operated percussion drills, drills and cordless drills up to 70 Nm of torque.
TYPE:
Impact-resistant and self-tightening flat jaw drill chuck.
Also suitable for counterclockwise rotation by radial locking.
CUSTOMER BENEFITS:
- Precise concentricity
- Increase in the clamping force proportional to the cutting force by automatic retighteningfunction and no releasing in counterclockwise rotation
- Impact-resistant by radial locking for universal use

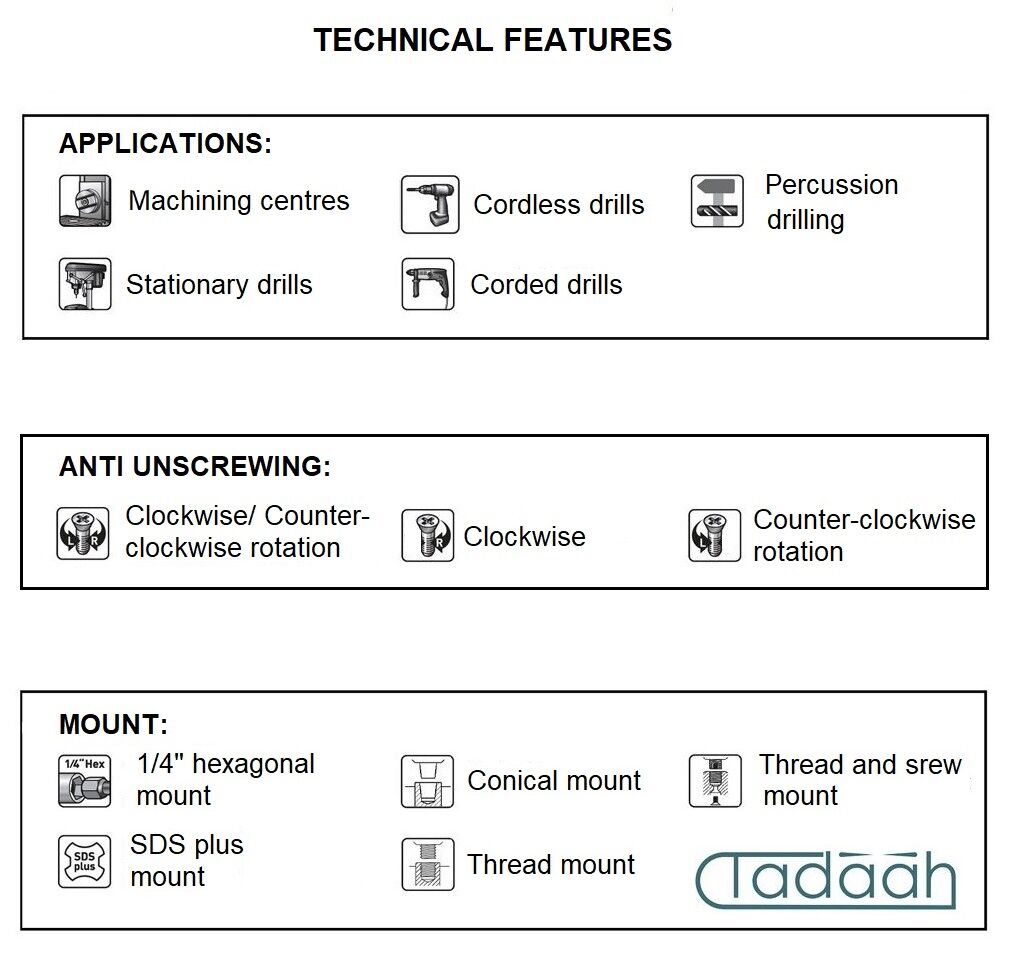

TECHNICAL FEATURES:
- Hardened and superfinished
- Suitable for counterclockwise rotation up to maximal 50 Nm
- Brand:
- ROHM
- EAN Code:
- 4019208228624
- Typology:
- Drill chucks both rotations (LH-RH)
- Size:
- 1.5 - 13mm
- Shank Type:
- 1/2"-20
- Concentricity error max (mm):
- 0,35 mm
- Diameter "D":
- 42,5 mm
- Lengt "L":
- 79,3 mm
