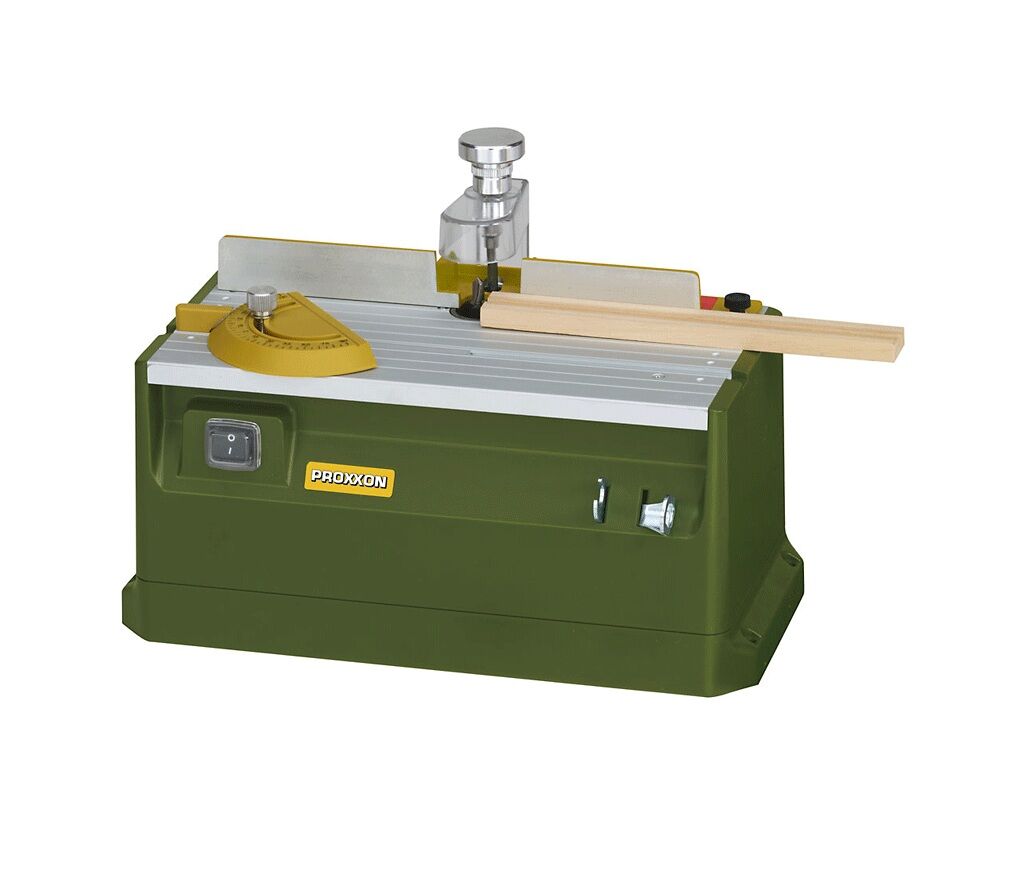

PROXXON 27050 Bench-top micro-profiling machine MP 400 for edges and longitudinal cuts on wood, fibreboard and plastics, 230 V, milling table dimensions 300x150mm
(Incl. Tax: €205.00)
PROXXON MICRO-profiling machine MP 400 for precise profiling, grooves and edge finishing on wood, fibreboard and suitable plastics. 230V 100W motor up to 25,000 rpm, micrometric height adjustment and stable 300×150 mm aluminium table with fence and angle guide. Supplied with 3 HSS cutters and 3 precision collets.
The PROXXON MP 400 MICRO-profiling machine is a compact bench unit designed for precision profiling and light machining of small workpieces made of wood, fibreboard and suitable plastics. Suitable for profiles, grooves, rebates, tenons, rounding and longitudinal edge finishing, it is ideal for fine woodworking, model making and small precision applications.
The 230 V – 100 W motor delivers speeds up to 25,000 rpm, featuring toothed belt transmission and dust protection. The spindle runs on double ball bearings for stable and accurate operation. Height adjustment is controlled via a graduated adjustment ring (1 turn = 1 mm; 1 division = 0.05 mm) for precise cutter positioning.
The MP 400 has a suction channel and a nozzle that allow you to work cleanly. The 300 × 150 mm aluminium milling table includes a longitudinal fence and angle guide for controlled angular machining. Dust extraction port compatible with standard vacuum systems.
Scope of delivery:
– 3 HSS cutters (3.2 mm slot cutter, V cutter and quarter-round cutter)
– 3 precision collets (Ø 2.4 – 3 – 3.2 mm)
PROXXON MP 400
| Parameter | Value |
|---|---|
| Power supply | 230 V |
| Motor power | 100 W |
| Frequency | 50/60 Hz |
| Speed | 25,000 rpm |
| Height adjustment | 1 turn = 1 mm / 1 graduation = 0.05 mm |
| Milling table size | 300 × 150 mm |
| Weight | approx. 3.17 kg |
- Brand:
- PROXXON
- EAN Code:
- 4006274270503
- Typology:
- Profiling machine
- Power:
- 100 W
