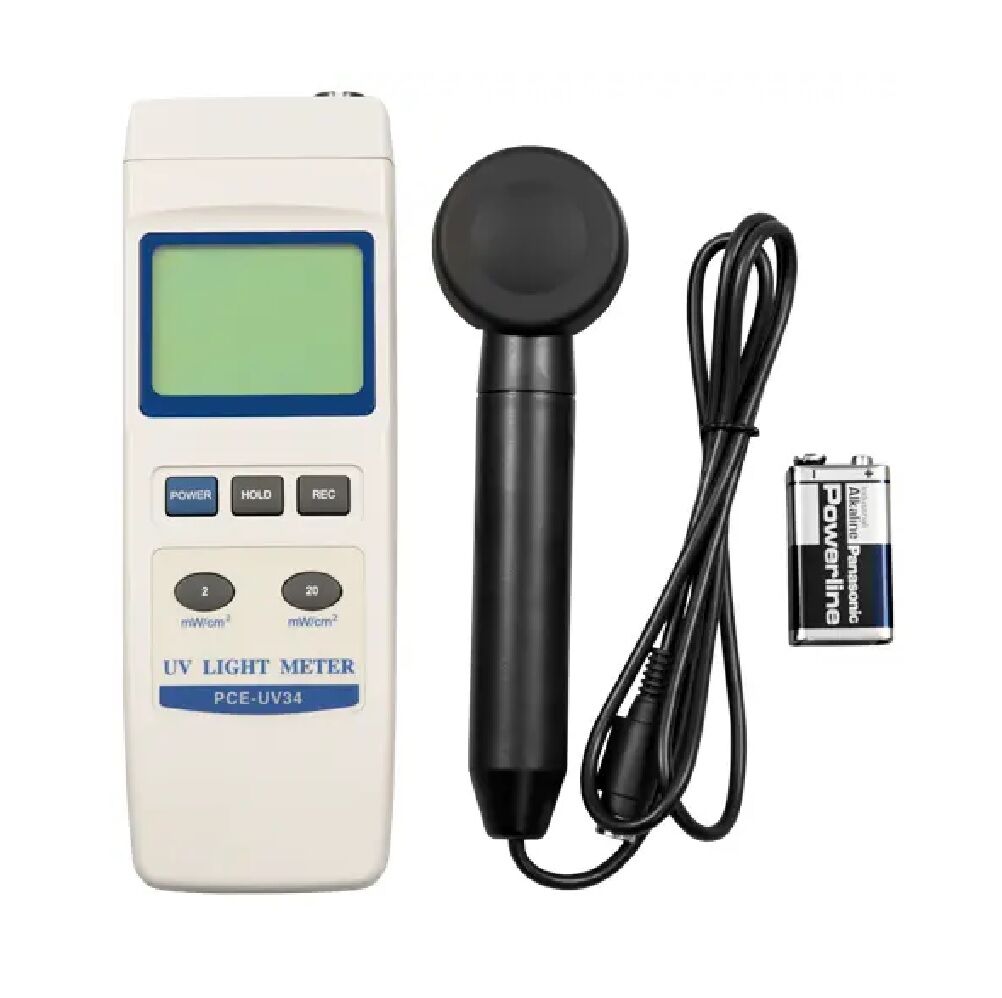

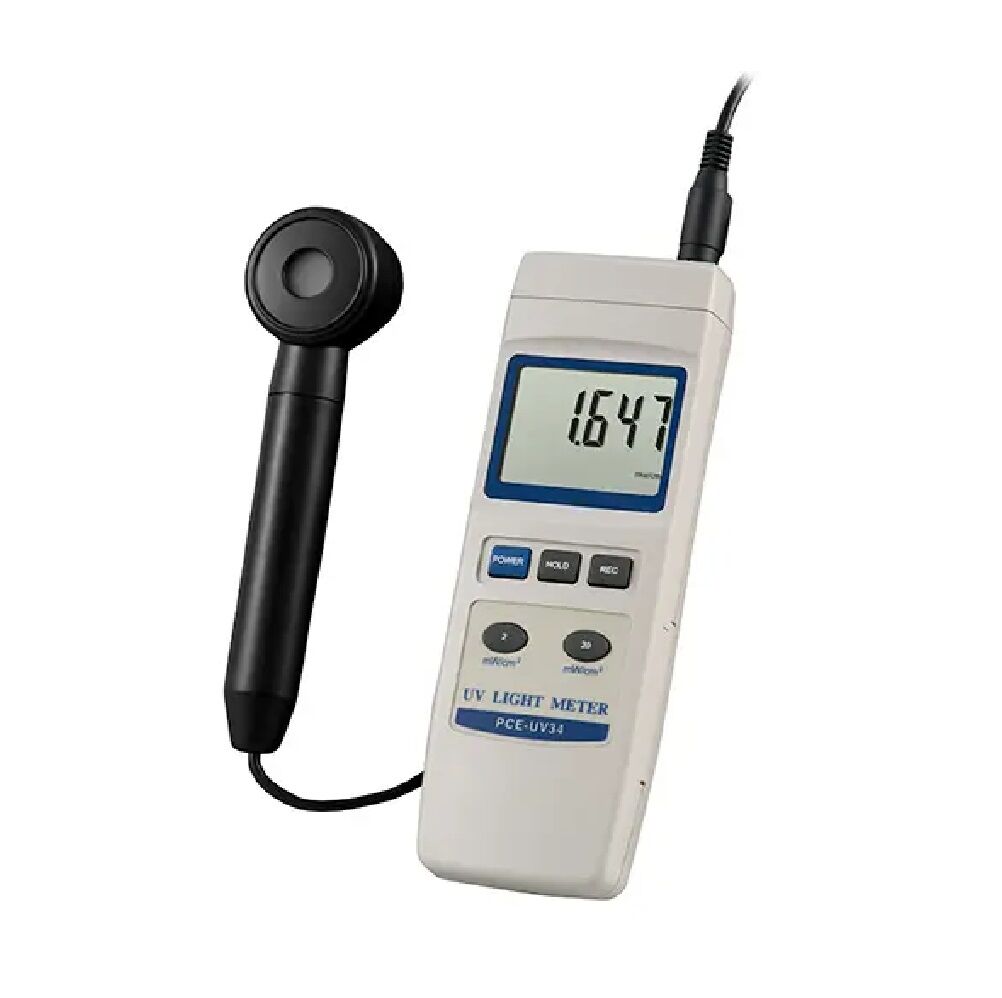

PCE Instruments PCE-UV34 Radiation Detector measures radiation UV with an external sensor
In stock
SKU
PCE-UV34
€223.00
(Incl. Tax: €272.06)
(Incl. Tax: €272.06)
The PCE-UV34 Radiation Detector is a device used to measure UVA and UVB radiation. This accurate device operates on a wave length of 290 to 390nm. With this Radiation Meter you can measure UVA radiation from the sun or in tanning salons in order to protect yourself from damage of high exposure and possible sunburn. With the industrial sector we frequently find elevated UVA radiation level, such as the arc light used in soldering. The UV Radiation Detector is very versitile thanks to its external sensor. Other fields of use are the sterilization of UVA rays, photo chemical compensation, in virology laboratories or in DNA research.
- External sensor with UV correcting filter
- Auto after 10 minutes of inactivity to conserve battery power
- Large LCD
- Minimum, Maximum and Data Hold functions
- compact design
- 0.000 to 1.999 mW/cm2 or 0.000 to 19.9 W/m²
- 1.999 to 19.99 mW/cm2 or 19.99 to 199.9 W/m²
- Auto after 10 minutes of inactivity to conserve battery power
- Large LCD
- Minimum, Maximum and Data Hold functions
- compact design
- 0.000 to 1.999 mW/cm2 or 0.000 to 19.9 W/m²
- 1.999 to 19.99 mW/cm2 or 19.99 to 199.9 W/m²
Specification:
| Ranges | 0.000 to 1.999 mW/cm² or 0.000 to 19.9 W/m² 1.999 to 19.99 mW/cm² or or 19.99 to 199.9 W/m² |
| Resolution | 0.001 mW/cm² |
| Accuracy | ±4% + 2 positions |
| Response time | 0.4 s |
| Wave length | Wide band of 290 to 390nm |
| Zero reset | By pressing a key |
| Light sensor | Photodiode with UV correcting filter |
| Memory | Minimum, maximum and hold values |
| Auto shut-off | Automatic after 10 minutes of inactivity |
| Display | 22 mm / 0.9 in LCD |
| Over range indicator | "- - - -" |
| Operating conditions | 0 to 50°C / 32 ... 122°F max. 80% r.h. |
| Power | 9V battery |
| Dimensions | Device: 68 x 200 x 30 mm / 2.7 x 7.9 x 1.2 in Light sensor: 68 x 60 x 27 mm / 2.7 x 2.4 x 1.1 in |
| Weight | 220 g / < 1 lb (with battery) |
Delivery Scope:
1 x PCE-UV34
1 x Combined UV sensor
1 9V battery
1 x User's manual
1 x Combined UV sensor
1 9V battery
1 x User's manual
- EAN Code:
- 4250348701473
- Typology:
- Photovoltaic
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.001 mW/cm²
- Measurements range:
- 0.000 -19.99 mW/cm²
