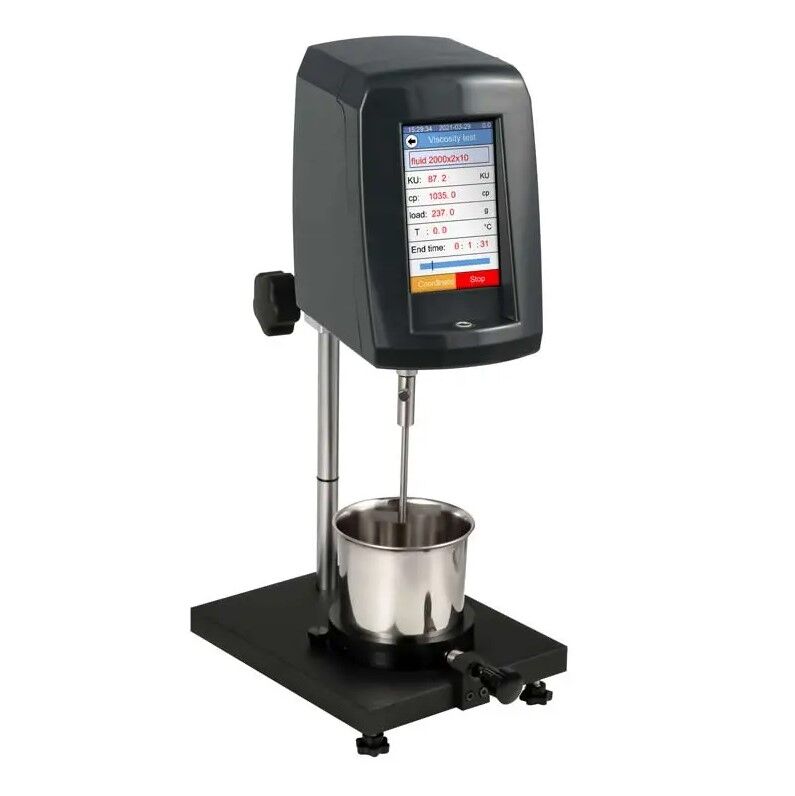

PCE Instruments PCE-RVI 8 Krebs viscometer, range 27-5250 cP, touch display, PC interface, and optional software for real-time measurements
In stock
SKU
PCE-RVI-8
€2,182.40
(Incl. Tax: €2,662.53)
(Incl. Tax: €2,662.53)
Krebs viscometer, an advanced instrument for measuring viscosity in a range of 27-5250 cP with an accuracy of ±1% F.S. Used in quality control and in laboratories, it allows the measurement of paints, oils, and varnishes. Equipped with a large 5" touch screen, it facilitates interaction and displays measurement values in real time, along with a graph of the measurement trend. An external temperature sensor ensures the sample is at the correct temperature. With optional software for connection to a PC, data can be viewed and exported in CSV format. The overload protection and a fixed speed of 200 rpm ensure safe and efficient operation.
Technical specifications:
| Viscosity | |
| Measuring range | 40.2 - 141 KU 27 - 5250 cp (1cP = 1 mPa*s) 32 - 1099 g |
| Resolution | 0.1 KU 1 cp 1 g |
| Accuracy | ±1 % of full scale |
| Temperature | |
| Measuring range | -20 - 250 °C / -4 - 482 °F |
| Resolution | 0.1 °C |
| Accuracy | ±0.3 °C |
| Spindle | KU1 |
| Rotation speed | 200 RPM |
| Measuring cup volume | 600 ml |
| Display | 5" LCD touchscreen |
| Power supply | primary: 100 - 240 V AC, 0.5 A |
| secondary: 12V DC, 2 A | |
| Operating conditions | 5 - 35 °C / 41 - 95 °F, (20 °C / 68 °F recommended temperature) |
| <80 % non-condensing | |
| Dimensions | 420 x 180 x 300 mm / 16.5 x 7.1 x 11.8" |
| Weight | ca. 5 kg / 11 lb |
The Krebs viscometer is an advanced measuring device designed to accurately determine the viscosity of liquids. It operates in a range of 27 to 5250 cP, offering an accuracy of ±1% F.S. This instrument proves essential in multiple sectors, including quality control in manufacturing processes and scientific laboratories, where measuring the viscosity of a wide range of fluids, such as paints, oils, varnishes, and other industrial liquids, is crucial.
The operation of the Krebs viscometer is simple and intuitive. To perform a measurement, the operator must immerse the KU1 spindle in the liquid sample. The rotation speed is fixed at 200 rpm, allowing consistent and repeatable results while reducing the margin of error. During the measurement process, a large 5" touch screen facilitates interaction with the device. The measurement values are displayed in real time, along with graphs illustrating the measurement trend, making data interpretation easier.
One of the distinguishing features of this viscometer is the integration of an external temperature sensor, which ensures that the sample is measured at the correct temperature. Temperature has a significant impact on the viscosity of liquids; therefore, the ability to monitor and record temperature during measurement is essential for obtaining reliable and comparable results. This enables operators to analyze and compare data between different samples, enhancing the reliability of analyses.
To further facilitate use and improve work efficiency, the Krebs viscometer offers the option to connect to a PC via optional software. This software allows real-time visualization of measurement data, with the option to present values in both table and graph formats. Additionally, for subsequent data processing, it is possible to export results in CSV format, making the analysis process smoother and more manageable.
The ergonomic design of the viscometer, combined with ease of use, makes it suitable for inexperienced users as well. The presence of protection features, such as automatic shutdown in case of overload, ensures not only operator safety but also the longevity of the device. With adjustable height and versatile configuration, the viscometer can be adapted to different operational needs, allowing for precise measurements in various contexts.
In summary, the Krebs viscometer is an indispensable tool for anyone needing reliable viscosity measurements of liquids. Combining advanced technology with an intuitive design, this device not only enhances the efficiency of quality control operations but also contributes to ensuring that products always meet the required safety and quality standards. The ability to analyze and monitor the rheological properties of liquids makes the viscometer a valuable ally for professionals in the fields of manufacturing, quality control, and scientific research.
Caratteristichs:
- Measuring range 27 ... 5250 cp
- Automatic shutdown in case of overload
- Fixed rotation speed of 200 RPM
- Optional software for live viewing
- KU1 spindle included in delivery
- Large touch screen for easy operation
- Automatic shutdown in case of overload
- Fixed rotation speed of 200 RPM
- Optional software for live viewing
- KU1 spindle included in delivery
- Large touch screen for easy operation
Delivery scope:
1 x Paint Viscosity Tester PCE-RVI 8
1 x Sample pan
1 x Height adapter
1 x Spindle KU1
1 x Temperature sensor
1 x Stand
1 x Touchscreen pen
1 x Transport case
1 x Mains power adapter
1 x Instruction manual
1 x Sample pan
1 x Height adapter
1 x Spindle KU1
1 x Temperature sensor
1 x Stand
1 x Touchscreen pen
1 x Transport case
1 x Mains power adapter
1 x Instruction manual
- EAN Code:
- 4250348723451
- Typology:
- Viscometer
- Brand:
- PCE INSTRUMENTS
