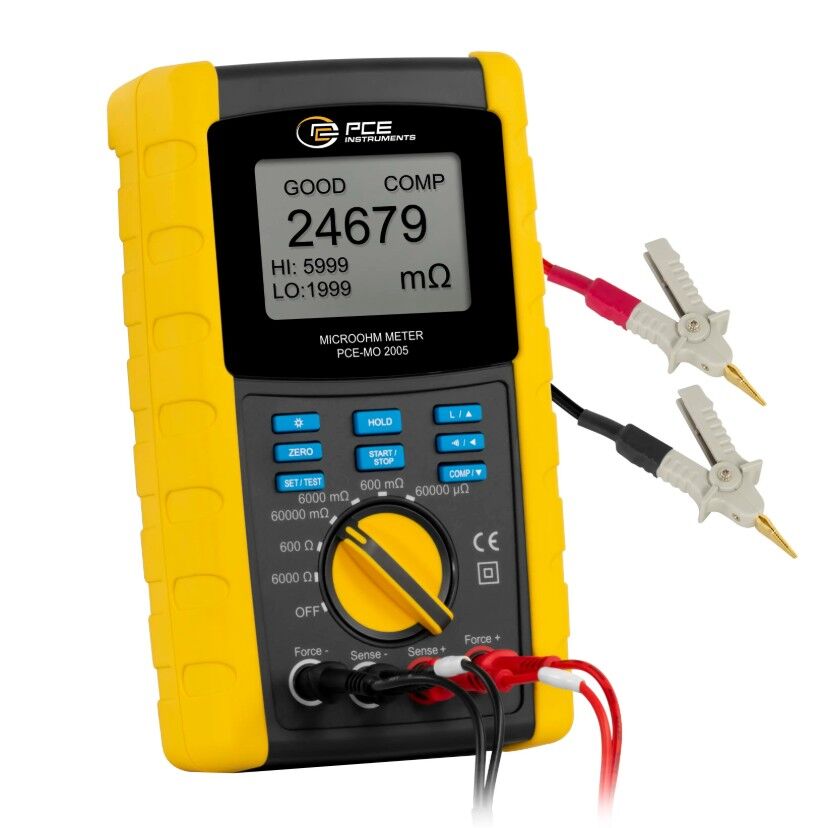

PCE Instruments PCE-MO 2005 Milliohmeter for checking critical connections in electrical engineering and electronics, measurement range from 0 microhm to 6000 ohms
(Incl. Tax: €1,064.94)
The PCE-MO 2005 Milliohmmeter is designed for measuring low resistances in electrical engineering and electronics, specifically for checking critical connections. It features a measurement range from 0 microohms to 6000 ohms, providing precise and reliable readings. This device is ideal for tasks that require accurate assessment of conductive paths, ensuring optimal performance and safety in electrical systems.
This microohmmeter is designed to measure extremely low resistances with high precision, offering a measurement range from 0 µΩ to 6000 Ω, making it ideal for testing critical connections in electronics and electrical engineering. With six selectable measurement ranges and a 4-wire Kelvin method, it ensures accurate readings for both resistances and inductances.
Technical Data:
| Resistance | |
| Measurement range up to | 0 - 60000 µΩ |
| Resolution | 1 µΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 60000 µΩ - 600 mΩ |
| Resolution | 10 µΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 600 - 6000 mΩ |
| Resolution | 100 µΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 6000 - 60000 mΩ |
| Resolution | 1000 µΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 60000 mΩ - 600 Ω |
| Resolution | 10 mΩ |
| Accuracy | ±0.25 % of Rd +25 digits (@ 23 ±5 °C) |
| Resistance | |
| Measurement range up to | 600 - 6000 Ω |
| Resolution | 100 mΩ |
| Accuracy | ±0.75 % of Rd +3 digits (@ 23 ±5 °C) |
| Measuring functions | HOLD |
| Display type | LCD with backlight |
| Display size | 3,3 Inch |
| Interface | RS232 |
| Standard(s) | EN 61010-1, EN 61325-1 |
| Measuring method | 4-wire method for mΩ measurement |
| Test current | 10 A: 60000 µΩ 1 A: 600 mΩ 100 mA: 6000 mΩ 10 mA: 60000 mΩ 1 mA: 600 Ω 100 µA: 6000 Ω |
| Fuse(s) | 10 A / 250 V |
| Menu language | English, English (GB) |
| Protection class (device) | IP30 |
| Power supply | 100 - 240 V AC | 47/63 Hz |
| Connector type | Schuko plug |
| (Rechargeable) battery | 8 x 1,5 V AA battery , Zinc carbon |
| Capacity | 1200 mAh |
| Operating conditions | 0 - 50 °C , 0 - 80 % RH |
| Storage conditions | 0 - 50 °C , 0 - 80 % RH |
| Dimensions ( L x W x H ) | 220 x 125 x 64 mm |
| Weight | 777 g |
The device delivers test currents up to 10 A in the 60000 µΩ range, with additional options for 1 A, 100 mA, 10 mA, and 1 mA, adapting to various measurement needs. Equipped with a 3.3-inch LCD display featuring adjustable backlight (which turns off automatically after 30 seconds to save power), it provides clear and immediate data visualization.
Key advanced functions include a comparator mode for quick Pass/Fail evaluation, the ability to calculate cable length by entering resistance per meter, and built-in overvoltage protection. Power can be supplied either by batteries or via mains, ensuring versatility in any operational environment and making it a reliable tool for professionals in the field.
Features:
- 6 selectable measurement ranges
- 4-wire measuring method
- 3.3-inch LC display
- operating mode: resistance or inductance
- test current max. 10 A within the 60000 µΩ range
- adjustable limit values
- calculation of the cable length
- integrated overvoltage protection
- mains and battery operation

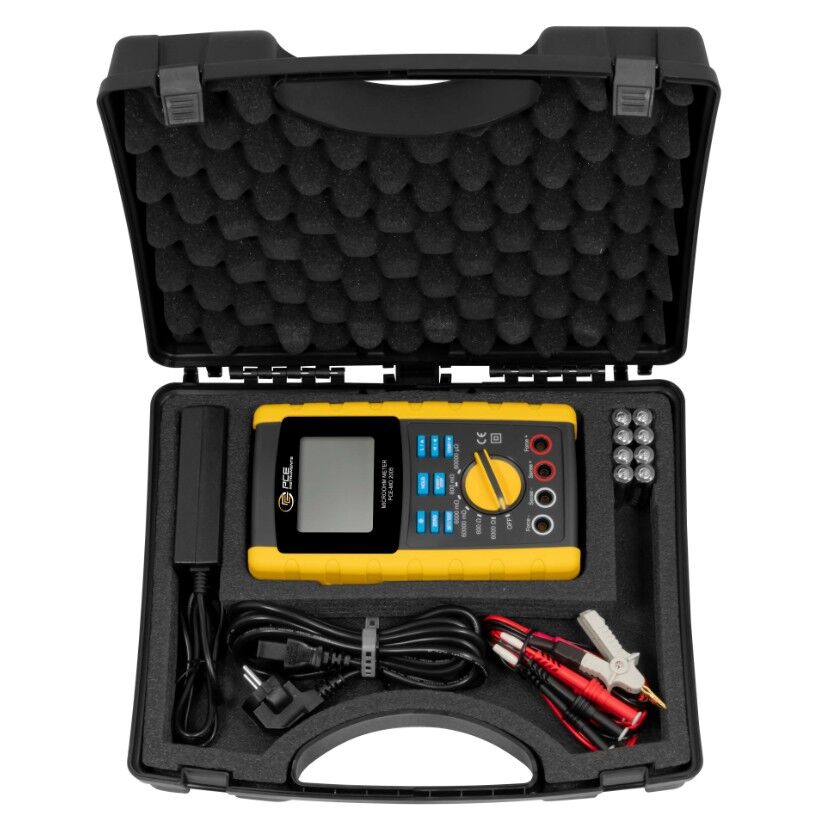

Delivery scope:
1 x Milliohmmeter PCE-MO 2005

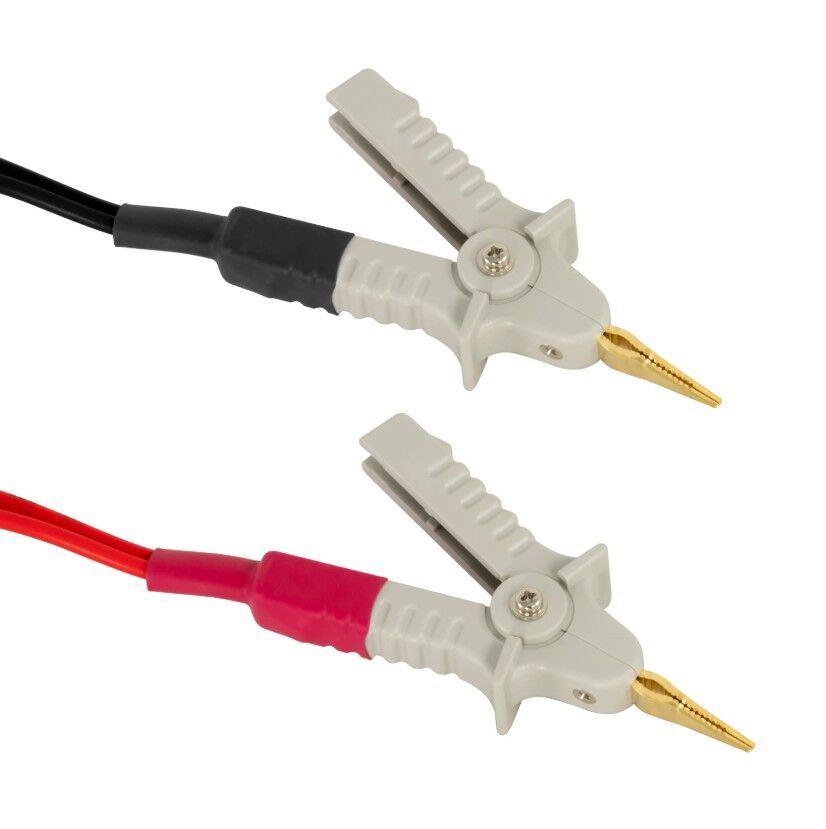

2 x 80 cm test leads with Kelvin clamps
8 x AA 1.5 V batteries
1 x mains adaptor 9 V, 3 A
1 x IEC cable
1 x carrying case
1 x user manual
- EAN Code:
- 4250348734181
- Typology:
- Multifunctional
- Brand:
- PCE INSTRUMENTS
- Measurements range:
- 0µΩ - 6000 Ω
