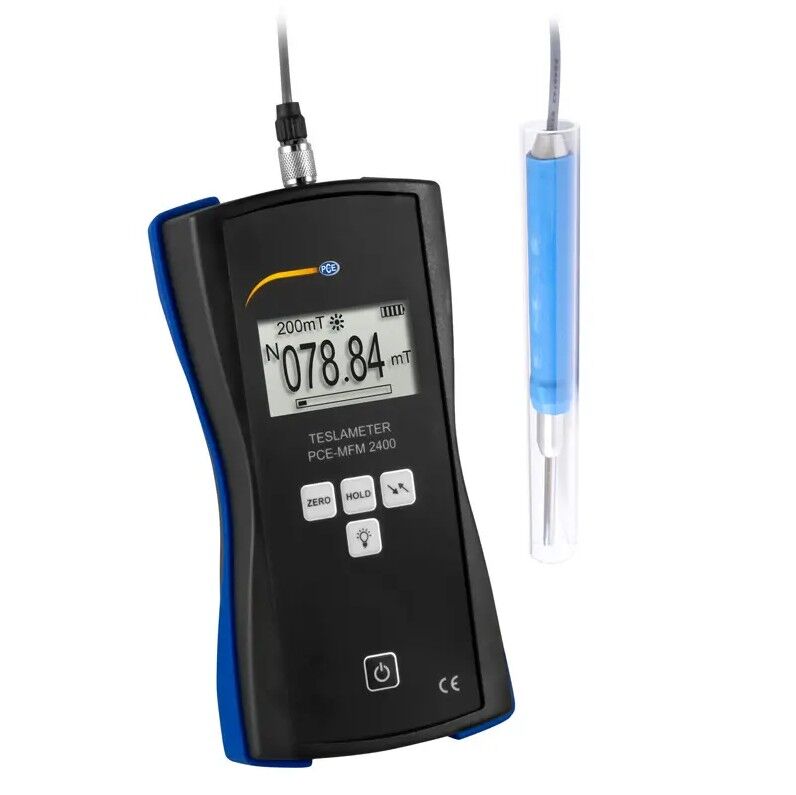

PCE Instruments PCE-MFM 2400+ Magnetometer with 1% accuracy, axial measurement, range up to 24,000G and 2,400mT
(Incl. Tax: €946.60)
The PCE-MFM 2400+ Magnetometer is a highly accurate measuring instrument designed for axial measurements of magnetic fields. With an accuracy of 1%, it can measure magnetic field strengths up to 24,000 Gauss and 2,400 milliTesla. This magnetometer is suitable for various applications in research, industry, and educational settings, providing reliable and precise magnetic measurements. Its user-friendly interface and portable design make it an ideal tool for fieldwork and laboratory use.
This high-precision magnetometer delivers 1% measurement accuracy across a wide 2,400 mT (24,000 Gauss) range, making it ideal for quality control and manufacturing processes involving static electromagnetic fields. The axial sensor configuration allows precise measurement of permanent magnets, relays, and other magnetic components.
Technical specifications:
| Measuring range | 0 - 200 mT 200 - 2,400 mT 0 - 2,000 G 2,000 - 24,000 G |
| Accuracy | ± 1% of reading |
| Resolution | 0.01 mT 0.1 g |
| Measuring direction | Axial |
| Magnetic field | Static (DC) |
| Unit | mT, G |
| Power supply | 1 x 9V block battery |
| Automatic shutdown | Automatic shutdown after 5 minutes in idle status |
| Modes | Hold mode, measurement mode |
| Display | Backlight digital 4-digit value display |
| Operating temperature | 0 - 50°C / 32 - 122°F |
| Storage temperature | -20 - 50°C / -4 - 122°F |
| Dimensions | 185 x 97 x 40 mm / 7.28 x 3.82 x 1.57 inch |
| Weight | 310 g / < 1 lb |
| Sensor | Hall sensor axial, cable length approx. 2 m / 6.6 ft |
Featuring a backlit display for low-light environments and automatic shutoff after 5 minutes of inactivity, the device optimizes battery life while maintaining operational readiness. With dual-unit measurement capability (Tesla/Gauss), this portable instrument provides reliable field strength quantification for industrial and research applications where accurate magnetic field assessment is critical.
Features:
- Very precise measurement technology
- Measuring range up to 24,000 G and 2,400 mT
- Axial sensor
- For measuring static magnetic fields
- Automatic shutdown

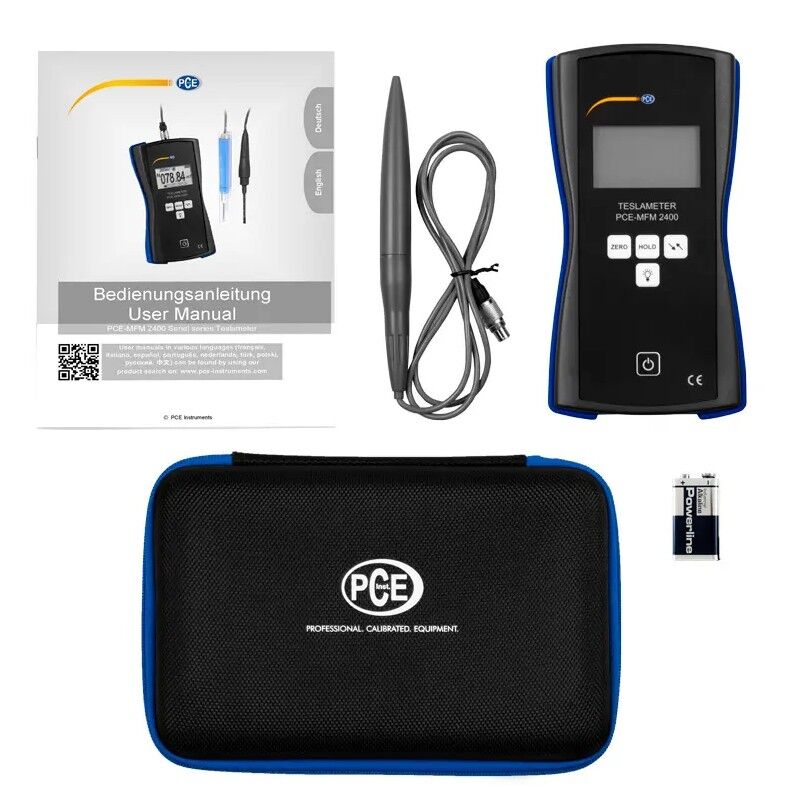

Delivery scope:
1 x Magnetometer PCE-MFM 2400+

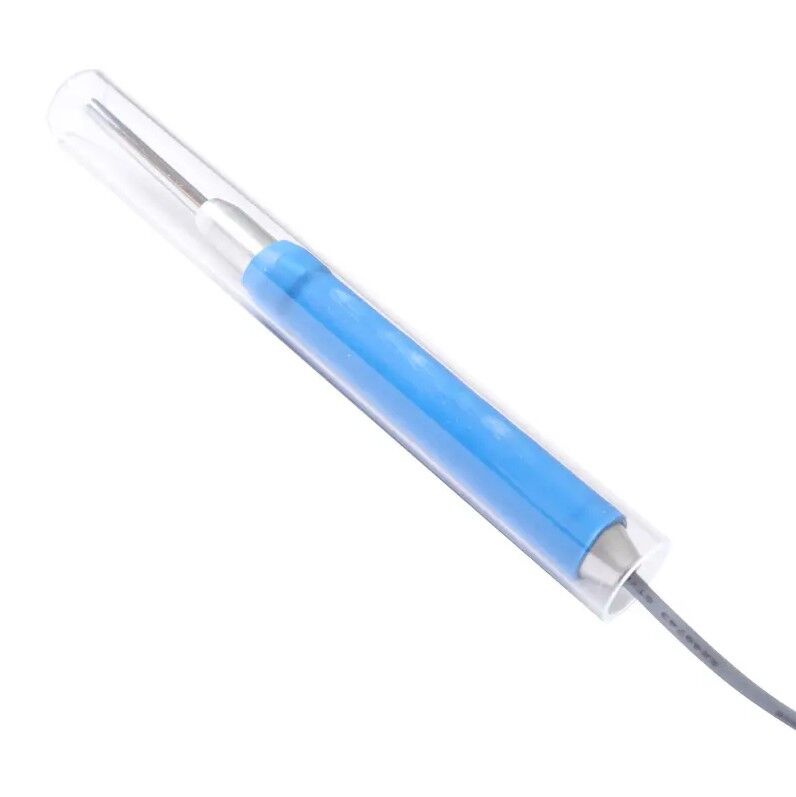

1 x Hall sensor (axial)
1 x Service bag
1 x 9V block battery
1 x Instruction manual
- EAN Code:
- 4250348722539
- Typology:
- Magnetometer
- Brand:
- PCE INSTRUMENTS
- Resolution (mm):
- 0.01 mT
- Measurements range:
- 0 - 2400 mT
