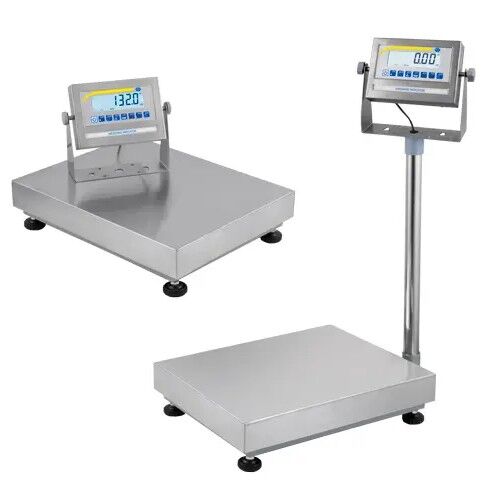

PCE Instruments PCE-EP 150P2 Dual range 60/150kg table scale, platform size 500x600mm, counting and summing function
(Incl. Tax: €502.82)
The PCE-EP 150P2 is a versatile table scale that features a dual range capacity of 60 kg and 150 kg. It comes with a platform measuring 500 x 600 mm, making it suitable for various weighing applications. Additionally, the scale includes a piece counting function and a summation feature, enhancing its utility in inventory management and repetitive weighing tasks. Its robust design ensures durability, making it ideal for both professional and industrial environments.
Perfect for industrial, logistics and commercial applications, this robust and versatile bench scale combines precision with advanced functionality in a practical design. Featuring a spacious 500x600 mm weighing platform and stainless steel construction with IP54 protection, it withstands demanding environments. The unique dual-range configuration (60/150 kg) ensures high accuracy for both medium and heavy loads, with the flexibility to freely select measurement units.
Technical specifications:
| Measuring range | Max. 1 = 60 kg / Max. 2 = 150 kg |
| Resolution | up to 60 kg = 10 g from 60 kg - 150 kg = 20 g |
| Measurement uncertainty | ± 3 d (three times the resolution) |
| Platform size [P1] | 500 x 600 mm |
| Tare function | Over the entire weighing range |
| Interface | RS-232 Bidirectional / D-SUB 9 Female Optional: - Analog output 4-20 mA 1/1000 + - 4 Potential-free outputs LO / OK / HI / Stable set as a pulse signal or continuous signal. |
| Display | LCD with 25 mm digit height |
| Units | kg / lb and freely adjustable weighing unit such as kg/m |
| Cable length to display | ca. 160 cm / plug attached |
| Power supply | 6V / 4.5Ah battery or 9 V / 1.2 A power adapter (incl.) Power consumption 70 mA |
| Protection class | IP54 |
| Working temperature | 0 - + 40 °C / 10 - 80 % r.H. |
| Weight | ca. 25.5 kg |
The scale offers comprehensive professional functions: from basic net/gross weighing to practical piece counting, from value summation to dynamic measurement with anti-oscillation filtering. Special features include container measurement mode and Peak-Hold function for maximum value detection. The removable display, connected via a 1.6 m cable, can be placed on a table, wall-mounted, or attached to the included detachable tripod.
The bidirectional RS-232 interface enables seamless integration with PCs and printers for digital data management, while dual power supply (AC and battery) ensures uninterrupted operation. Additional features include adjustable auto-shutoff, limit controls (MIN/OK/MAX), and HOLD function to freeze displayed results. The ideal solution for those seeking precision, durability and versatility in one instrument.
Features:
- Single Point platform scale (1 load cell)
- Two-range scale 60/150 kg
- Freely adjustable measuring unit kg/...
- Bidirectional RS232 interface
- Battery or mains operation
- Display IP54 protection
- Tripod incl. removable tripod mount
- Off timer (deactivated)
- Hold function (freezing the weight display)
- PEAK / MAX weighing function
- Sum function
- Piece counting function
- Animal weighing function
- Weighing function limit MIN / OK / MAX
- Container weighing function
- Filter function
Delivery scope:
1x LAB Scale PCE-EP 150P2
1x Display, Tripod incl. Bracket, Power Adapter, Manual
- EAN Code:
- 4250348716804
- Typology:
- Counting scale
- Brand:
- PCE INSTRUMENTS
- Capacity :
- 150 Kg
