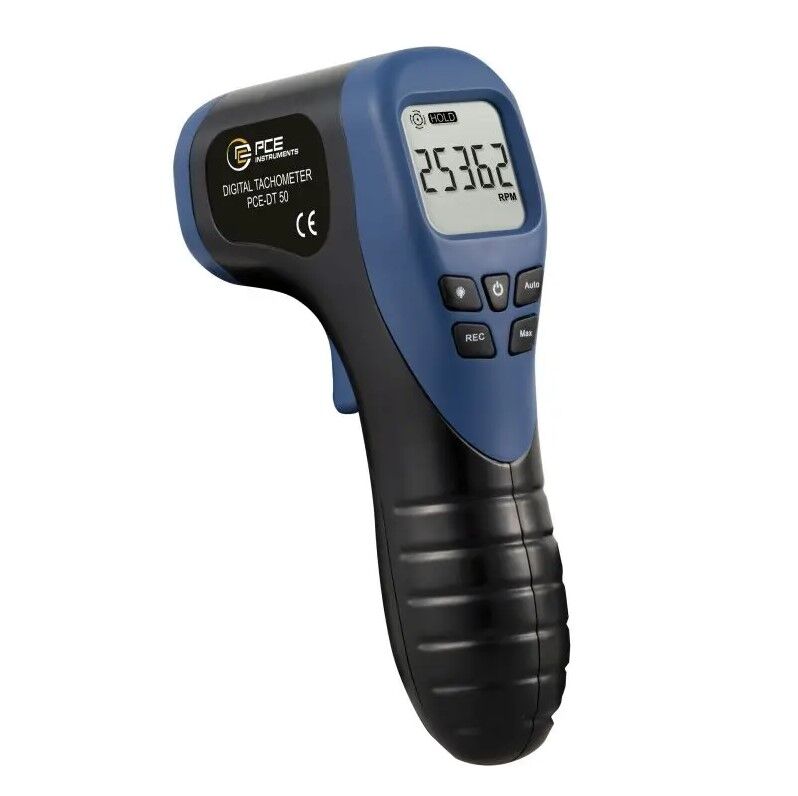

PCE Instruments PCE-DT 50 Tachometer, portable, accurate up to 99,999 rpm, with automatic mode, backlit LCD display, and Data-Hold function
In stock
SKU
PCE-DT-50
€48.40
(Incl. Tax: €59.05)
(Incl. Tax: €59.05)
The portable tachometer PCE-DT 50 is a precision device with an ergonomic gun-shaped design, ideal for immediate rpm control. It measures the rotational speed of moving objects without contact, such as shafts, transmissions, and gears, using a laser that emits a beam of light and a photo sensor that detects the contrast between light and dark in the reflected light. Measurements occur in a range from 2.5 to 99,999 rpm, with a measurement distance varying between 50 and 500 mm. The device offers two operating modes: a manual mode, where measurements occur only when the trigger is activated, and an automatic mode for continuous monitoring. Additionally, the MAX / MIN / AVG mode automatically calculates the maximum, minimum, and average values, while the backlit LCD display allows for easy reading of data. The Data-Hold function facilitates the recording of measured values, making the tachometer a versatile and practical tool for various work contexts.
Technical specifications:
| Measuring range | 2.5 - 99,999 rpm (RPM) |
| Measurement accuracy | ± 0.02% + 1 digit |
| Resolution | 2.5 - 999 rpm: 0.1 rpm |
| 1000 - 99,999 rpm: 1 rpm | |
| Measuring distance | 50 - 500 mm / 2 - 19.7 in |
| Measuring rate | 0.5s (over 120 rpm) |
| Storage | 60 individual data storage |
| Automatic shutdown | After 20 s |
| Power supply | 9V block battery |
| Operating conditions | 0 - 50°C / 32 - 122°F, 10 - 90% rh |
| Storage conditions | -10 - 60°C / 14 - 140°F, 10 - 75% rh |
| Dimensions | 145 x 90 x 35 mm / 5.7 x 3.5 x 1.4 in |
| Weight | Approx. 120 g / < 1 lb incl. battery |
The portable tachometer PCE-DT 50 represents a high-precision instrument designed for monitoring the rotational speed of various objects, such as shafts, transmissions, and gears, without the need for contact. This device can measure up to 99,999 rpm, making it ideal for applications in industrial and laboratory settings, where accurate speed measurement is crucial to ensure optimal operation of machines and processes.
Characterized by an ergonomic gun-shaped design, the tachometer allows for simple and immediate use. Its shape enables operators to perform quick and precise measurements under varying working conditions, reducing fatigue during prolonged use. The ease of use makes this tool particularly valuable in situations where frequent monitoring of rotational speed is required.
To use the tachometer, simply aim the built-in laser at the moving object. The emitted beam of light is reflected by the object and detected by an integrated photo sensor, which analyzes the contrast between light and darkness. This technology allows for precise and reliable measurements, even in complex environments. The measured value is displayed on a backlit LCD, ensuring clear and immediate reading even in low-light conditions, making the device suitable for use in various work environments.
One of the standout features of the PCE-DT 50 is its Data-Hold function, which allows the displayed value to be retained on the screen to facilitate the recording of measurements. This function is particularly useful in contexts where real-time data recording is necessary or where measurement time is critical. Furthermore, the device operates in two distinct modes: a manual mode, where measurements occur only while the trigger is pressed, and an automatic mode, where the tachometer continues to collect data without manual intervention.
The tachometer is equipped with the MAX / MIN / AVG mode, which automatically calculates the maximum, minimum, and average values of measurements. This functionality enables users to gain an overview of rpm variations over time, facilitating the identification of trends or anomalies that may require further investigation. This aspect is crucial in many applications, where constant monitoring of rotational speed is essential to prevent equipment failures or malfunctions.
Thanks to its versatility, the PCE-DT 50 is used in various sectors, including mechanical engineering, machinery maintenance, and scientific research. It is employed not only for monitoring industrial machines but also in production environments, where precision in measuring rotational speed directly impacts the quality of the final product. Moreover, the device proves useful in inspection and preventive maintenance operations, where accurate speed measurement is vital to ensure the proper functioning of equipment.
The measurement distance varies from 50 to 500 mm, making the instrument suitable for measuring small objects or in confined spaces. Thanks to its robustness and ease of use, the tachometer is designed to withstand the challenges of industrial work environments, where it may be subjected to vibrations and impacts.
Caratteristichs:
- Measuring range up to 99,999 rpm
- Automatic mode
- MIN / MAX / AVG mode
- LD display with lighting
- Data hold function
- Automatic shutdown
- Automatic mode
- MIN / MAX / AVG mode
- LD display with lighting
- Data hold function
- Automatic shutdown
Delivery scope:
1 x Tachometer PCE-DT 50
1 x 9V block battery
1 x User manual
1 x reflective tape approx. 20 cm
1 x 9V block battery
1 x User manual
1 x reflective tape approx. 20 cm
- EAN Code:
- 4250348718990
- Typology:
- Digital tachometer
- Brand:
- PCE INSTRUMENTS
