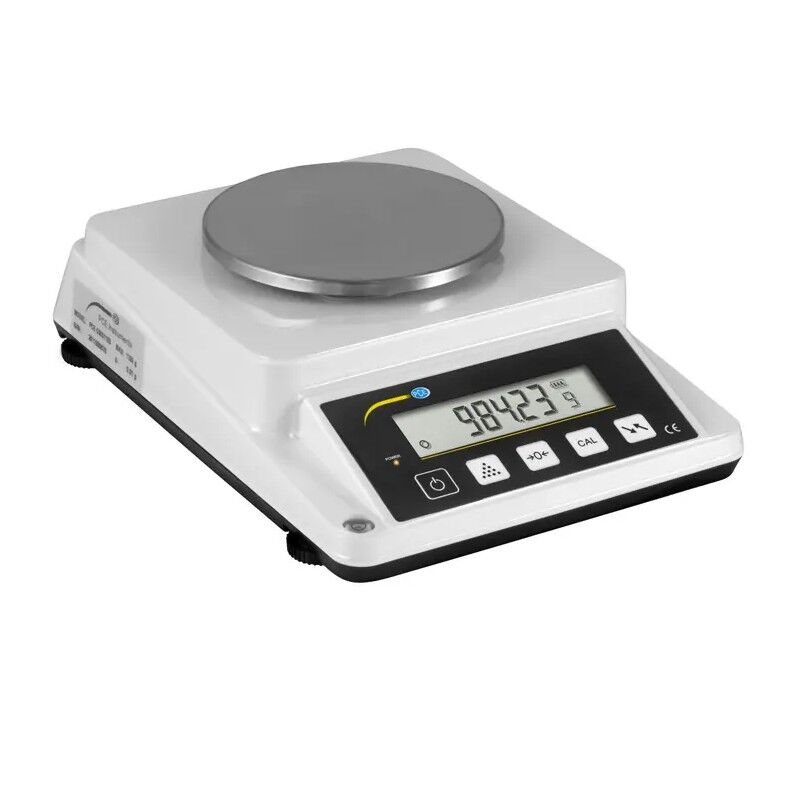

PCE Instruments PCE-DMS 1100 Bench scale with RS-232 interface, backlit display and piece-counting function for measuring paper, cardboard and fabric weights in a mobile and accurate way
(Incl. Tax: €425.90)
Bench scale designed for precise measurements in grams and for determining the weight of materials such as paper, cardboard, and fabrics. Thanks to the RS-232 interface, data can be easily transferred to a PC. The backlit display allows for optimal visibility, while the piece counting function simplifies counting operations. Powered by batteries for mobile use or an adapter for a fixed station, the scale also includes a built-in level to ensure accurate measurements. An optional sample cutter is available to ensure consistency in weight measurements.
The bench scale is a versatile instrument designed to take precise measurements in grams and is especially useful for determining the grammage of materials such as paper, cardboard, and fabrics. Thanks to the backlit display, it provides clear readings that are easy to view even in low light conditions. The piece counting function allows for quick counting of similarly sized objects, optimizing productivity in industrial settings.
Technical specifications:
| Measuring range | 0 - 1100 g / 0 - 110,000 g / m² |
| Resolution | 0.01 g / 1 g / m² |
| Repeatability | ± 0.02 g |
| Linearity | ± 0.03 g |
| Stabilization period | <3 s |
| Operating conditions | 17.5 - 22.5°C / 63.5 - 72.5°F, 85% rh non-condensing |
| Interface | Serial RS232 |
| Power supply battery | 3 x 1.5V AA |
| Power supply power supply | Primary: 100 - 240 V, 50/60 Hz |
| Secondary: 6V, 500-mA | |
| Dimensions of the support surface | 270 x 200 x 80 mm / 10.6 x 7.9 x 3.1 |
| Weight | 2 kg / 4.4 |
Equipped with an RS-232 interface, this scale enables data transfer directly to a PC, ensuring a seamless and integrated workflow. It can be powered by 1.5V AA batteries for mobile use or by an adapter for fixed applications. Additionally, an integrated level ensures that measurements remain precise even on uneven surfaces.
An optional sample cutter accessory is available to guarantee uniform and repeatable measurements of materials to be weighed. Ideal for use in production, logistics, and laboratory sectors, this scale is an indispensable tool for anyone requiring accurate and high-precision measurements.
Features:
- High precision
- Display with backlight
- RS-232 interface
- Piece counting function, weight per unit area
- Battery operation for mobile use
- Alignment of the balance with dragonfly
Delivery scope:
1 x Counting scale PCE-DMS 1100
1 x Test weight
1 x Power supply
1 x User manual
- EAN Code:
- 4250348721228
- Typology:
- Scales
- Brand:
- PCE INSTRUMENTS
- Capacity :
- 1.1 Kg
- Resolution (mm):
- 0.01gr
