Features:
- Measurement range: 30 ... 130 dB
- Functions: Leq, LAp, and LCp
- Memory for 99 values
- Frequency range: 20 ... 12,500 Hz
- Backlit display



Sound Level
Measurement Range	30 dB ... 130 dB
Resolution	0.1 dB
Accuracy	±1.5 dB of the measured value
General Technical Specifications
Functions	Lpeak, Leq
Temporal Weighting	Slow (1 s) / Fast (125 ms)
Frequency	20 ... 12,500 Hz
Frequency Weighting	A / C
Display	Backlit LCD
Display Update	3 values per second
Memory	99 values Recorded when the respective button is pressed
Microphone	Electric condenser
Auto Power Off	10 minutes
Class	2nd
Power Supply	3 x 1.5V AAA batteries
Menu Languages	English
Protection Rating	IP20
Operating Conditions	0 ... 50 °C / 10 ... 95% RH
Dimensions	177 x 60 x 35 mm
Weight	110 g

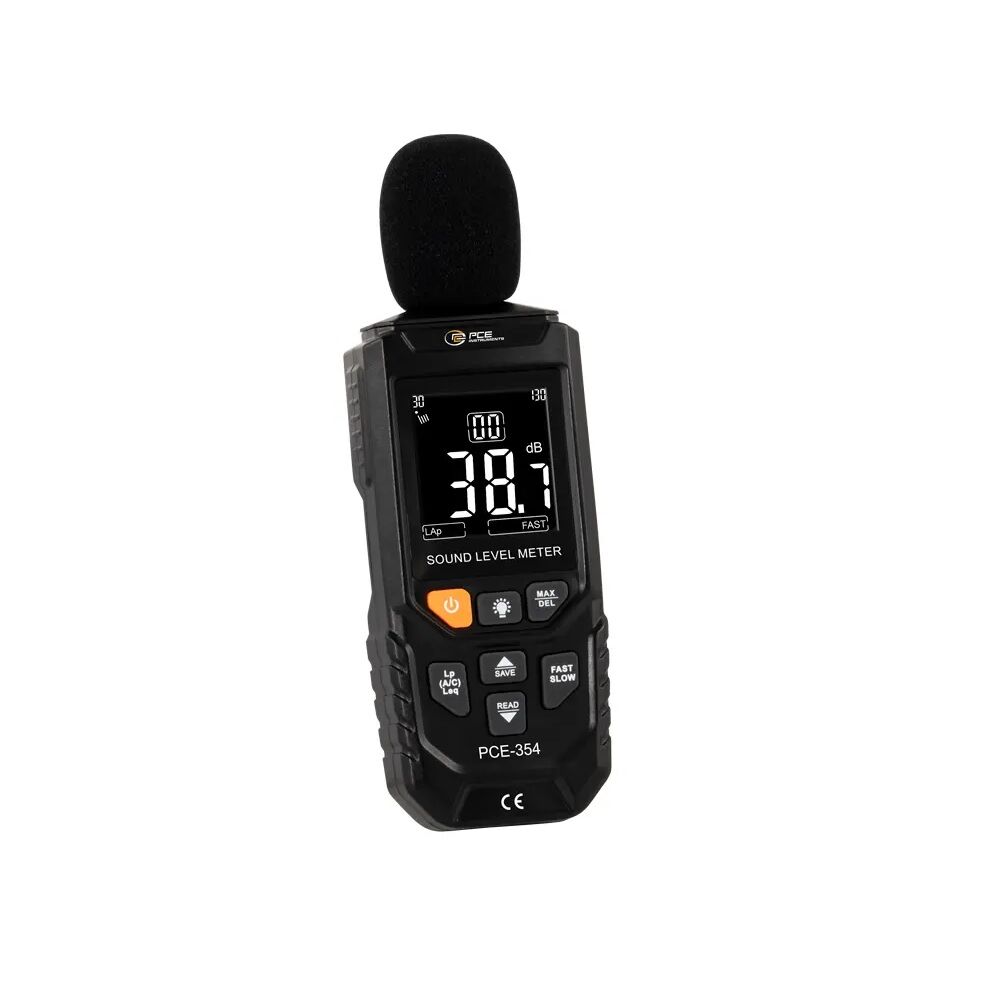

The environmental instrument is a compact, portable device with various functions, including peak measurement, Leq calculation, and adjustable measurement intervals. It features the MAX function, which allows freezing the maximum measurement value on the display, making it easier to analyze any limit exceedances. A key feature is the Leq value, which, once the measurement time is set, provides the continuous equivalent sound level, i.e., the time-weighted average of total noise exposure during the selected period.



Equipped with memory for 99 values that can be recalled on the display, the device has a backlit screen for easy reading. Additionally, the auto power-off function deactivates the instrument after 10 minutes of inactivity.



When the battery symbol appears on the display, it is necessary to replace the three 1.5 V AAA batteries. Classified as a second-class environmental instrument, it is used in workplaces to ensure acoustic protection for workers or for quick measurements of ambient noise.



1 x Environmental Instrument PCE-354
3 x 1.5 V AAA Batteries
1 x Transport Case
