OPTIMUM 057OP0013 Portable band saw for metals 1440x13x0.65 mm, model SP 13V, precise cutting and silent - Power 230 V
(Incl. Tax: €876.47)

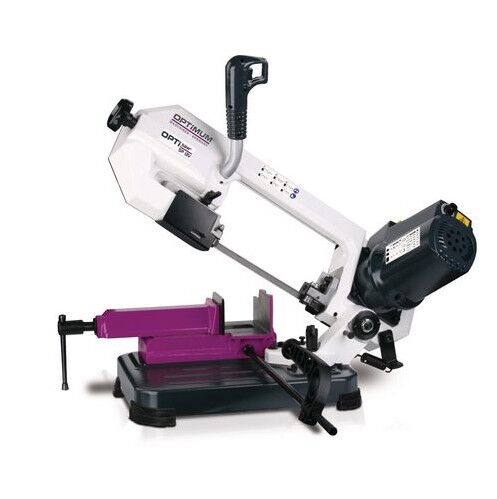

The portable band saw SP 13V is a precise and quiet machine, ideal for cutting metals. It is equipped with a guide rail on ball bearings, ensuring smooth movement of the blade and optimal cutting results. Its adjustable arm allows for angled cuts, while the adjustable material stop makes it suitable for series production. The Vario motor with electronic speed control ensures consistent performance and versatility. The transmission with hardened steel gears resists wear, while the base with non-slip feet stabilizes the machine, reducing vibrations during use.
Included:
· Bi-metal band saw blade
· Material stop limit

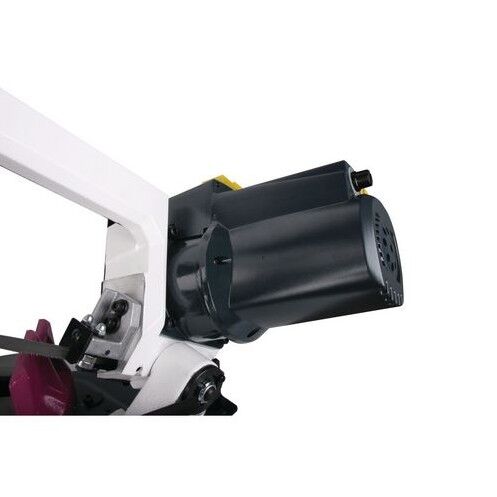

The SP 13V portable band saw is an ideal tool for professionals and craftsmen working with metals, offering precise and quiet cuts. It is primarily used in mechanical workshops, metalworking laboratories, and industrial environments where high-quality cutting is required for materials of varying thicknesses. The Vario drive motor, with its electronic speed controller, provides full control over the cutting process, perfectly adapting to different production needs.
Technical specifications:
| Motor power ~ 50 Hz | 1 kW |
| Belt speed | from 30 to 80 m/min |
| Belt dimensions | 1440x13x0.65 mm |

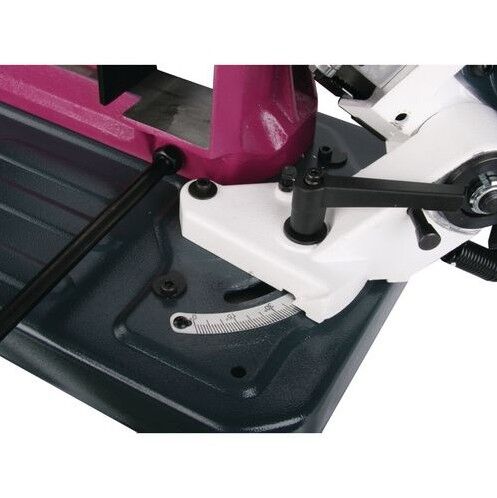

| Cutting angle | 0° - 60° |
| Length | 720 mm |
| Width without/with material stop | 300 / 650 mm |
| Height at lower/upper end position of bow | 420 / 680 mm |
| Net weight | 19,5 kg |
| Cutting capacity at 0° (round) | 125 Ø mm |
| Cutting capacity at 0° (square) | 125 mm |
| Cutting capacity at 0° (rectangular) | 125x125 mm |
| Cutting capacity at +45° (round) | 85 Ø mm |
| Cutting capacity at +45° (square) | 85 mm |
| Cutting capacity at +45° (rectangular) | 85x85 mm |
| Cutting capacity at +60° (round) | 45 Ø mm |
| Cutting capacity at +60° (square) | 45 mm |
| Cutting capacity at +60° (rectangular) | 45x45 mm |

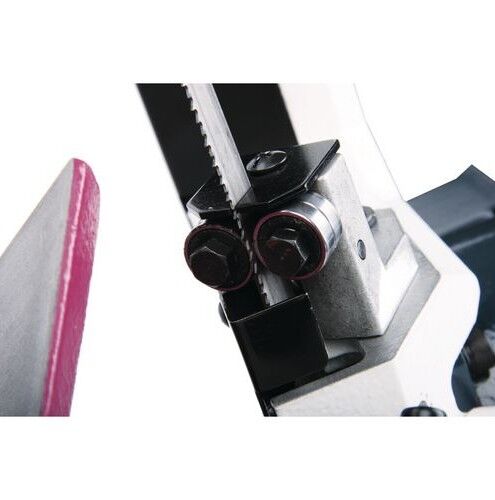

Thanks to the ball bearings mounted at two strategic points, the blade runs smoothly and precisely, reducing vibrations and contributing to both the longevity of the machine and the quality of the cut. The adjustable bow is particularly useful for angled cuts, enhancing the machine's versatility. Operators in industrial settings highly appreciate the ability to easily adjust the material stop limit for serial processing, optimizing time and efficiency when producing components.
The base design, with anti-slip feet, ensures great stability, essential for achieving perfect cuts even with more resistant materials. The machine is built to withstand wear, thanks to a gearbox equipped with tempered steel gears that not only extend the saw's lifespan but also reduce the need for maintenance. This makes it a perfect choice for those seeking a robust and reliable machine for frequent, high-quality cuts, ideal for professional operations in workshops or series productions.
- Brand:
- OPTIMUM
- Application:
- 220-240V Single-phase
- EAN Code:
- 8032819354878
- Typology:
- Band saw
- Size:
- 1440x13x0.65mm
- Power:
- 1 kW
