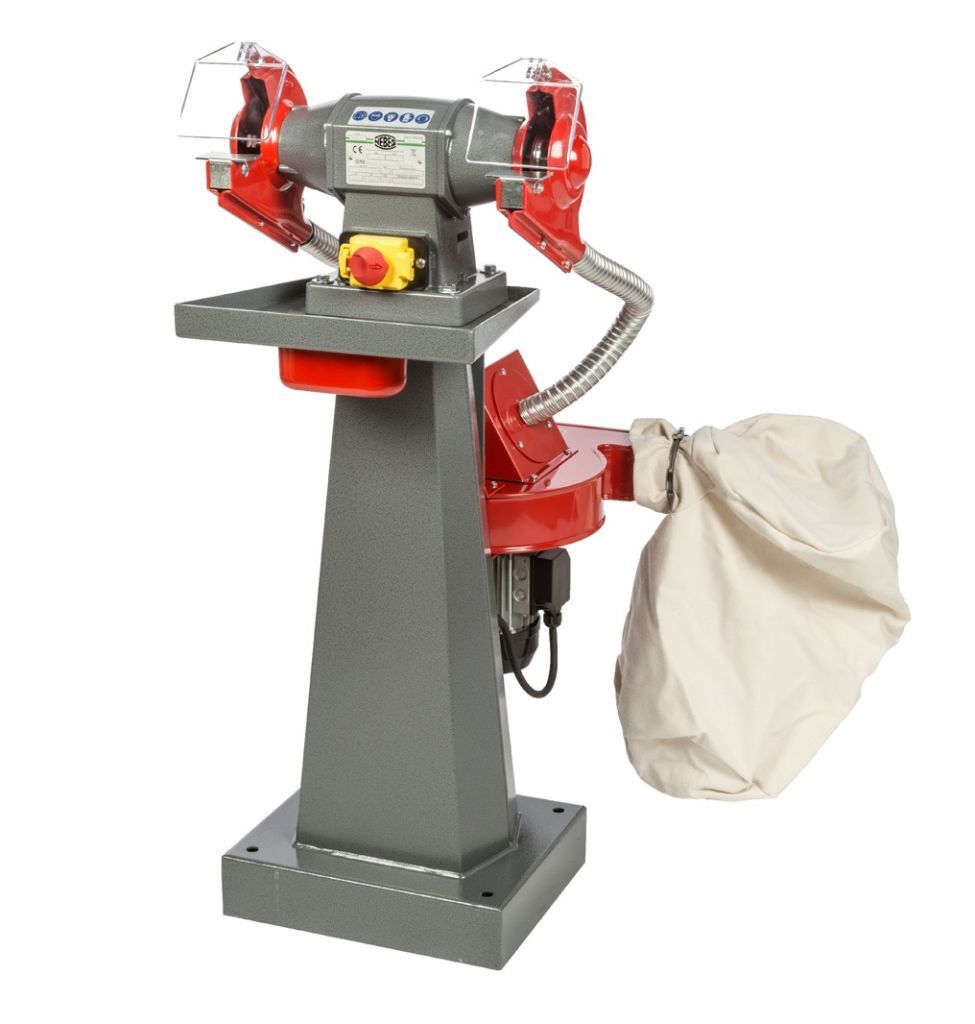

NEBES SEA-2 Alluminum bench grinders SEA Industrial Line with dust extraction and stand - Three-phase induction motor for wheels 200x25x20 mm

NEBES SEA-2 Alluminum bench grinders SEA Industrial Line with dust extraction and stand - Three-phase induction motor for wheels 200x25x20 mm

In stock
SKU
NB-SEA-2
Special Price €1,023.00 Regular Price €1,650.00
(Incl. Tax: €1,248.06)

This SEA line of Nebes bench grinders is build for industrial usage, a bimetallic thermal guard inserted internally in the copper coiling, constantly protects the motor and saves it from eventual overload guaranteeing a virtually unlimited life. All the motors are made of hi-efficiency German magnetic steels offering higher power for intensive usage. Made of die-cast aluminium, they are available with enhanced drives for professional use in medium-sized workshops.  Working in total safety. Standard equipment of base and suction system.

• Made in Italy
• Aluminium
• Central body and two caps
• Stator threaded for thermal expansion of metal in aluminium machines
• Thermal sensor to prevent overheating
• No vibrations
• 5-year warranty
• Possibility of adding inverters
• The industrial aluminium series is supplied without mounted grinding wheels.

Approximate delivery one week for assembling individual components.

All the motors in this series are made from high-efficiency, German-made magnetic laminations. These machines are all built with the same philosophy: one central body and two shells, to withstand even the strongest thrusts on the grinding wheel or brush, without any deformation of either the motor shaft or the housing.

All the grinders with 3 phases motors are connected at 400 V but can be wired at 230 V on request. On request, they can be supplied with 24 V low-voltage control - BT1 with an additional price.

HP W RPM Wheels Net weight Gross weight Dimensions
1   3~ 750 2800 200x25x20 mm 61 Kg 71 Kg 80x71x130 cm


NEBES is the only Italian company that can boast of still producing the entire range of bench grinders in Italy, following the manufacturing standards that have dictated the rules of quality for several decades. Nothing to do with imported machines or machines made in two halves, i.e. with the casing split down the middle: our master forgers still insert the stator the way it was done 50 years ago, i.e. by expansion of the metal, without the use of a single screw. The central casing is heated and when it expands by a few tenths of a millimetre due to the heat, the stator is inserted, which, once cooled, forms a single body with the central casing.

Brand:
NEBES Elettromeccanica
Application:
380-400V Three Phase, Induction motor
EAN Code:
8057017720508
Typology:
Grinder
Machine Type:
SEA-2
Size:
200x25x20mm
Power:
750 W
