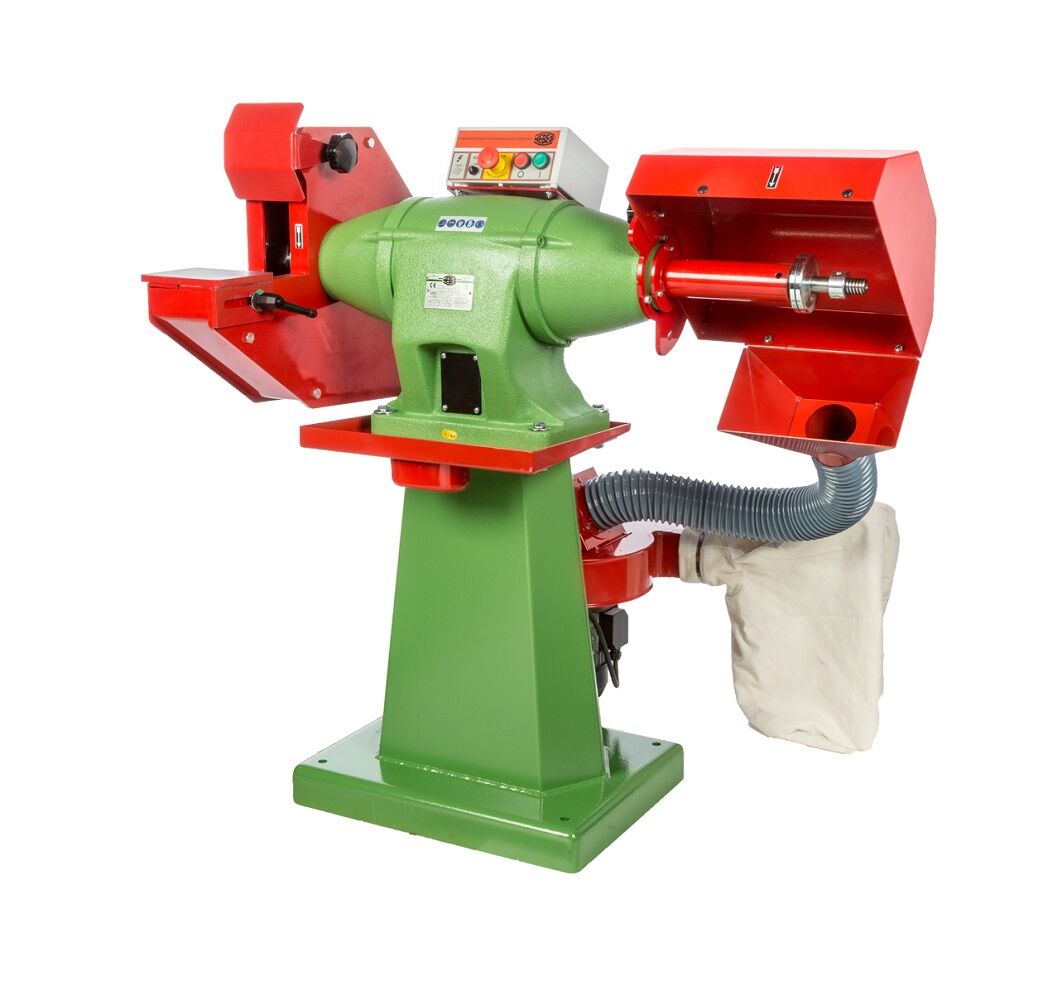

NEBES Elettromeccanica CA-6 Cast iron heavy-duty combined machine with stand, dust extractor and low voltage control, suitable for brush and grinding wheel, three-phase motor 400V
(Incl. Tax: €2,400.81)
Looking for a complete grinding center cast iron heavy-duty combined machine with unlimited power and unlimited life? CA is the answer! The strongest combined grinder and polisher for industrial applications: a powerful industrial grinder and a polisher together. On the 50 kg stand, an Italian dust extractor completes this tool: precisely what you need for a clean workshop. An Italian dust extractor with aluminum “self-cleaning” fan is assembled on the stand. Each fan we assembly is balanced via stroboscope to zero, in order to eliminate vibrations and noise. RP2 anti-fire dust bag has been designed to collect shrink and chips in order to keep the working place clean. Supplied The control low voltage (24v) consists of a control panel for complete protection of the engine or engine surge or overload, even maintaining the safety of the oforator. Over 3 Hp BT1 switch box is standard for all the CE models.
The Cast Iorn Heavy-Duty Industrial series is supplied without grinding wheels and without brushes.



| Brush Position |
HP | W | RPM | Brush mm | Whells mm | Net weight | Gross weight | Dimensions |
| DX - SX | 3,00 3~ | 2200 | 1400 | 300x35x25 | 300X40X30 | 125 Kg | 150 Kg | 80X120X130 cm |
NOTE: When ordering Combined machines, it is advisable to indicate whether you want the machine with brush on the right or left side.
Nebes combination machines are machines that allow workshops, metalworkers, body shops to have two tools in one machine. On the one hand a wheel, balanced at zero, for roughing the workpiece and on the other a brush or alternatively a cloth disc for polishing.
Above 3Hp the BT1 control is supplied as standard on all CE machines. All machines with three-phase motors are provided for 400 V voltages and 230 V on request - Single-phase versions are provided for 230 V voltages. Possibility of adding an inverter.
NEBES offers different types of machines, but they are all built with the same philosophy: one central body and two shells, to withstand even the strongest thrusts, without any deformation of the drive shaft or the housing. Our master forgers still thread the stator in the same way as was done 50 years ago: that is, by expansion of the metal, without the use of a single screw. The central body is heated by expanding by a few tenths of a millimetre due to the heat, allowing the stator to settle into its seat. Once cooled, it forms a single body with the central casing. If you focus on choosing one of our combination machines, always keep in mind what work you intend to do primarily: if polishing/brushing is the priority component in your work, then you will need to choose a machine with a higher power reserve because this type of use requires powerful motors. And because we want to spoil you, please tell us when ordering whether you want the brush on the right or left side and we will be happy to satisfy you as best we can. It is a service that only Nebes can offer you.
- Brand:
- NEBES Elettromeccanica
- Application:
- 380-400V Three Phase, Induction motor
- EAN Code:
- 8057017721185
- Typology:
- Combined
- Machine Type:
- CA-6
- Power:
- 2.2 kW
