Measuring range PM2.5	0 - 500 μg / m³
Resolution	1 μg / m³
Accuracy	<100 μg / m³: ± (10 μg / m³ + 10 digits)
	<400 μg / m³: ± (10 μg / m³ + 30 digits)
	>400 μg / m³: ± (10 μg / m³ + 50 digits)
Measuring range temperature	-10 - 50°C / 14 - 122°F
Resolution	0.1°C / 0.18°F
Accuracy	± 1°C / 1.8°F
Measuring range humidity	0 - 99% rh
Resolution	1% rh
Accuracy	30 - 80% RH: ± 5% RH
Display	LC display
Backlight	White (standard)
	Red (alarm)
Battery indicator	Four-level display
Automatic shutdown	After 2 h
Power supply	3.7V Li-ion battery
	Micro USB
Operating conditions	0 - 50°C / 32 - 122°F, 0 - 85% rh
Storage conditions	-20 - 60°C / -4 - 140°F, 0 - 95% rh
Weight	195 g / < 1 lb
Dimensions	75 x 55 x 130 mm / 3 x 2.2 x 5 in

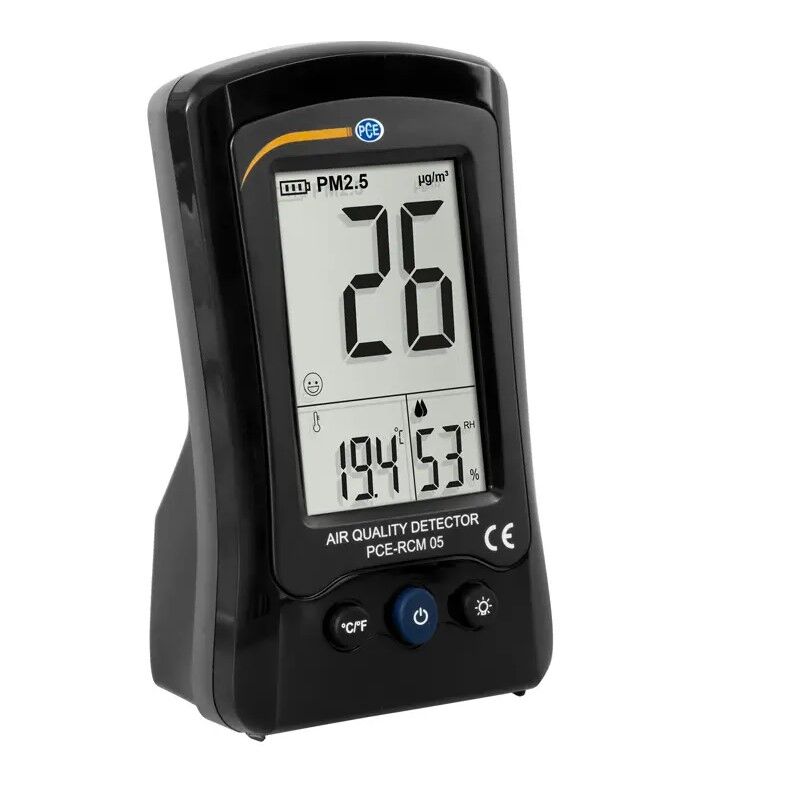

The PM2.5 particle counter is a precision instrument designed for the continuous monitoring of PM2.5 particle concentration in work environments and enclosed spaces. PM2.5 particles, with a diameter of less than 2.5 micrometers, are among the most hazardous to human health, as they can penetrate deep into the lungs and, in some cases, the circulatory system. This counter is essential for preventing risks related to exposure to these particles, also providing measurements of additional parameters such as ambient temperature and relative humidity, which are crucial for a comprehensive analysis of environmental conditions.



Equipped with an easy-to-read backlit LCD display, the counter allows constant and visible monitoring from any angle. The measurement range for PM2.5 particles varies from 0 to 500 μg/m³, ensuring broad coverage of typical environmental situations in industrial and civil settings. The display of air quality status occurs through a pictogram that updates in real-time, providing immediate visual feedback on pollution levels. This functionality is particularly useful in situations where air conditions change rapidly or where timely intervention is necessary to protect operator health.



Another fundamental feature is the backlighting of the display, which not only ensures clear reading even in poorly lit environments but also changes color (from white to red) when PM2.5 limits are exceeded, activating an immediate visual alarm. This rapid alert function allows for prompt action to reduce the risk of prolonged exposure to harmful particles.



The device is powered by a rechargeable battery, making it perfectly portable and suitable for use in a variety of work environments, including those without immediate access to fixed power sources. Charging occurs through a convenient micro USB port, providing flexibility and speed in ensuring the continuous operation of the instrument. The long battery life also allows the counter to be used in prolonged monitoring situations without the need for frequent recharges, improving operational efficiency.



The PM2.5 particle counter finds numerous applications across various sectors, including manufacturing, building management, public spaces, research laboratories, and healthcare environments such as hospitals and clinics. It is particularly used to monitor air quality in enclosed spaces where industrial activities, such as welding, grinding, or painting, can produce fine particles. It is also useful for assessing air quality in environments like offices and schools, where inadequate ventilation can increase the concentration of pollutant particles.



Another important area of application is air quality management in urban areas and public spaces. With growing attention to environmental issues and public health, this tool proves indispensable for real-time monitoring of air pollution levels, providing valuable data for strategic decisions regarding the improvement of working conditions and quality of life.



Using the PM2.5 particle counter significantly reduces risks associated with prolonged exposure to harmful particles, while ensuring that environmental conditions comply with safety and health standards established by current regulations. Thanks to its advanced technology and ease of use, the device is a valuable ally for companies wishing to ensure a safe and healthy working environment, while also improving productivity and reducing the incidence of pollution-related illnesses.



In summary, the PM2.5 particle counter represents a highly efficient and technologically advanced solution for managing air quality in enclosed and industrial environments. Its ability to accurately and promptly detect PM2.5 particle concentrations, coupled with the measurement of critical parameters such as temperature and humidity, makes it an essential tool for anyone committed to improving the safety and salubrity of working environments.



- PM2.5 fine dust measurement
- Temperature and humidity display
- Illuminated LCD with alarm
- Pictograms indicate air quality
- Battery operation
- Micro USB for charging



1 x Thermometer PCE-RCM 05
1 x Micro USB cable
1 x User manual
