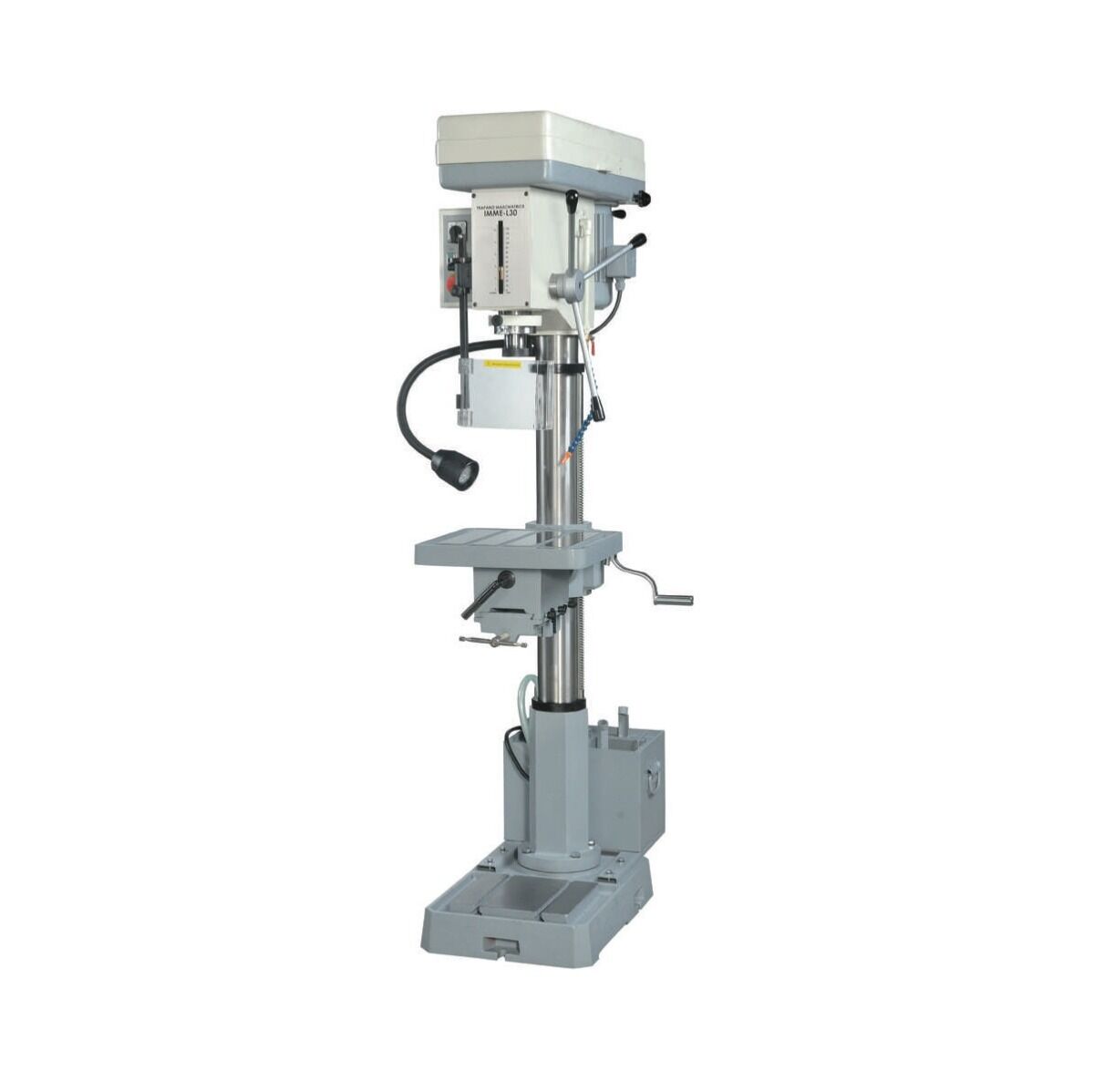

IM-Export IMME-L20 Drilling / Tapping machines LTF with drilling and tapping capacity diameter 20mm, quill stroke 90mm and power 0,375/0,75kW
In stock
SKU
IMX-IMME-L20
Special Price
€3,446.75
Regular Price
€4,055.00
(Incl. Tax: €4,205.04)
(Incl. Tax: €4,205.04)
Drilling and tapping machines with automatic rotation reverse control, ideal for professional work. Equipped with 24V LED lamp, ground and swivelling work table, complete with vice included, and coolant system with coolant recovery tank.
| Drilling capacity in steel 40 daN/mm2 | 20mm |
| Tapping capacity in steel 40 daN/mm2 | 12M |
| Spindle taper | 3CM |
| Quill stroke | 90mm |
| Spindle speed | 18n. |
| Spindle speed | 130÷2.200 rpm |
| Column Ø | 80mm |
| Quill Ø | 52mm |
| Worktable dimensions | 300x300mm |
| Base dimensions | 520x320mm |
| Min table/spindle distance | 115mm |
| Max table/spindle distance | 710mm |
| Base/spindle distance | 1.250mm |
| Column/spindle distance | 185mm |
| Three-phase motor (50 Hz – 400V) | 0,375/0,75kW |
| Overall height | 1.680mm |
| Weight | 180kg |
- Brand:
- IM-Export
- Application:
- 380-400V Three Phase
- EAN Code:
- 8032819375217
- Typology:
- Drilling and tapping
- Power:
- 350 / 750 W
