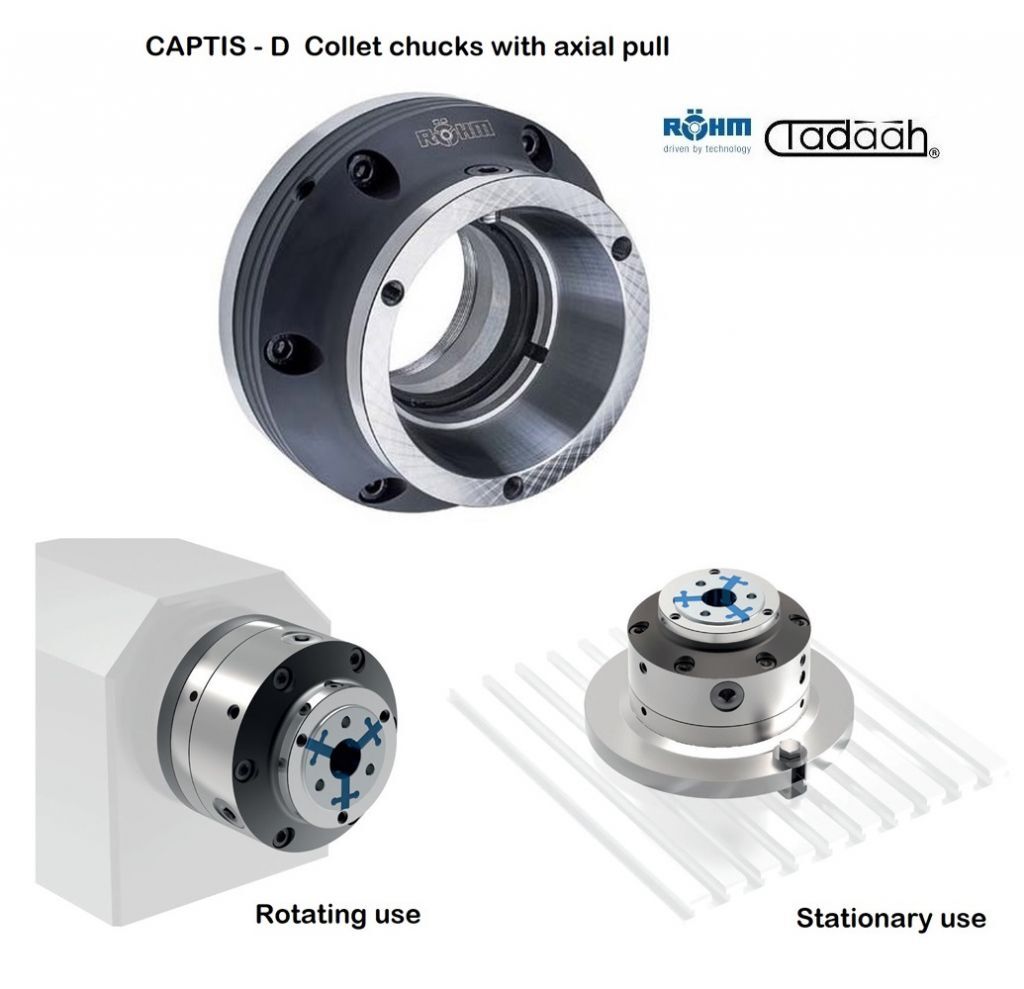

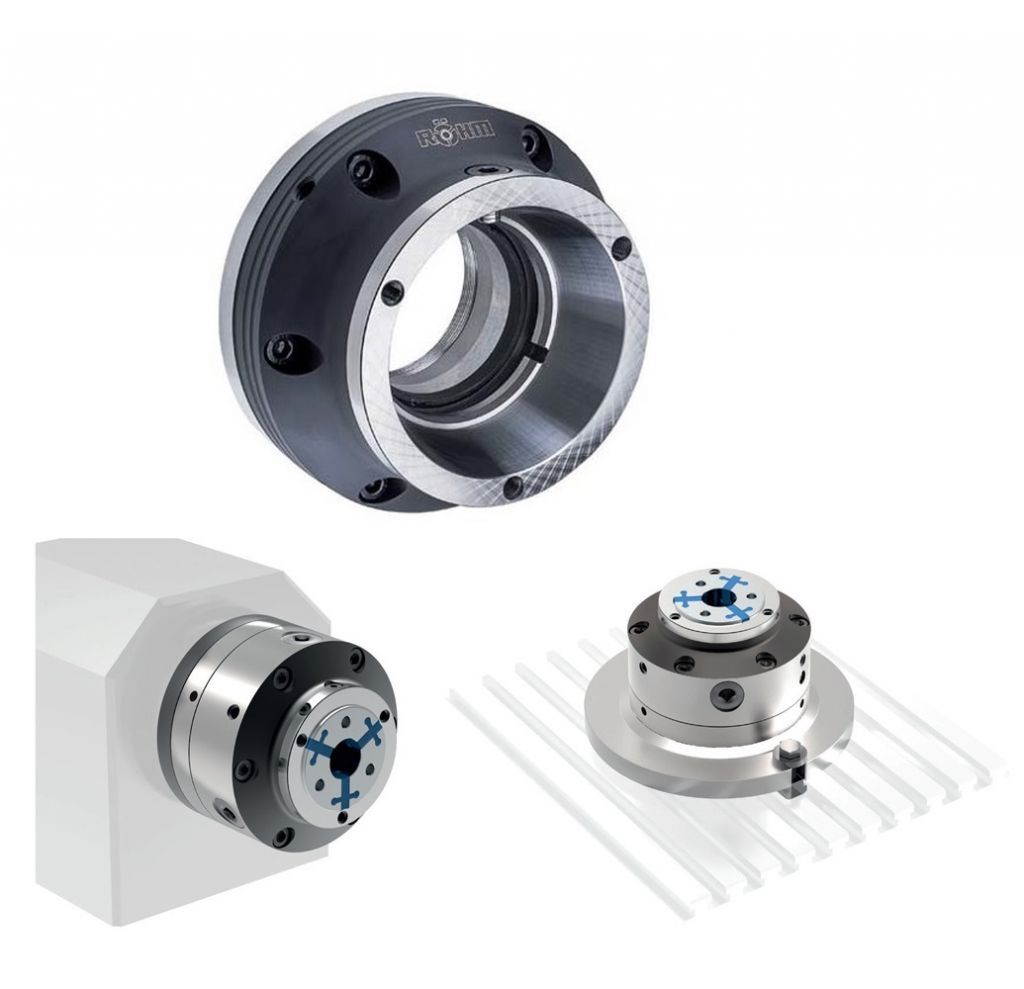

Collet chuck CAPTIS-D with axial pull, suitable for collet Röhm CAPTIS
(Incl. Tax: €1,281.00)
Modular construction for highest flexibility
Compact construction for more work space
Many combination and conversion possibilities
The new and modular CAPTIS clamping system is impressive in both rotary applications in lathes and in stationary use in drilling, milling and machining centres and measuring machines. The conversion from outer to inner clamping can be done in less than 1 minute with the innovative and patent-pending quick changing function. The encompassing clamping enables precise concentricity and repeatability of 0,005 mm without deforming the workpiece.
APPLICATION
For use on lathes.
Ideal for bars and pipe machining on the main spindle.
TYPE
Force-actuated.
With through-hole for bar and pipe machining.
With axial tension.
CUSTOMER BENEFITS
- Maximum flexibility thanks to modular design and versatile combination and
retrofitting options - Low weight and low height thanks to compact design for more work area in the machine
- Short setup and non-productive times thanks to fast collect chuck change as
well as great expansion of the collet chucks
Fast retrofitting from external to internal clamping thanks to optionally available
segment clamping mandrel ABSIS-C
TECHNICAL FEATURES
- Manual lubrication
- Collet chucks with exchangeable and oil-resistant vulcanized rubber
Brand | ROEHM |
---|---|
Typology | Accessories for spindle |
