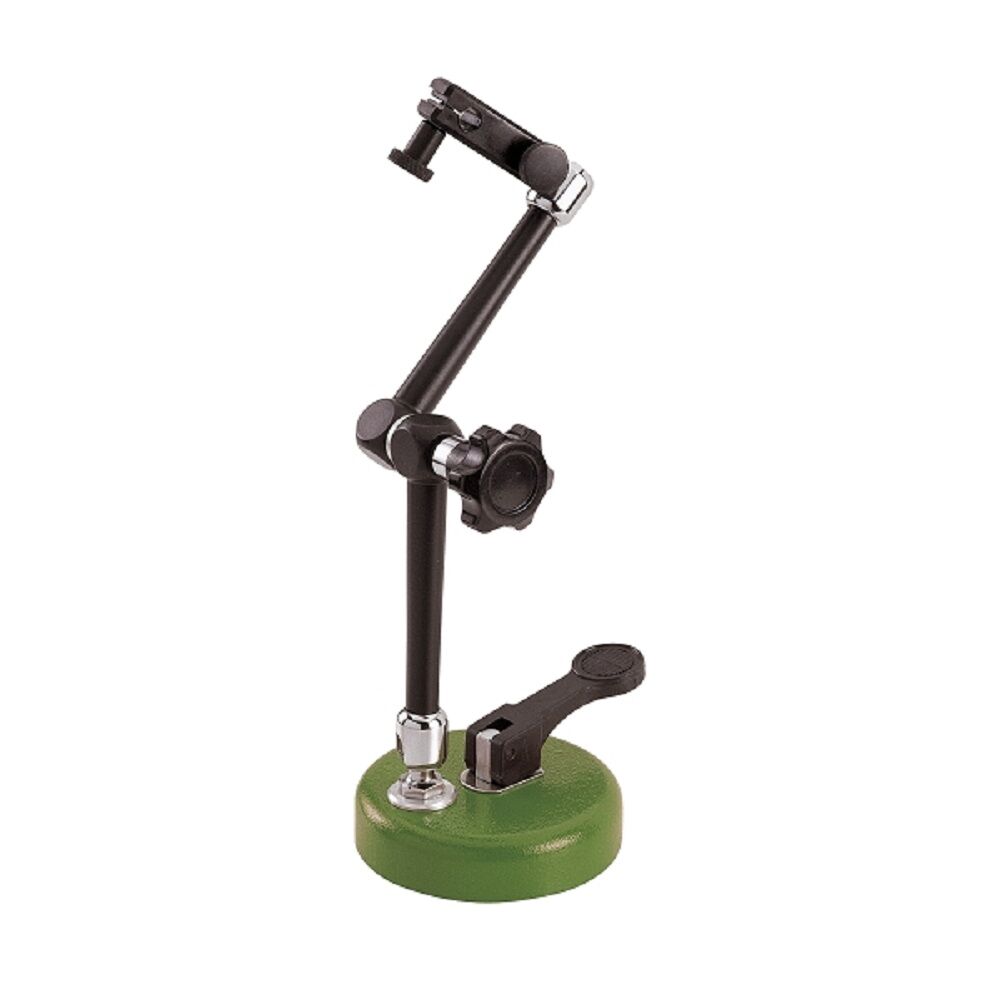

The LTF AC/MP universal suction base dial indicator stand is designed for dimensional inspection and geometric verification on non-magnetic surfaces, making it an ideal solution for use with Ø8 mm stem analog dial indicators in industrial and metrology environments. Thanks to its suction system, it enables reliable measurements on granite, aluminum, brass, stainless steel and plastic surfaces.

The base features a Ø92 × 22 mm suction cup with a holding force up to 400 N (40 kg), ensuring stable and secure fixation on smooth and flat surfaces. This allows accurate checking of flatness, concentricity, parallelism and form errors where traditional magnetic bases cannot be used.

The stand includes a fully articulated arm, providing excellent flexibility in positioning the measuring instrument. The 290 mm arm length and 290 mm working radius allow easy access to complex measurement points.

A fine micrometric adjustment system enables extremely precise positioning of the dial indicator relative to the measured surface. This feature improves alignment, zeroing and measurement repeatability, making it ideal for detecting transmission play, dimensional variations and geometric deviations.

The ergonomic design and ease of use make this stand highly versatile for applications in quality control, industrial maintenance, automotive and precision machining.

Thanks to the combination of suction fixing system, micrometric adjustment and articulated arm, this base is an essential tool for technicians, engineers and industrial professionals, extending measurement capabilities to non-magnetic surfaces.
