BORLETTI A1 Analog dial microtest millesimal dial indicator with 0.1mm measuring range, 0.001mm resolution
(Incl. Tax: €500.03)
The BORLETTI A1 Analog dial microtest millesimal dial indicator features a measuring range of 0.1mm with a resolution of 0.001mm. It is designed for precision measurements in various applications, offering clear and accurate readings through its analog dial display. Ideal for fine adjustments and detailed inspections, this tool is essential for professionals seeking high accuracy in their measurements.
Accuracy according to DIN 879

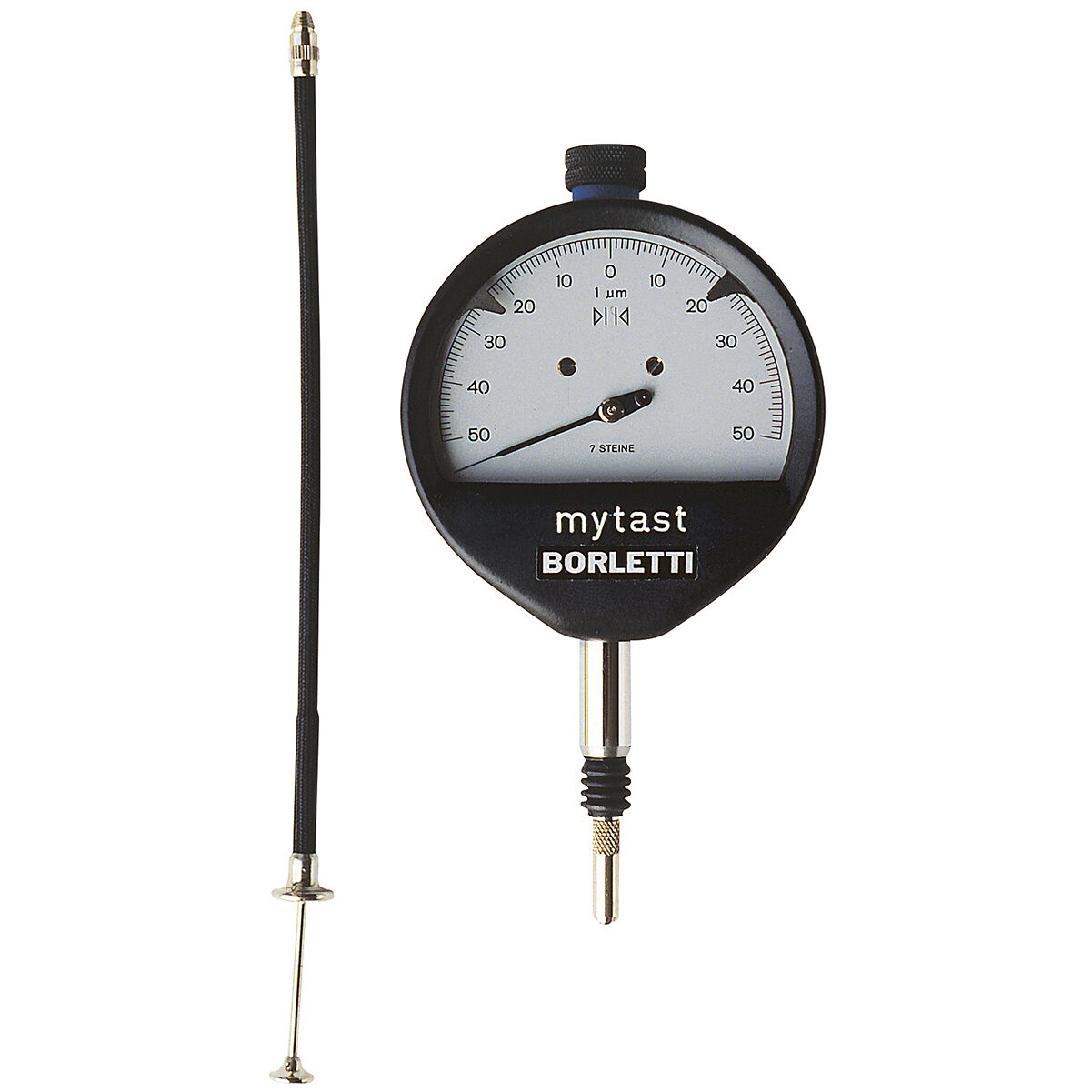

The "Microtest" dial indicator with a 0.1 mm travel represents the pinnacle of precision measurement. Its symmetrical dial with a ±50 μm scale and convenient zero-setting button on top provide instant, easy-to-read measurements. The innovative three-ball guide system ensures perfectly smooth movement, virtually eliminating friction and mechanical play.
Features:

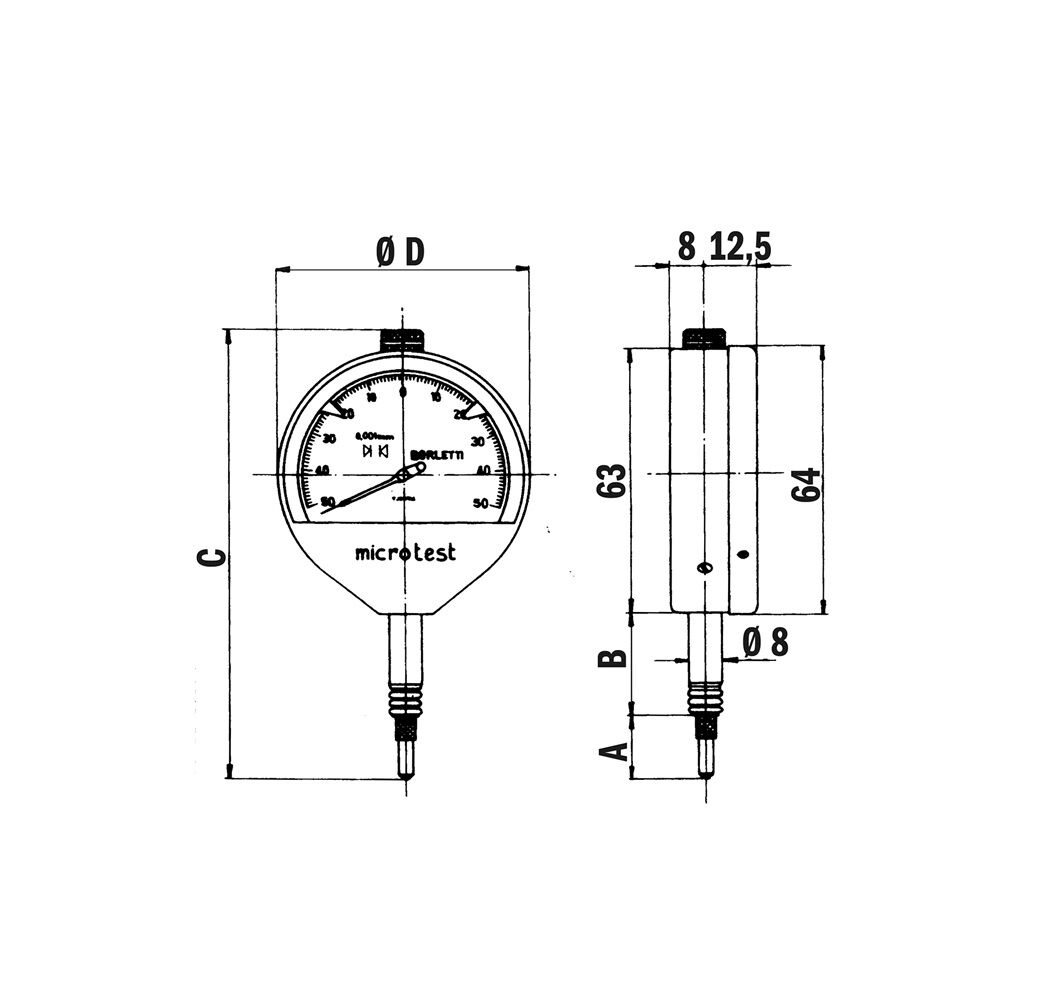

| Measuring range | 0.1mm |
| Resolution | 0.001mm |
| Dial reading | ± 0.05mm |
| Ø D | 61mm |
| A | 16mm |
| B | 25mm |
| C | 115mm |
| Repeatability | 0.2μm |
| Inversion error | 0.4μm |
| Max. measuring force | 1.2 N |
Inside, the sophisticated lever and gear mechanism, mounted on jewel bearings, guarantees absolute precision and exceptional durability. Measuring pressure remains constant across the entire range, while the balanced, low-inertia pointer enables fast and stable readings.
Ideal for high-precision applications, it is equally suited for quality control labs (used with universal stands and bore gauges) and workshop environments (for multi-check fixtures). Complete with a lifting lever, this instrument combines maximum reliability with an outstanding 0.001 mm resolution and direct ±0.05 mm dial reading. The 1.2 N maximum measuring force ensures optimal balance between sensitivity and operational robustness.
- Brand:
- BORLETTI
- EAN Code:
- 8032819126369
- Typology:
- Analog
- Measurements range:
- 0.1 mm
- Resolution (mm):
- 0.001 mm
